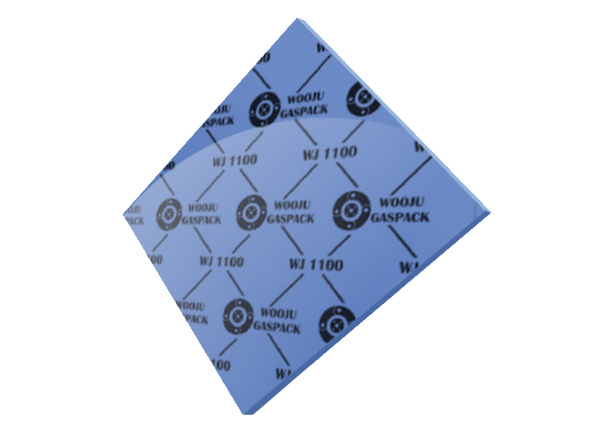

Gioăng WOOJU

Wj 1100 - Gioăng Không Amiăng

Giá: Liên hệ

  • Model: Wj 1100
  • Gioăng Không Amiăng

    Model: Wj 1100

    Wj 1100





    Wj 1100

    Material

    Aramid Fibre, Mineral Fibre & Inorganic Fiber + NBR Binder (ANTI-STICK)

    Characteristic

    Suitable for oil resistance gasket material for medium to higher loading, good resistance to water gases, oils & fuels. PTFE coating on both sides of the sheet provides excellent anti-stick performance. A standard sealing material used in compressors, pipelines, apparatus, transmission, gas meters and internal combustion engines.

    Technical Specifications

    Properties Test Method Unit Specified Value
    Density   gm/cm3 1.70-2.00
    Tensile Strength
    (a)ACC to ASTM F152
    (Across Grain)
      N/mm2 10 Min.
    (b)ACC to DIN 52910
    (Across Grain)
      N/mm2 70 Min.
    Compressibility ASTM F36A % 7-15
    Recovery ASTM F36A % > 50
    Fluid Absorption
    (a) In ASTM Oil No.3 ASTM F146
    Increase in Mass % < 10
    Increase in Thickness % < 10
    (b) In Fuel B ASTM F146
    Increase in Mass % < 10
    Increase in Thicknes % < 10
    (c) In Water/Antifreeze ASTM F146
    Increase in Mass % < 10
    Increase in Thickness % < 5
    Ignition Loss DIN 52911 % < 36
    Sealability against Nitrogen DIN 3535 cm3/min -
    Stress Resistance
    16h 300℃ DIN 52913 N/mm2 ~20
    16h 175℃ DIN 52913 N/mm2 ~30
    Max. Peak Temperature   400
    Max. Continuous Temperature   250
    Max. Operating Pressure   Kg/cm2 100
