SWISSFLUID Valves

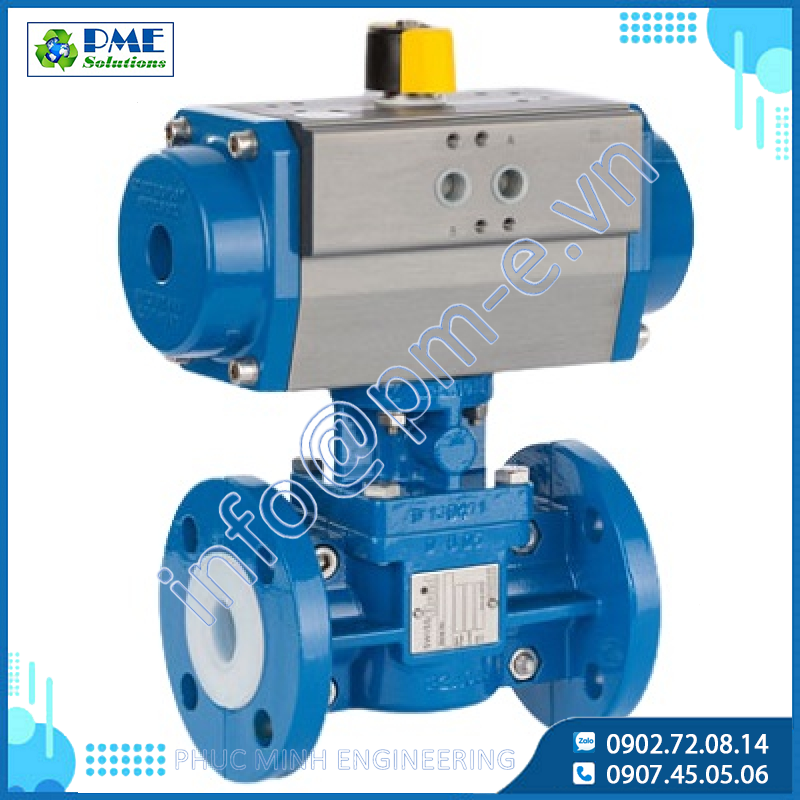

SCP - Cylindrical Plug Valves Swissfluid

Price: Contact

  • Model: SCP
  •

    Download Brochures

    pdf Process Valves and Automation



  • Trademark: SWISSFLUID
  • Origin: Switzerland
  • Cylindrical Plug Valves SCP Swissfluid

    Fully lined process valves for shut-off or throttling of corrosive, abrasive liquid or gaseous media.


    Main features

    • Two-piece body made of cast steel, top entry
    • Dynamic, maintenance-free shaft sealing acc. to TA-Luft
    • Cavity-free design, low torque, full port
    • One-piece cylinder/shaft, blow out proof, core of SS Duplex
    • Rated breaking point outside of valve
    • Cylinder options such as V-port, with pressure relief hole
    • Easy maintenance at severe service conditions
    • ISO top flange for direct mounting of pneumatic quarter turn actuators



    Technical data

    Version DIN / ISO ANSI
    Sizes



    DN15 – DN100
    full port


    ½" – 2"
    full port
    3" – 6"
    reduced port
    Flanges

    EN 1092-1 B1
    PN16
    ASME B16.5 RF
    ANSI 150lbs
    Face to face EN 558-1 series 1 ASME B16.10
    Body Cast steel 1.0619 ASTM A216 WCB
    Lining PFA, PFA-AS (conductive)
    Cylinder PFA, PFA-AS-encapsulated (conductive)
    Operating conditions (depending on material selection)
    Pressure up to 16 bar
    Temperature -40°C up to +200°C




    Options

    Body Stainless steel casting 1.4408 AISI 316 CF-8M
    Cylinder PVDF, ETFE, SS Duplex solid, Titanium Grade 2, Hastelloy C, V-Port
    Handlever Padlock
