Steam Trap

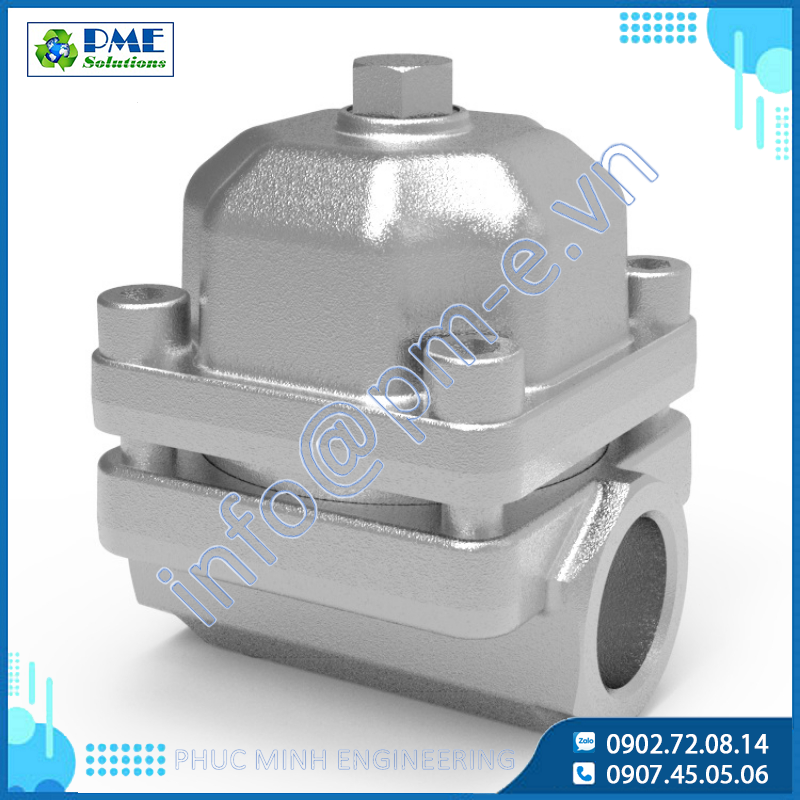

TK 1 Steam Trap Screwed

Price: Contact

  • Model: TK 1
  • Trademark: SAMYANG
  • TK 1 Steam Trap Screwed

    With in-built device to prevent corrosion, TK1 Steam Trap does not get effected by water
    hammer. It also includes strainer, check valve and auto-discharge functions. It can be
    installed both vertically and horizontally. It is functional in high pressure and bi-metal
    temperature adjustment plate can be adjusted with adjusting screw. It can also adjust
    condensate discharging level and temperature. This steam trap is ideal for superheated
    steam pipelines.

    Specification:

    • Type: TK 1
    • Size: 15 (1/5 “) ~ 25 (1”)
    • Maximum permissible pressure: 40bar
    • Maximum operational pressure: 32bar
    • Maximum applied temperature: 250℃
    • Differential pressure: 22bar
    • Connection: screwed, socket weld
      • Screwed: NPT acc. to ANSI B1 20.1 or BSP acc. to BS 21
      • Socket Weld: ANSI B 16.11
    • Material:
      • Body: STS
      • Disc, Seat: STS

    ▶ Install a strainer (80 MESH or more) at the front end when installing the valve.
