Manual valve

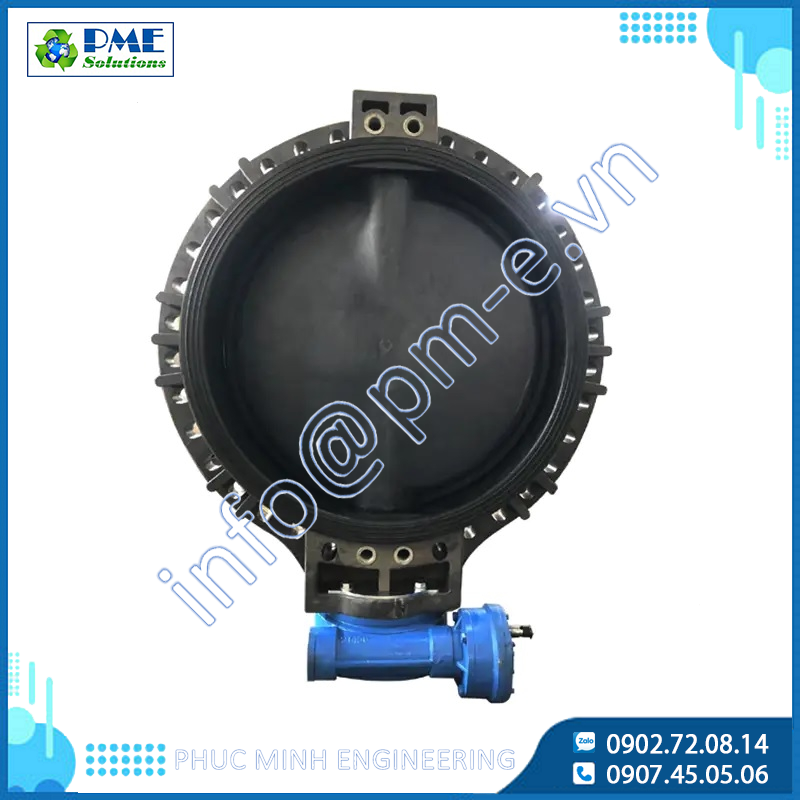

Baodi Super Large Butterfly Valve

Price: Contact

  • Model:
  • Features:

    ● Extended the disc and seat variation (FRPP, PPH, PVDF Disc and EPDM or FKM) Seat ensure excellent corrosion resistance

    ● Optimized valve design allows for weight of 1/6 compared to iron Butterfly Valve, easy to install and replace.

    ● Plastic valve can have a longer service life than metal valves for its excellent corrosion resistance, lower weight reduces pipeline costs. It can replace metal valves under many working conditions.

    ● The diameter of the valve stem is the same as that of the metal valve, the thickness of the disc valve body is thick, and the strength is high

    Baodi Super Large Butterfly Valve

    Details

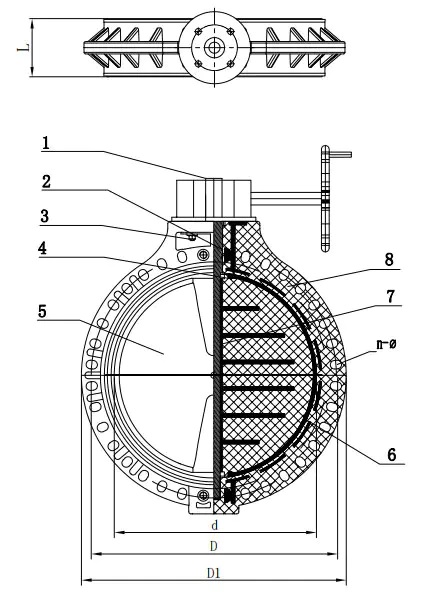

    Parts & Material

    No.

    Parts

    Materials

    1

    Gear box

    Cast iron, aluminum alloy, plastic

    2

    Stem O-ring

    EPDM,FPM

    3

    Stud Bolt & Nut

    Steel&plastic nuts, stainless steel

    4

    Disc O-ring

    EPDM,FPM

    5

    Disc

    FRPP,PPH,UPVC,CPVC,PVDF

    6

    Seat

    EPDM,FPM

    7

    Stem

    Steel, stainless steel

    8

    Body

    FRPP,PPH

    Dimensions Table(mm)

    DN

    d

    D

    D1

    L

    n

    Working pressure(Mpa)

    GB/DIN

    JIS

    ANSI

    GB/DIN

    JIS

    ANSI

    700

    676

    840

    840

    864*

    925

    200

    24

    24

    28*

    0.2

    800

    771

    950

    950*

    978*

    1060

    240

    24

    28*

    28*

    0.2

    900*

    870

    1050

    1050

    1086

    1170

    240

    28

    28

    32

    0.2

    1000

    970

    1160

    1160

    1200

    1290

    300

    28

    28

    36

    0.2

    1200*

    1170

    1380

    1380

    1422

    1510

    300

    32

    32

    44

    0.2

    Products marked with * are out of stock, please contact us in advance
