BAODI Equipment

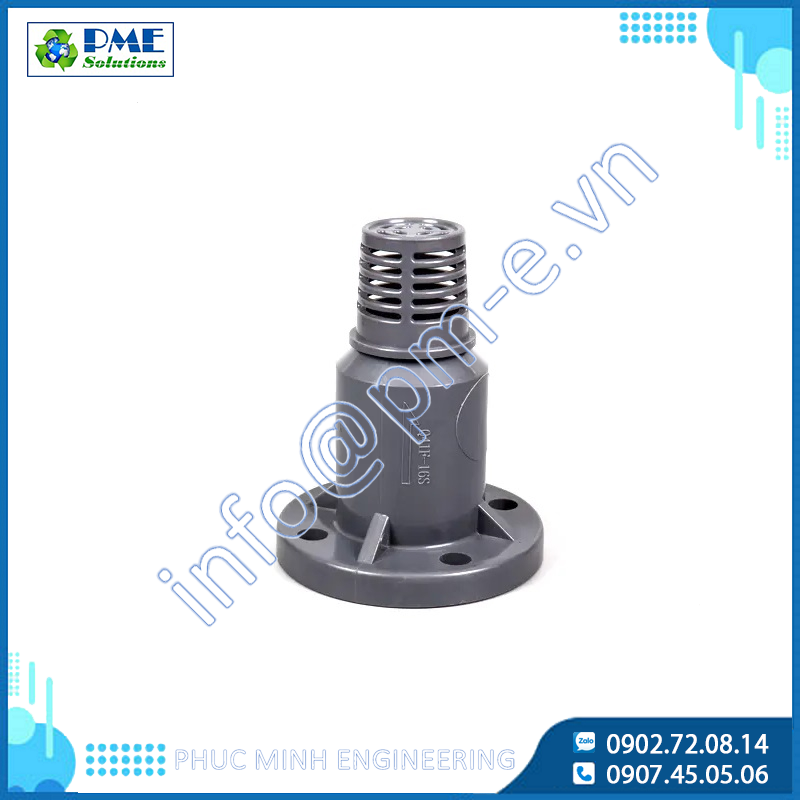

H41F-10S - UPVC BOTTOM VALVE FOOT VALVE

Price: Contact

  • Model: H41F-10S
  • Trademark: BAODI
  • Origin: China
    • Project details Download Catalogue Evaluate

    UPVC BOTTOM VALVE FOOT VALVE

    • Transport Package: Carton
    • Specification: 1/2"-12"
    • Trademark: BAODI
    • Origin: China
    • Color: Grey
    • End connection: Flange, Threaded, Socket
    • Model NO.: H41F-10S
    • Standard: JIS, DIN, ANSI
    • Material: UPVC
    • HS Code: 8481804090
    • Working pressure: 0.4~0.6MPa.
    • Pressure Rating: PN10
    • Size: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8", 10"
    • Applications: chemicals,petroleum,chlor-alkali,smelting,pharmacy,dyeing,food,electroplating,environment,purified water,waste water.



    UPVC BOTTOM VALVE FOOT VALVE DETAILS


    The flange、the screwtop check valve specification

    The datas are updating. Please contact our sales for more details

    DN

    Flangetypesize

    Screwtop typesize


    Mpa Working
    Pressure

    D2

    D1

    L

    T

    N- Φ

    ZG

    L

    LI

    15

    95

    65

    168

    14

    4-14

    1/2"

    140

    15

    0.6

    20

    105

    75

    182

    14

    4-14

    3/4"

    168

    17

    0.6

    25

    115

    85

    196

    16

    4-14

    1"

    189

    20

    0.6

    32

    135

    100

    224

    17

    4-18

    11/ 4"

    210

    23

    0.6

    40

    145

    110

    224

    18

    4-18

    11/2"

    138

    25

    0.6

    50

    160

    125

    252

    20

    4-18

    2U

    280

    28

    0.6

    65

    180

    140

    308

    22

    4-18

    21/2"

    301

    32

    0.6

    ※80

    195

    160

    350

    25

    8-18

    3"

    371

    32

    0.6

    100

    215

    180

    392

    25

    8-18

    4"

    504

    45

    0.6

    125

    245

    210

    448

    30

    8-18







    0.5

    150

    280

    240

    504

    30

    8-23







    0.4
    200 335 295 560 35 8-23       0.4

    250

    395

    350

    620

    38

    12-23











    Receive insert the check valve specification

    The datas are updating. Please contact our sales for more details

    DN

    Receives inserts the type size(mm)

    Mpa
    Working Pressure
    L

    LI

    20

    		 140

    15

    0.6

    25

    		 168

     17

    0.6

    32

    		 189

    20

    0.6

    40

    		 210

    23

    0.6

    50

    		 238

    25

    0.6

    63

    		 280

    28

    0.6

    75

    		 301

    32

    0.6

    90

    		 371

    32

    0.6

    110

    		 504

    45

    0.6
