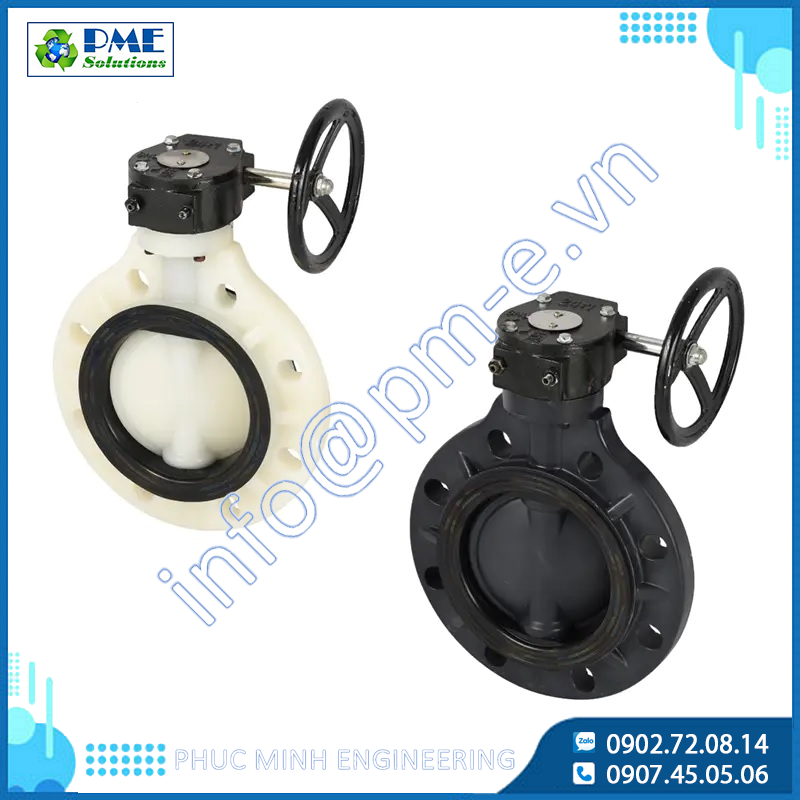

Baodi Butterfly Valve-Worm Gear Type

Price: Contact

Model:

Features：

● Sealing performance has been improved due to its specially designed seat.

● Thickened valve body and reinforcing ribs, no hollow design, design optimization for stress concentration, enhance the strength of the valve under harsh conditions

● Spherical design disc provides superior durability and improved Cv value.

● Optional cast iron (default), plastic or aluminum alloy worm gear box.

Trademark: BAODI

Origin: China

Order

Project details Download Catalogue Evaluate

Butterfly Valve-Lever Handle Type

Details

Parts & Material

No.	Parts	Materials
1	Gear box	Cast iron, aluminum alloy, plastic
2	Body	FRPP,PPH,UPVC,CPVC,PVDF
3	Seat	EPDM,FPM
4	Stem	Steel, stainless steel
5	Disc	FRPP,PPH,UPVC,CPVC,PVDF
6	Disc O-ring	EPDM,FPM
7	Stud Bolt & Nut	Seel&plastic nuts, stainless steel
8	Stem O-ring	EPDM,FPM

Dimensions Table（mm）

DN	d	D			D1	L	n			Working pressure(Mpa)
DN	d	GB/DIN	JIS	ANSI	D1	L	GB/DIN	JIS	ANSI	Working pressure(Mpa)
125	131	210	210	216	255	62	8	8	8	0.6^#
150	153	240	240	241	285	67	8	8	8	0.6^#
200	205	295	290	298	340	85	8	12*	8	0.6^#
250	259	350	355	362	410	105	12	12	12	0.6
300	307	400	400	432	480	120	12	16*	12	0.6
350	358	460	445	476	530	130	16	16	12*	0.4
400	389	515	510	540	605	140	16	16	16	0.4
450	446	565	565	578	630	152	20	20	16*	0.4
500	494	620	620	635	705	155	20	20	20	0.3
600	590	725	730	749	820	175	20	24*	20	0.3
