Manual valve

Baodi Butterfly Valve-Lever Handle Type

Price: Contact

  • Model:

    • Features：

    • Sealing performance has been improved due to its specially designed seat.
    • Thickened valve body and reinforcing ribs, no hollow design, design optimization for stress concentration, enhance the strength of the valve under harsh conditions
    • Spherical design disc provides superior durability and improved Cv value.
  • Trademark: BAODI
  • Origin: China
    • Project details Download Catalogue Evaluate

    Butterfly Valve-Lever Handle Type

    Details

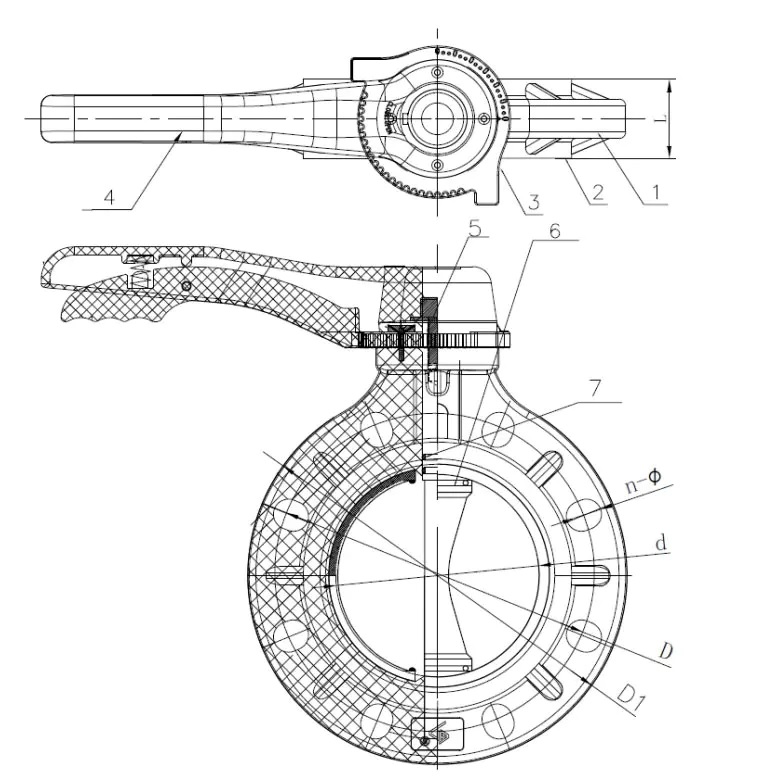

    Parts & Material

    No.

    Parts

    Materials

    1

    Body

    FRPP,PPH,UPVC,CPVC,PVDF

    2

    Seat

    EPDM,FPM

    3

    Locking Plate

    PPS,FRPP

    4

    Handle

    ABS,FRPP

    5

    Stem

    Steel, stainless steel

    6

    Compressor

    FRPP,PPH,UPVC,CPVC,PVDF

    7

    O-ring

    EPDM,FPM




    Dimensions Tablemm）

    DN

    d

    D

    D1

    L

    n

    Working pressure(Mpa)

    GB/DIN

    JIS

    ANSI

    GB/DIN

    JIS

    ANSI

    25

    35

    85

    90

    79

    125

    37

    4

    4

    4

    1.0

    32

    35

    100

    100

    89

    125

    37

    4

    4

    4

    1.0

    40

    47

    110

    105

    98

    145

    38

    4

    4

    4

    1.0

    50

    56

    125

    120

    121

    160

    40

    4

    4

    4

    1.0

    65

    71

    145

    140

    140

    180

    45

    4

    4

    4

    1.0

    80

    85

    160

    150

    152

    195

    46

    8

    8

    4*

    1.0

    100

    105

    180

    175

    190

    225

    55

    8

    8

    8

    1.0

    125

    131

    210

    210

    216

    255

    62

    8

    8

    8

    0.6#

    150

    153

    240

    240

    241

    285

    67

    8

    8

    8

    0.6#

    200

    210

    295

    290

    298

    340

    85

    8

    12*

    8

     0.6#

    #The specifications marked with numbers can be customized for butterfly valves with a working pressure of 1.0Mpa
