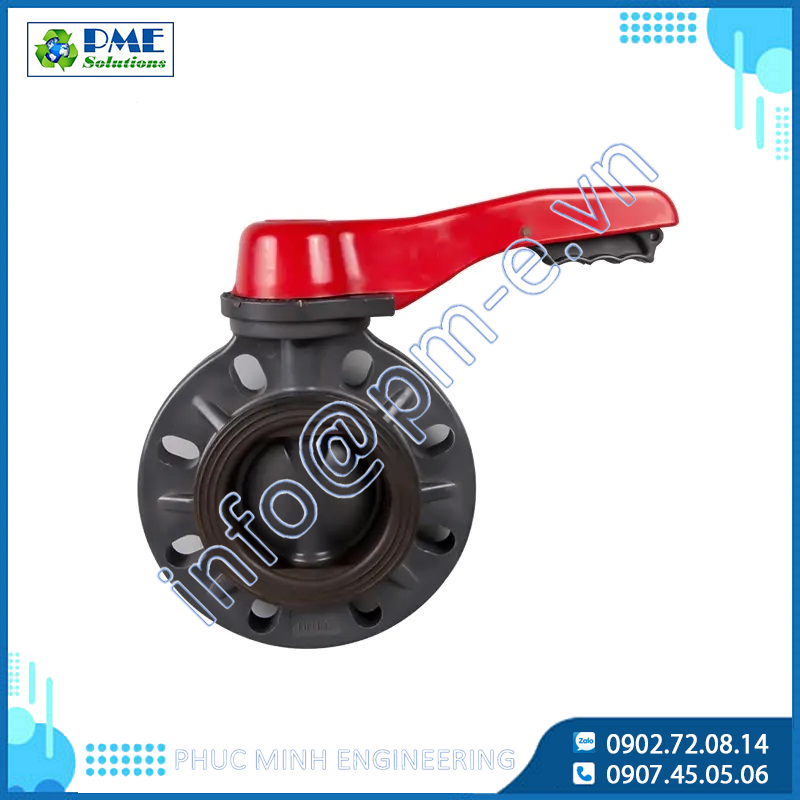

D71X-6F - UPVC WAFER TYPE LEVER BUTTERFLY VALVE

Price: Contact

Model: D71X-6F

Trademark: BAODI

Origin: China

Order

Project details Download Catalogue Evaluate

UPVC WAFER TYPE LEVER BUTTERFLY VALVE

Media: Chemical, water, oil, food
Material: UPVC
Other material: CPVC, PVDF, PPH, FRPP
Driving Mode: Manual
Connection Form: Wafer
Structure: Centre Sealing
Valve Stem: Normal
Seal Form: Auto Sealed/Force Sealed
Work Pressure: Low Pressure (Pn<1.6mpa)
Working Temperature: Normal Temperature (-40°C
Material of Seal Surface: Soft Sealed
Valve Body: Injection
Model NO.: D71X-6F
Size: Dn25-Dn800
Application: Industrial Usage, Water Industrial Usage
Trademark: Baodi
Specification: HG, JIS, DIN, ANSI
Transport Package: Carton/Plywood Box
Specification: 1"-6"
Origin: China
HS Code: 8481804090
Seat: EPDM/FPM/VITON
End connector: Flange, wafer type
Operating: Lever
Working pressure: 0.5-0.7MPa

UPVC WAFER TYPE LEVER BUTTERFLY VALVE DETAILS

Part material list

The datas are updating. Please contact our sales for more details

NO.	Name	Material
1	Body	FRPP、PVDF、CPVC
2	Disc	FRPP、PVDF、CPVC
3	Stem	lCrl8Ni9Ti 45#
4	Seat	EPDM.FPM
5	O-ring	EPDM.FPM
6	Lever	ABS
7	Nut	FRPP.PVDF
8	Oriental board	lCrl8Ni9Ti

Note: In order to meet the requirements suitable for corrosion resistant industry, the valve seat for sealing can be made of the rubbers like EPDM, FRM, IIR or GR.

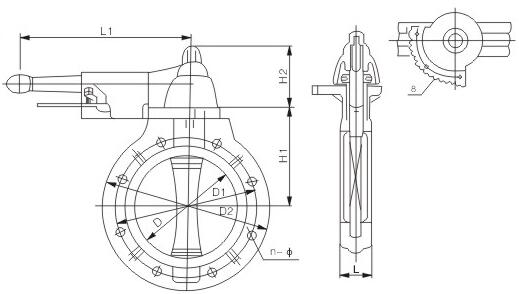

Lever type butterfly valve size table

The datas are updating. Please contact our sales for more details

DN	D	D1				D2	LI	L	HI	H2	n-Φ	MPA Working pressure	kg/Weight
DN	D	HG*	JIS	DIN	ANSI	D2	LI	L	HI	H2	n-Φ	MPA Working pressure	FRPP	CPVC	PVDF
25	35	85	90	85	80	125	185	37	72	60	4-17	0.7	0.9	1.0	1.1
32	35	100				125	185	37	72	60	4-17	0.7	0.9	1.0	1.1
40	47	110	105	110	98.5	145	200	38	86	70	4-18	0.7	1.2	1.3	1.5
50	56	125	120	125	120	160	200	40	100	70	4-18	0.7	1.3	1.5	1.0
65	71	145	145	145	140	180	220	45	112	70	4-18	0.7	1.7	1.8	2.0
*80	85	160	150	160	152	195	280	46	120	85	8-18	0.7	2.3	2.5	2.7
100	105	130	175	180	190	225	280	55	127	85	8-18	0.6	4.0	4.4	4.8
125	131	210	210	210	216	255	300	62	163	93	8-18	0.5	4.8	5.2	5.7
150	153	240	240	240	240	280	300	67	175	93	8-22	0.5	5.5	6.1	6.5

Note: 1. The bore diameter of flange in these butterfly valve is applied according to 6B2555-81, l.OMPa, or customized as per the requirements of customers to be manufactured in accordance with other standards like JIS, DIN and ANSI.
2. The valve flap of Model D71X-6F is madeof PVDF while sealing materials of FPM, the materials of the valve body and flap applied in Model D71X-6Sis FRPP while its sealing materials is EPDM, it is normally called as handle butterfly valve.
