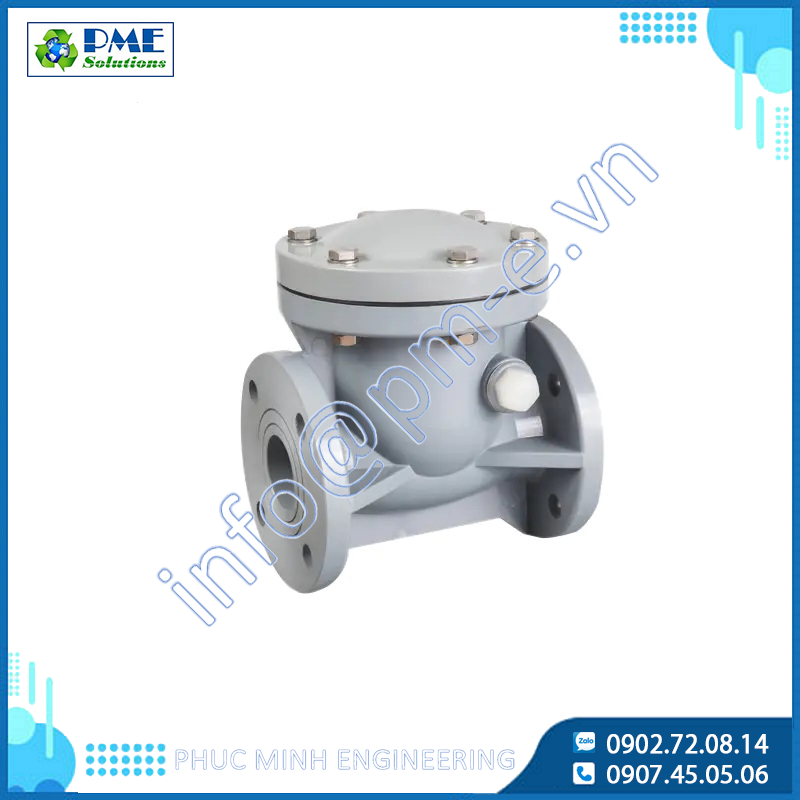

H44F-10S/F - BAODI CPVC NON RETURN SWING CHECK VALVE

Price: Contact

  • Model: H44F-10S/F
  • Trademark: BAODI
  • Origin: China
    • Project details Download Catalogue Evaluate

    CPVC NON RETURN SWING CHECK VALVE

    • Media: Acid
    • Temperature: Ordinary Temperature
    • Material: Plastic-CPVC
    • Connection Form: Flange
    • Structure: Swing
    • Pressure: Low Pressure
    • Function: Non_Silence
    • Sealing Form: Gland Packings Globe Valve
    • Model NO.: H44F-10S/F
    • Flow Direction: Unidirection
    • Standard: ANSI
    • Application: Industrial Usage, Water Industrial Usage
    • Trademark: BAODI
    • Transport Package: Carton
    • Specification: ISO
    • Origin: China
    • HS Code: 8481804090
    • Size: 1"-10"
    • Color: White and gray
    • End: Flange
    • Standrd: GB, DIN, JIS, ANSI
    • Working pressure: 0.5~0.7MPa PVDF, 0.5~0.7MPa CPVC, 0.4~0.6MPa FRPP, 0.4~0.6MPa UPVC



    CPVC NON RETURN SWING CHECK VALVE DETAILS

    Part material list

    The datas are updating. Please contact our sales for more details

    NO.

    Name

    Material

    NO.

    Name

    Material

    1

    Body

    FRPP,PVDF

    9

    Nut

    FRPP, PVDF

    2

    Bonnet

    FRPP, PVDF

    10

    Packing

    FRPP, PVDF

    3

     Moving board

    FRPP,PVDF

    11

    Nut

    Stainless Steel,Steel

    4

    Sealing ring tray

    FRPP, PVDF

    12

    Packing

    Stainless Steel,Sted

    5

    Swing axle

    FRPP,PVDF

    13

    Packing

    PTFE(PVDF,FRPP)

    6

    Compression sealing cao

    PTFE,EPDM

    14

    Nut

    FRPP, PVDF

    7

    Back seal

    EPDM,FPM

    15

    Fixed screw

    FRPP, PVDF

    8

    Idm

    FRPP,PVDF

    16

    Pin

    FRPP, PVDF





     Swing type check valves size table

    The datas are updating. Please contact our sales for more details


    DN

    D1

    D2



    n-*

    		 L T (Mpa) Working pressure

    JIS

    DIN

    ANSI

    JIS

    DIN

    		 ANSI PVDF

    CPVC

    FRPP

    25

    90

    85

    80

    125

    4-19

    4-14

    		 4-16 160 16

    0.7

    0.7

    0.6

    40

    105

    110

    99

    140

    4-19

    4-18

    		 4-16 180 18

    0.7

    0.7

    0.6

    50

    120

    125

    120

    155

    4-19

    4-18

    		 4-19 200 21

    0.7

    0.7

    0.6

    65

    140

    145

    140

    175

    4-19

    4-18

    		 4-19 240 23

    0.7

    0.7

    0.6

    80

    150

    160

    152

    185

    8-19

    8-18

    		 4-19 260 25

    0.7

    0.7

    0.6

    100

    175

    180

    190

    210

    8-19

    8-18

    		 8-19 300 26

    0.5

    0.5

    0.5

    125

    210

    210

    216

    250

    8-23

    8-18

    		 8-22 350 27

    0.5

    0.5

    0.5

    150

    240

    240

    240

    280

    8-23

    8-23

    		 8-22 400 27

    0.5

    0.5

    0.5

    200

    290

    295

    298

    330

    12-23

    8-23

    		 8-22 500 34

    0.5

    0.5

    0.5

    250

    355

    350

    362

    395

    12-25

    12-23

    		 12-25 600 38

    0.5

    0.5

    0.5
