VINVAL Valves

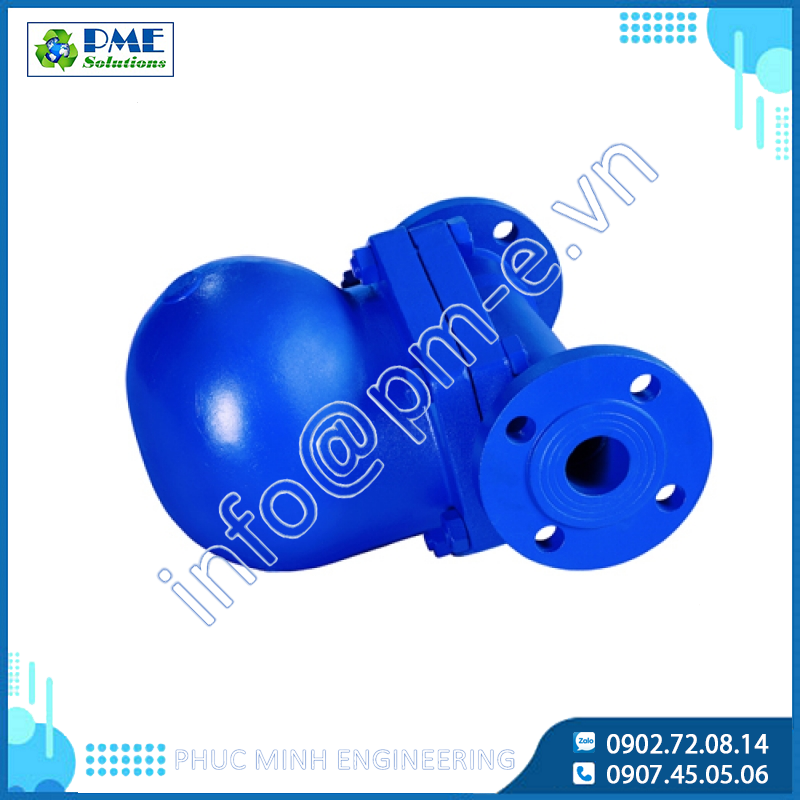

Flanged End Ball Float Steam Trap FT44

Price: Contact

Model:

BALL FLOAT STEAM TRAP, DOUBLE SEAT, FLANGE END FT44

The FT44 is a ball float steam trap with integral air venting facility.

It is available with horizontal flange connections.

Phone : +84907450506
Email : info@pm-e.vn

Trademark: VINVAL

Origin: China

Order

Project details Download Catalogue Evaluate

Structure characteristics

1. This type of steam trap is applied with balanced double seat with reliable closedown and long service life.
2. There has always been high temperatue condensation with water upstream, which will form reliable water seal without any leakge of steam
3. Its operation will not cause any noise. Thus, it is preferable to the environment.
4. The valve is completely open when the steam firstly comes. The low temperature condensation water and air can be discharged repadily, which largely shortens the startup time of equipment.
5. All the internal parts are made of stainless steel, which is resistant to corrosion and caviation erosion.

Standards

1. Basic Design: GB/T22654-2008

2. Face to Face Dimensions: GB/T12250-2005

3. Test Std: GB/T12251-2005

4. End Dimensions: Flange DIN 2545 / Flange ASME B 16.5

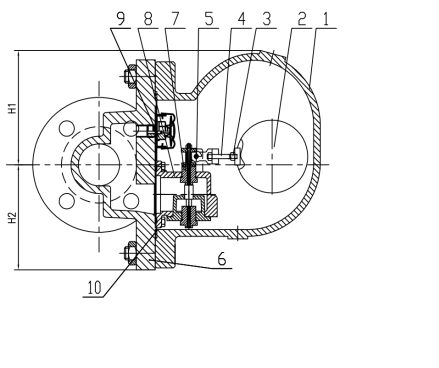

Parts List

No	Parts	Mat'l	Mat'l
1	Body	WCB	CF8
2	Float Ball	304	304
3	Bolt	35	304
4	Bracket	304	304
5	Pin	304	304
6	Bonnet	WCB	CF8
7	Disc	2CR13	304
8	Seat	2CR13	304
9	Air Vent	2CR13	304
10	Gasket	SS304+GRAPHIT	SS304+GRAPHIT

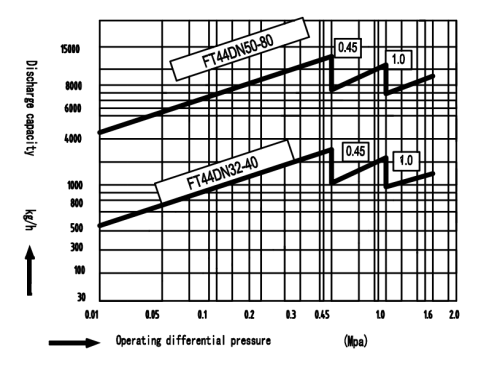

NOTES: Please take 2-3 times of safety factor into consideration

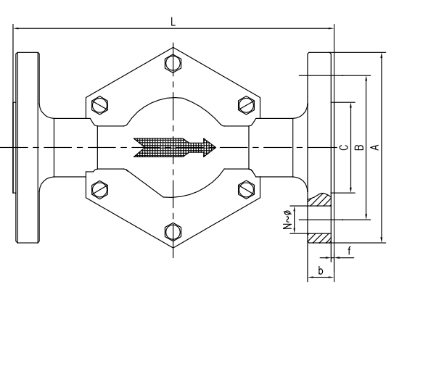

Dimensions & Weights

Size	NPS	CLASS	L	H1	H2	A	B	C	b	f	N-Φ	Net. Weight
DN32	1 1/4''	PN16	320	135	125	140	100	78	18	2	4-Φ18	26 KGS
DN40	1 1/2''	PN16	230	130	125	150	110	88	18	3	4-Φ18	27 KGS
DN50	2''	PN16	230	130	125	165	125	102	18	3	4-Φ18	28 KGS
DN65	2 1/2''	PN16	320	135	125	185	145	122	18	3	4-Φ18	32 KGS
DN80	3''	PN16	320	135	125	200	160	138	20	3	8-Φ18	33 KGS
DN100	4''	PN16	320	135	125	220	180	158	20	3	8-Φ18	34 KGS

Size	NPS	CLASS	L	H1	H2	A	B	C	b	f	N-Φ	Net. Weight
DN32	1 1/4''	PN40	320	135	125	140	100	78	18	2	4-Φ18	26 KGS
DN40	1 1/2''	PN40	320	135	125	150	110	88	18	3	4-Φ18	27 KGS
DN50	2''	PN40	320	135	125	165	125	102	20	3	4-Φ18	28 KGS
DN65	2 1/2''	PN40	320	135	125	185	145	122	22	3	8-Φ18	32 KGS
DN80	3''	PN40	320	135	125	200	160	138	24	3	8-Φ18	33 KGS
DN100	4''	PN40	320	135	125	235	190	162	24	3	8-Φ22	34 KGS

Size	NPS	CLASS	L	H1	H2	A	B	C	b	f	N-Φ	Net. Weight
DN32	1 1/4''	150LB	320	135	125	115	88.9	63.5	14.3	2	4-Φ16	26 KGS
DN40	1 1/2''	150LB	230	130	125	125	98.4	73	15.9	2	4-Φ16	27 KGS
DN50	2''	150LB	230	130	125	150	120.7	92.1	17.5	2	4-Φ19	28 KGS
DN65	2 1/2''	150LB	320	135	125	150	120.7	92.1	17.5+2	2	4-Φ19	32 KGS
DN80	3''	150LB	320	135	125	180	139.7	104.8	20.7+2	2	4-Φ19	33 KGS
DN100	4''	150LB	320	135	125	190	152.4	127	22.3+2	2	4-Φ19	34 KGS

Size	NPS	CLASS	L	H1	H2	A	B	C	b	f	N-Φ	Net. Weight
DN32	1 1/4''	300LB	320	135	125	135	98.4	63.5	17.5	2	4-Φ19	26 KGS
DN40	1 1/2''	300LB	320	135	125	155	114.3	73	19.1	2	4-Φ22	27 KGS
DN50	2''	300LB	320	135	125	165	127	92.1	20.7	2	8-Φ19	28 KGS
DN65	2 1/2''	300LB	320	135	125	165	127	92.1	20.7+2	2	8-Φ19	32 KGS
DN80	3''	300LB	320	135	125	190	149.2	104.8	23.9+2	2	8-Φ22	33 KGS
DN100	4''	300LB	320	135	125	210	168.3	127	27+2	2	8-Φ22	34 KGS
