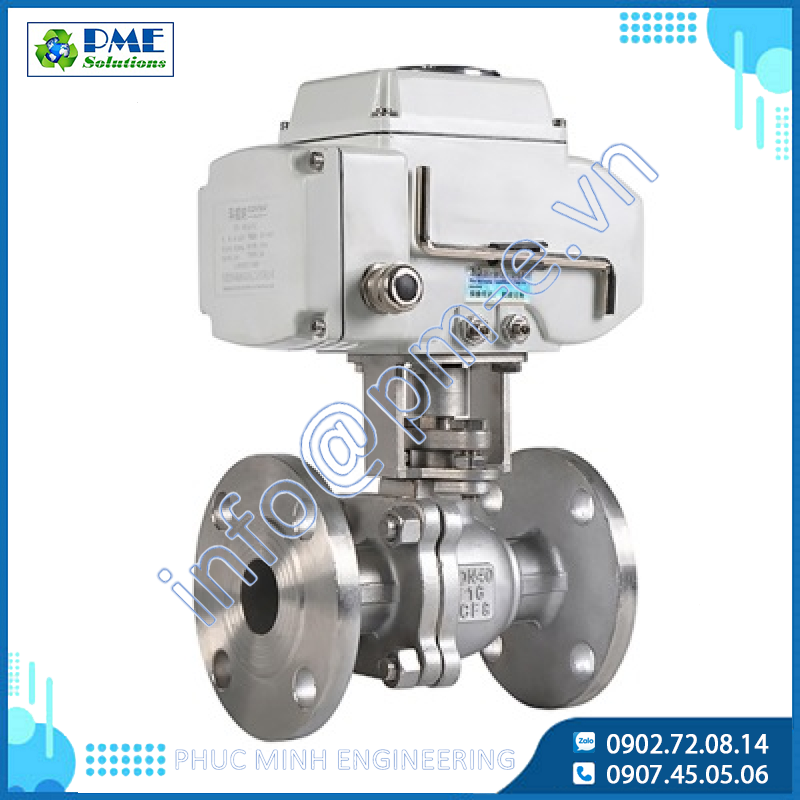

2 Way Flange Motorized Ball Valve - VINVAL

Price: Contact

Model:

2 Way Flange Motorized Ball Valve

Two piece two way GB standard flanged fire safe approved ball valve, electric actuation. 316 stainless steel body, graphite filled PTFE seats, FKM backing ring, live loaded packing and anti static device. Firesafe approved API607 Sixth Edition. ISO5211 mounting pad allowing direct coupling of actuation. Great for fuel applications, pipelines, water treatment and general industry.

Size Range: 1/2'' to 8''
Pressure Range: 1.6 to 6.4MPa
Material: WCB, Stainless Steel

Catalog Download

Catalog Download

Trademark: VINVAL

Origin: China

Order

Project details Download Catalogue Evaluate

2 Way Flange Electric Motorized Ball Valve

Features:

Electric Motorized Ball Valve with auto-reset thermostatic protection in the motor
Limit switch: Open/close limit switch with cams adjustable along the whole stroke
Auxiliary limit switches with cams adjustable along the whole stroke
Safety adjustable mechanical limit switches
Detachable lever for manual operation
ON-OFF Type: The Active Contact Signal, Passive Contact Signal, Resistance, 4-20mA
Regulation Type: Input & Output Signal: DC 4-20mA, DC 0-10V, DC 1-5V

Size Range	DN15-250	End Connection	Flange
Body Material	Stainless Steel 304/316/316L	Working Pressure	16 / 25 / 40 / 64 Bar (232 / 362 / 580 / 928 psi)
Temperature Of Media	-10 to 180℃ (-22℉to 356℉)	Suitable Media	Water, Air, Oil, Gas, etc
Structure	Floating Ball Valve	Voltage	DC-12V, 24V; AC-24V, 110V, 220V, 380V
Actuator Type	ON OFF Type, Modulating Type, Intelligent Type	Voltage Tolerance	±10%

● ON/OFF Type Electric Actuator: 90 degree rotation. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.

● Modulating Type Electric Actuator: Adjust open/close angle from 0 to 90 degree. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.

● Intelligent Type Electric Actuator: Adjust open/close angle from 0 to 90 degree. LED display screen to allow you check the open/close angle easier. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.

Model	C-05 \| C-10 \| C-16 \| C-30 \| C-60 \| C-125
Output Torque	50Nm \| 100Nm \| 160Nm \| 300Nm \| 600Nm \| 1250Nm
Cycle Time	20s \| 30s \| 30s \| 30s \|60s \| 100s
Rotation	0-90°
Rated Current	0.25A \| 0.48A \| 0.68A \| 0.8A \| 1.2A \| 2A
Motor Power	10W/F \| 25W/F \| 30W/F \| 40W/F \| 90W/F \| 100W/F
Weight	3.0KG \| 5.0KG \| 5.5KG \| 8.0KG \| 8.5KG \| 15.0KG
Voltage Options	AC110V/220V/380V, AC24V, DC24V

ON/OFF Type	Feedback: the active contact signal, passive contact signal, resistant, 4-20mA
Regulation Type	Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V
Field Operation	The field, remote control switch regulation and MODBUS, PROFIBUS field bus
Voltage optional	AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized
Protection Class	IP65

VINVAL aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service with omprehensive service from start to finish, encompassing consultation through to after sales service, full support in every respect and ensure that you are accompanied at each stage of your project.

25 years manufacturer of actuated valves
Mass customaztion acceptable. 3 production base, large stock,
Short lead time, same day shipping.
German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured.
Industrial standard 1 ear (12 months) warranty.
ISO 9001 certificated, with extra certifications include CE, TUV, RoHS, SGS, BV, explosion & fire safe.
OEM / ODM service available. Can do JIS 5K / 10K, ANSI 150lb / 300lb / 600lb / 900lb standard.
