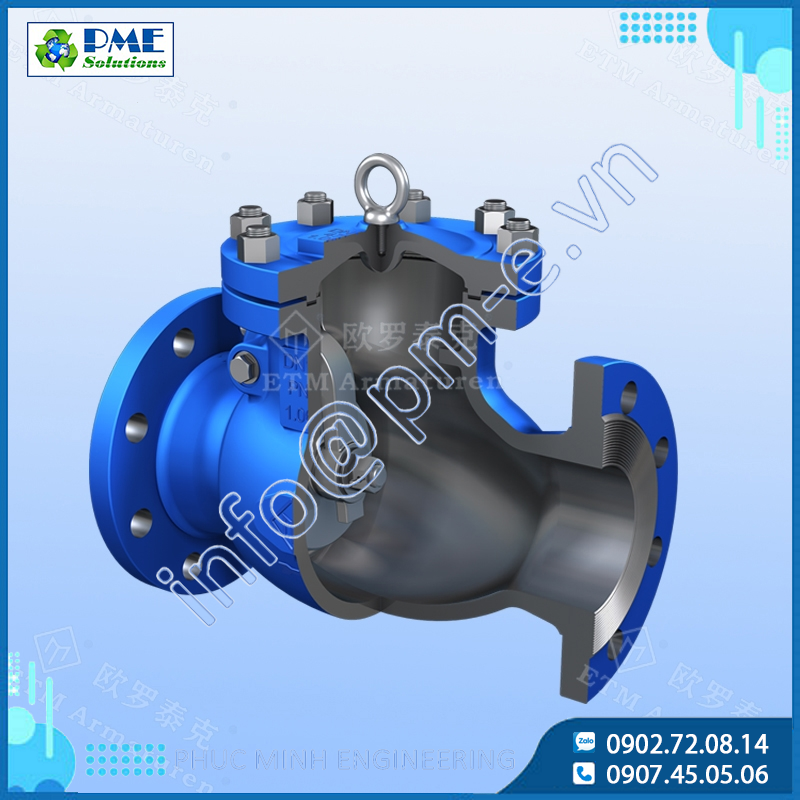

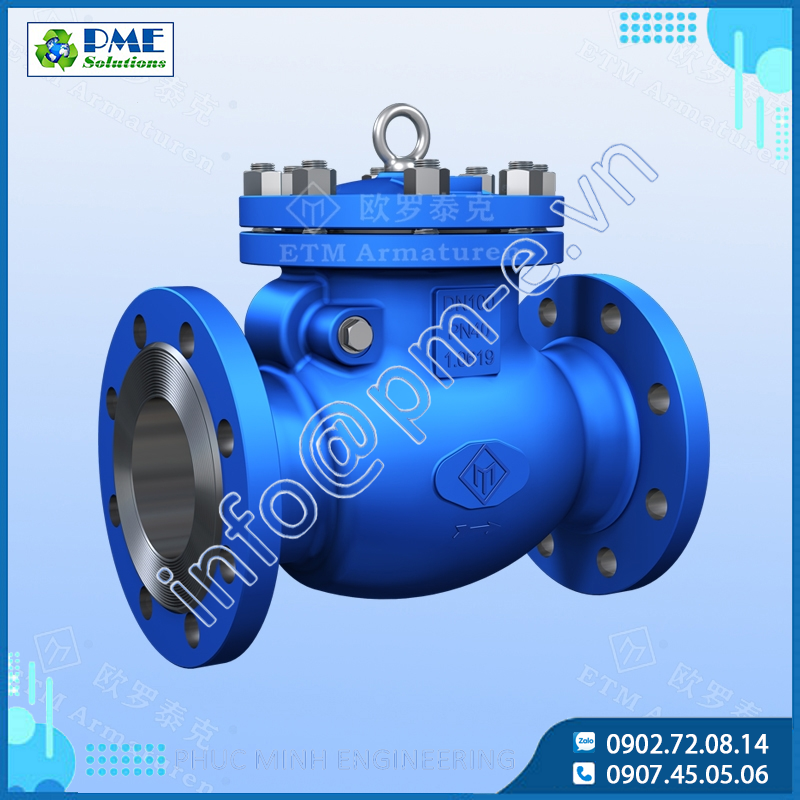

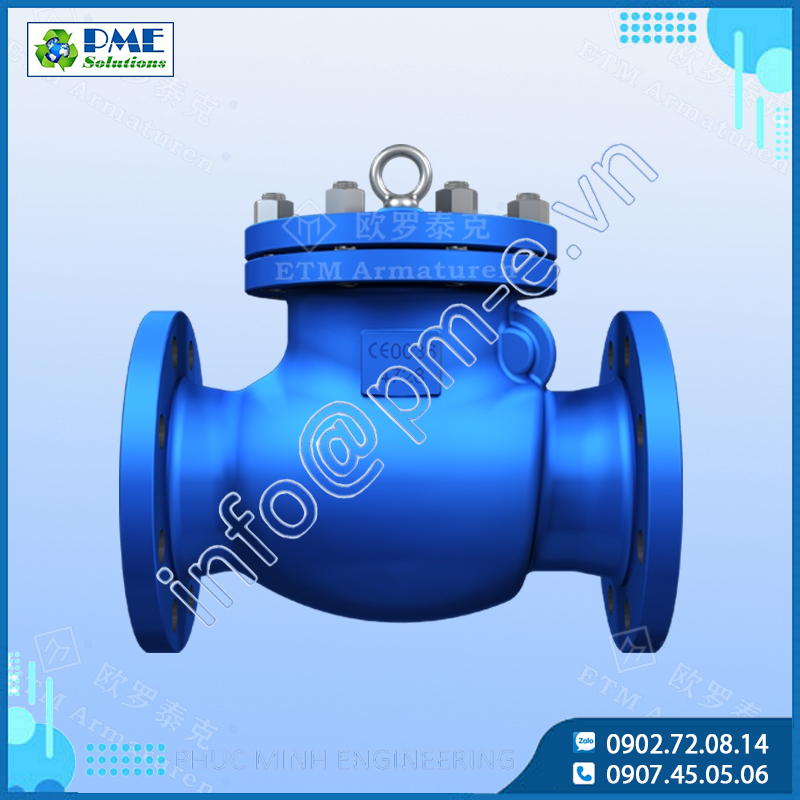

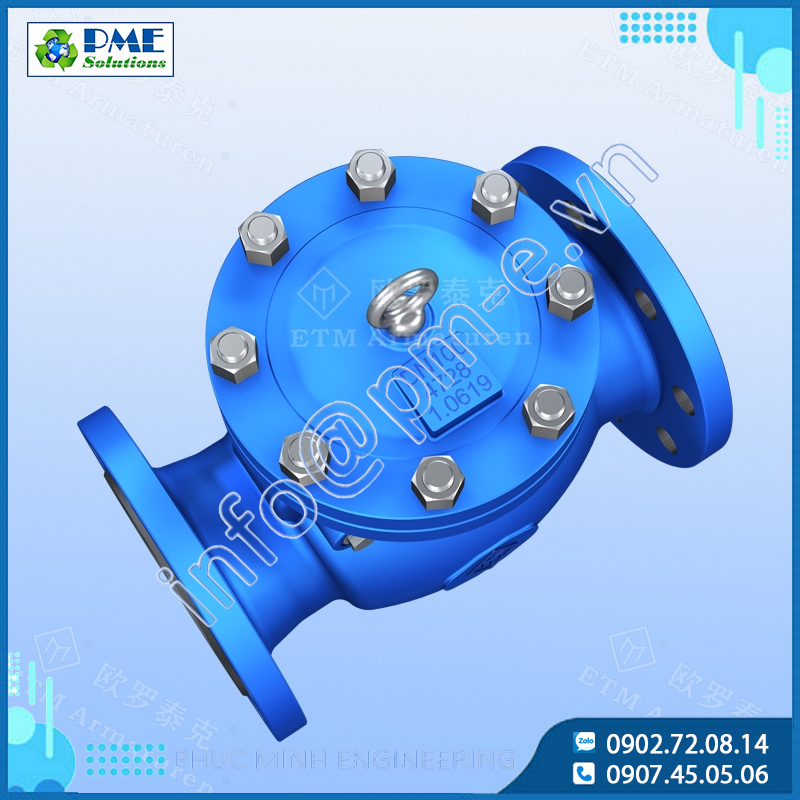

ETM Armaturen Swing Check Valve

• ETM Armaturen DIN Standard Swing Check Valves (DIN 3202 F6 ,DIN 3202 F1)
• ETM Armaturen DIN F6 Swing check valve
• ETM Armaturen DIN F1 Swing check valve
• ETM Armaturen DIN Rückschlagklappe
• ETM Armaturen DIN Válvula de retención clapeta oscilante
• ETM Armaturen DIN Zpětná klapka stavební délka dle DIN EN558-1 serie 48 & serie 1
• ETM Armaturen DIN Standard Sving-klaff tilbakeslagsventil (Lengde iht. to DIN EN 558-1, bygge lengde serie 48 & serie 1)
• ETM Armaturen DIN Standardında Çalpara Çek Valf
• ETM Armaturen Van 1 chiều lá lật chuẩn DIN

ETM Armaturen Code No. :

• ETM FIG.C.260,ETM FIG.C.261,ETM FIG.C.262,ETMFIG.C.263

This ETM Armaturen swing check valve can be used in Industry, Power stations, Flue gas purification plant, processing technology, gas supply, vapor facilities, thermal oil applications, recycling facilities, vacuum facilities, ammonia, hot water, heating technology, district heating, cooling and freezing systems, general plant manufacturing, steam systems. This type valve designed to cut off the flow of industrial fluid.

This valve is maintenance-free and like all ETM Armaturen valves - is classed leak rate “A” in accordance with EN 12266-1.

Products:

• ETM Armaturen -FIGURE C-BS/EN Standard swing check valve PN 10 Bar with Flanges According to DIN EN 1092-1
• ETM Armaturen -FIGURE C-BS/EN Standard swing check valve PN 16 Bar with Flanges According to DIN EN 1092-1
• ETM Armaturen -FIGURE C-BS/EN Standard swing check valve PN 25 Bar with Flanges According to DIN EN 1092-1
• ETM Armaturen -FIGURE C-BS/EN Standard swing check valve PN 40 Bar with Flanges According to DIN EN 1092-1
• ETM Armaturen -FIGURE C-BS/EN Standard swing check valve PN 10 Bar with Butt Weld Ends According to DIN EN 12627
• ETM Armaturen -FIGURE C-BS/EN Standard swing check valve PN 16 Bar with Butt Weld Ends According to DIN EN 12627
• ETM Armaturen -FIGURE C-BS/EN Standard swing check valve PN 25 Bar with Butt Weld Ends According to DIN EN 12627
• ETM Armaturen -FIGURE C-BS/EN Standard swing check valve PN 40 Bar with Butt Weld Ends According to DIN EN 12627

Material Equivalence:

• EN Material Name-----------------------EN Number ------------Forgings-----------------ASTM Material-------------------Forgings
• EN 10213 GP240GH---------------------1.0619------------------1.0460-----------------ASTM A216 WCB-----------------A105
• EN 10213 G20Mo5-----------------------1.6220------------------1.0437-----------------ASTM A352 LCB------------------A352 LF2
• EN 10213 G17CrMo5-5------------------1.7357------------------1.7335-----------------ASTM A217 WC6-----------------A182 F11
• EN 10213 G17CrMo9-10----------------1.7379------------------1.7380 ----------------ASTM A217 WC9-----------------A182 F22
• EN 10213 GX5CrNi19-10----------------1.4308------------------1.4301-----------------ASTM A351 CF8-----------------A182 F304
• EN 10213 GX5CrNi19-11-2-------------1.4408 -----------------1.4401-----------------ASTM A351 CF8M----------------A182 F316

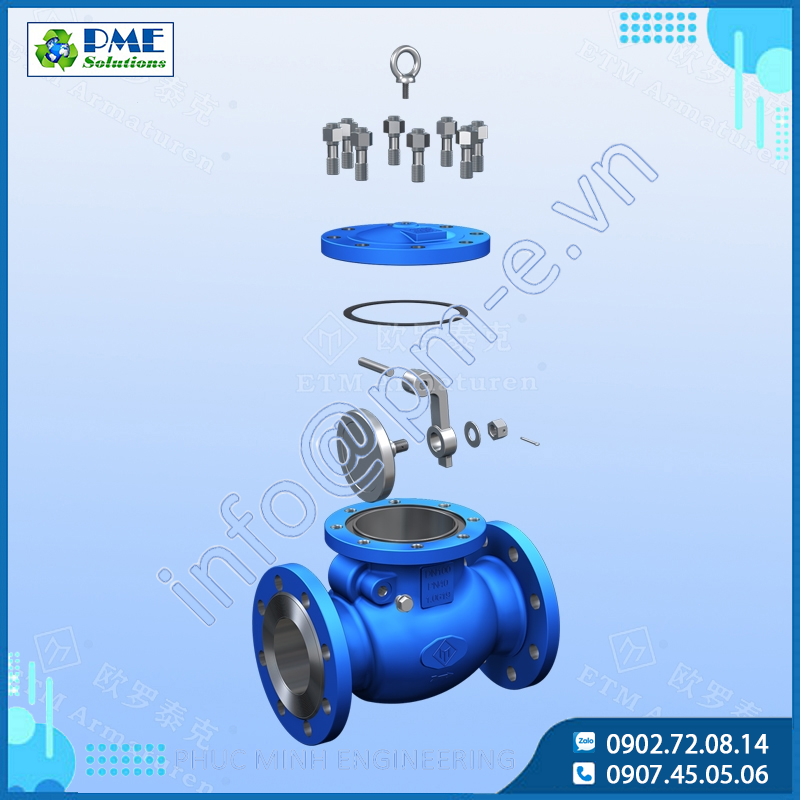

Features:

• Cast steel PN10 ,PN16, PN25,PN40 DN40 to DN1000
• Length acc.to DIN EN 558-1,face to face series 48 & series 1 (DIN3202 series F6 & series F1)
• BB,Bolted Bonnet.
• Swing Disc Type
• Internal or External
• Hinge Pin Lever & Weight (On Request)
• Body Seat Ring
• Welded seat in stellite or Cr-steel
• Disc with PTFE or RUBBER
• Lever and weight
• Shock absorber
• By-Pass
• Drain plug

Mediums:

• Standard: Steam, gases, hot water, thermal fluids, hot oil, process water, etc.
• Stainless Steel: Process water, aggressive media, etc.

Requirements and testing:

• The test are carried out according to DIN EN12266-1
• Shell test : nominal pressure (PN)X1.5
• Tightness of seat :nominal pressure (PN)X1.1
• Certificate of conformity in according to with PN-EN10204
• Design according to PN-EN12516-2
• Valves have been submitted for appraisal of conformity according to the directive pressure equipment directive 97/23/EC.

Installation:

• Swing check valve installation be installation to horizontal.
• Direction of flow see body mark

Connection:

• Butt-Welded according to EN12627,flanged according to EN1092-1 or to customer request
• Face to face dimensions according to DIN EN 558-1,face to face series 48 & series 1 (DIN3202 series F6 & series F1)

Operation:

• Self-acting, by pressure of medium
• Can rocker and hinge pin use inside-set design
