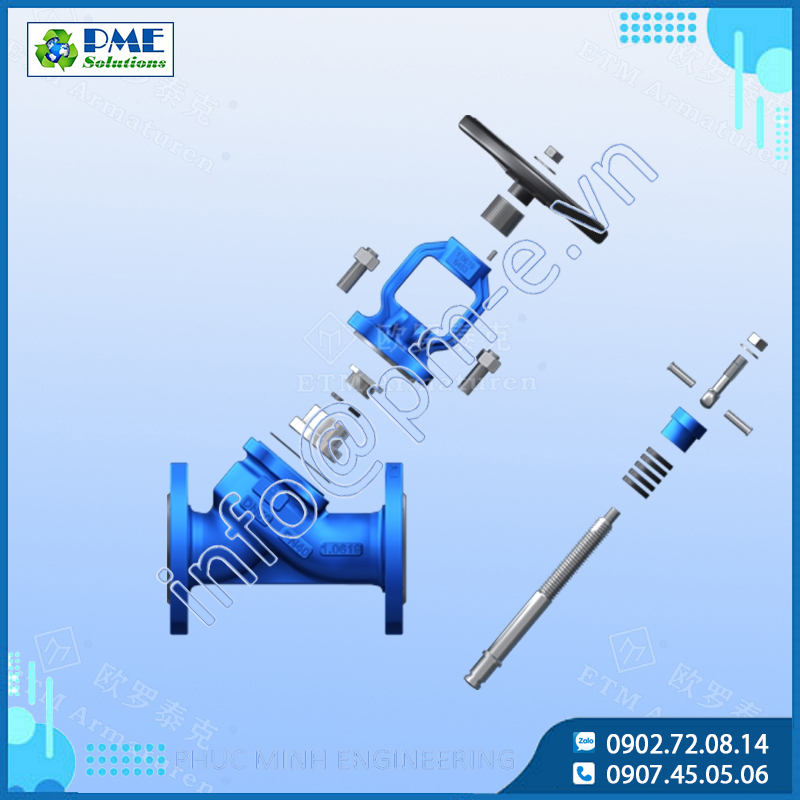

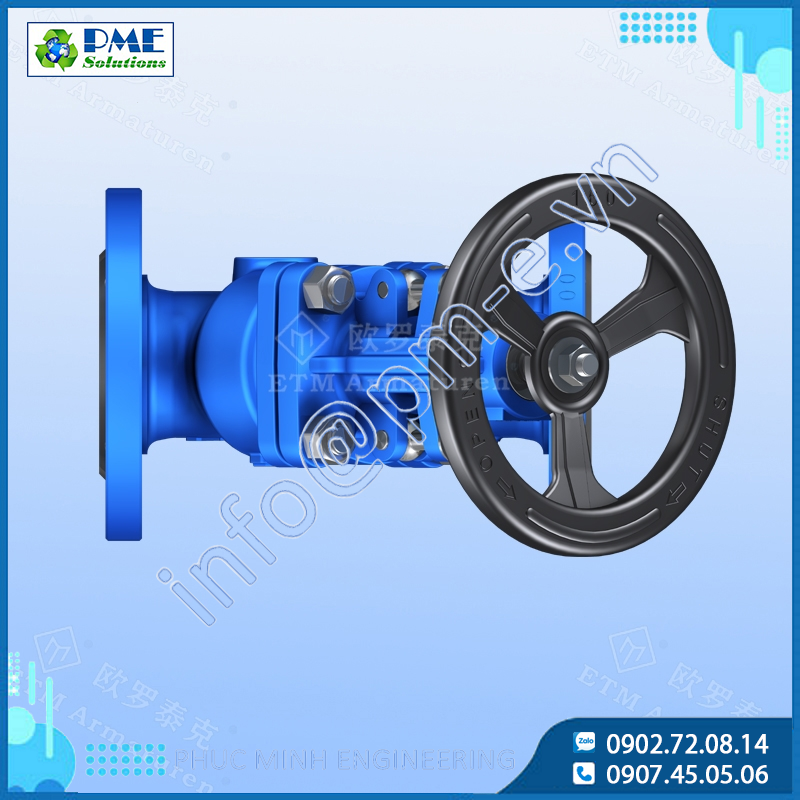

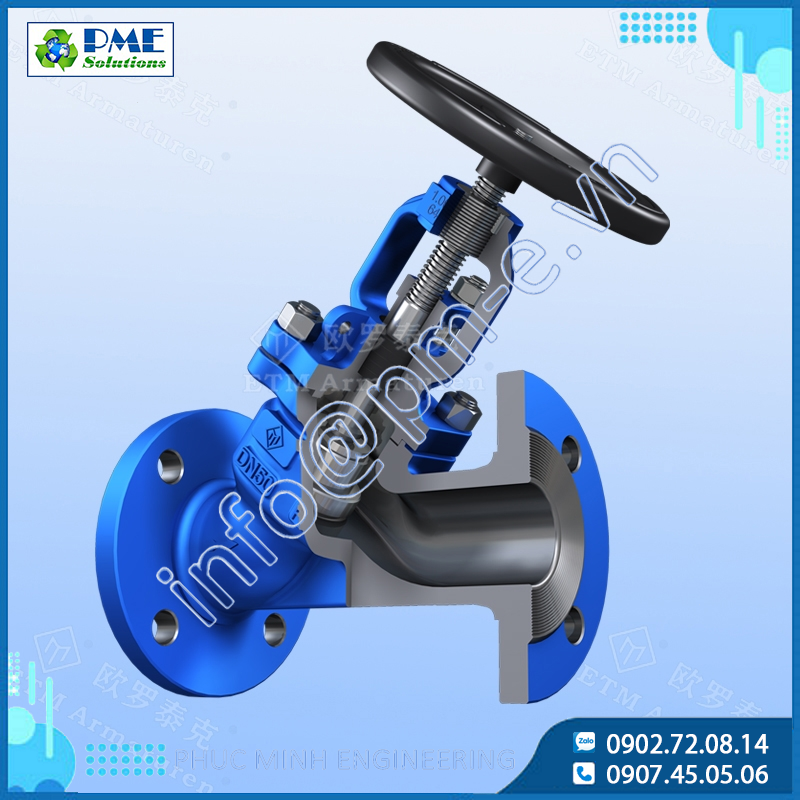

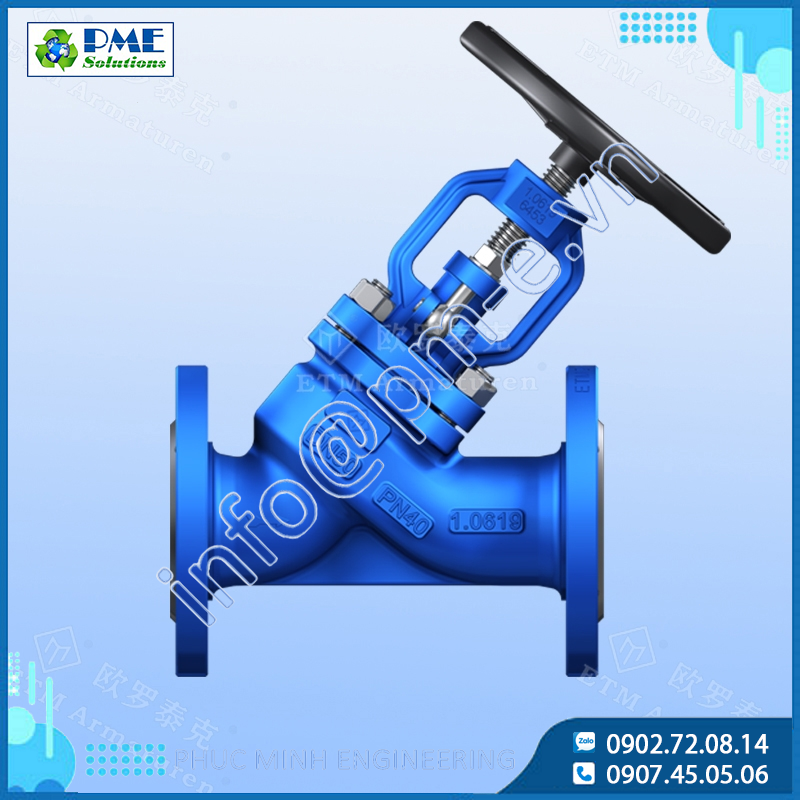

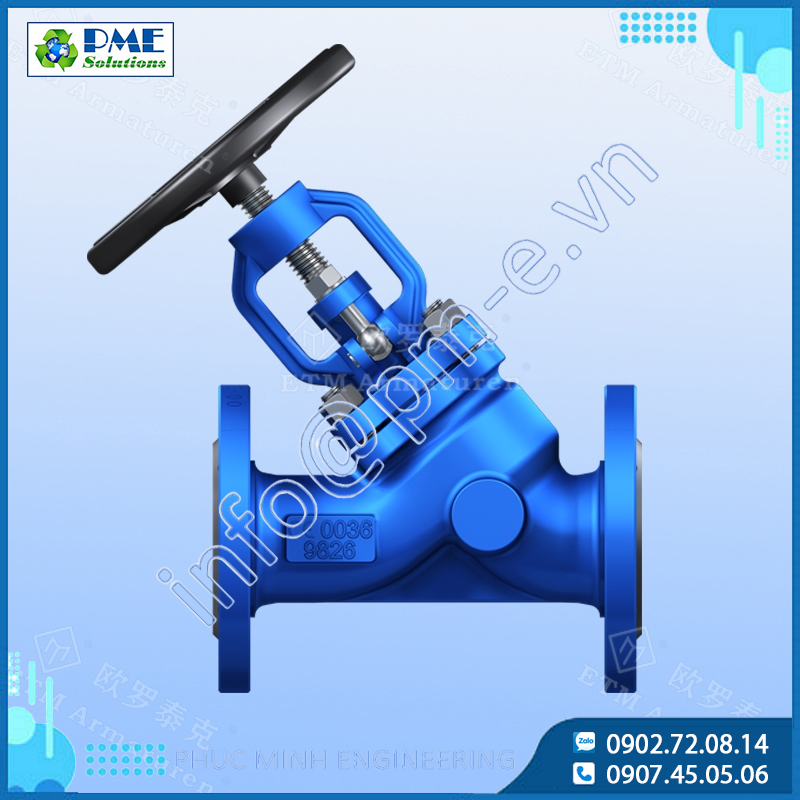

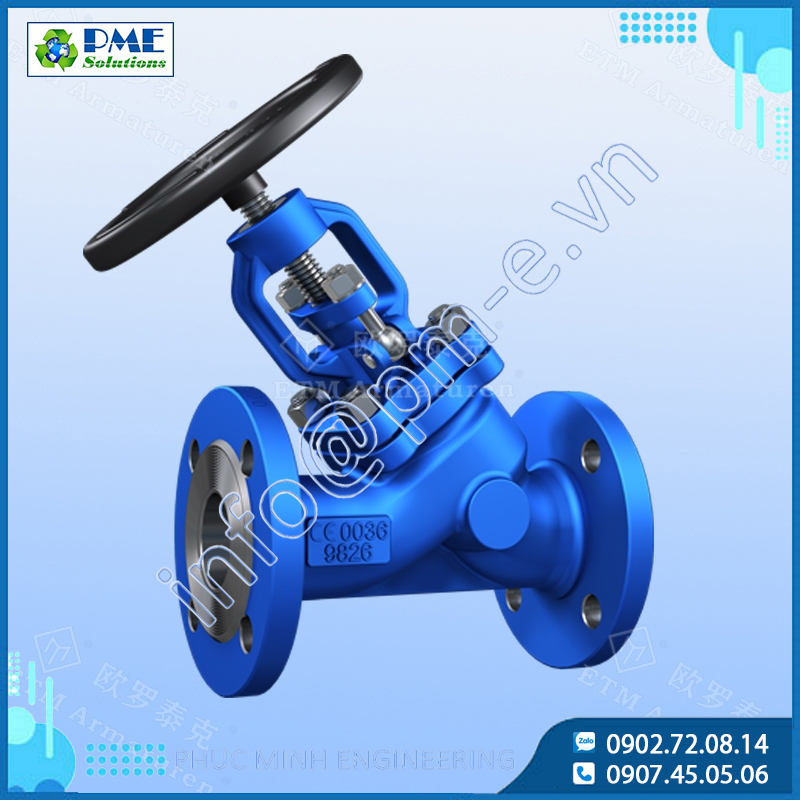

ETM Armaturen Y Pattern Globe Valve

• ETM Armaturen DIN Standard Y Pattern Gland Packing Globe Valve
• ETM Armaturen DIN Y Pattern Globe valve
• ETM Armaturen DIN Y Pattern Stop valve
• ETM Armaturen DIN Absperrventil Durchgangsform
• ETM Armaturen DIN Válvulas de globo
• ETM Armaturen DIN ventil uzavírací s klasickou ucpávkou přímý
• ETM Armaturen DIN Standard seteventiler med pakkboks (rett løp modell)
• ETM Armaturen DIN Standardında Salmastra Baskılı Glob Vana(Düz Tip)
• ETM Armaturen Van cầu chuẩn DIN (kiểu góc)

ETM Armaturen Code No. :

• ETM FIG.S.071,ETM FIG.S.072,ETM FIG.S.073

This ETM Armaturen globe valve can be used in Industry, Power stations, Flue gas purification plant, processing technology, gas supply, vapor facilities, thermal oil applications, recycling facilities, vacuum facilities, ammonia, hot water, heating technology, district

heating, cooling and freezing systems, general plant manufacturing, steam systems. This type valve is maintenance-free and like all ETM Armaturen valves - is classed leak rate “A” in accordance with EN 12266-1.

Products:

• ETM Armaturen -FIGURE S-BS/EN Standard gland packing globe valve PN 16 Bar with Flanges According to DIN EN 1092-1
• ETM Armaturen -FIGURE S-BS/EN Standard gland packing globe valve PN 25 Bar with Flanges According to DIN EN 1092-1
• ETM Armaturen -FIGURE S-BS/EN Standard gland packing globe valve PN 40 Bar with Flanges According to DIN EN 1092-1
• ETM Armaturen -FIGURE S-BS/EN Standard gland packing globe valve PN 16 Bar with Butt Weld Ends According to DIN EN 12627
• ETM Armaturen -FIGURE S-BS/EN Standard gland packing globe valve PN 25 Bar with Butt Weld Ends According to DIN EN 12627
• ETM Armaturen -FIGURE S-BS/EN Standard gland packing globe valve PN 40 Bar with Butt Weld Ends According to DIN EN 12627

Material Equivalence:

• EN Material Name-----------------------EN Number ------------Forgings-----------------ASTM Material-------------------Forgings
• EN 10213 GP240GH---------------------1.0619------------------1.0460-----------------ASTM A216 WCB-----------------A105
• EN 10213 G20Mo5-----------------------1.6220------------------1.0437-----------------ASTM A352 LCB------------------A352 LF2
• EN 10213 G17CrMo5-5------------------1.7357------------------1.7335-----------------ASTM A217 WC6-----------------A182 F11
• EN 10213 G17CrMo9-10----------------1.7379------------------1.7380 ----------------ASTM A217 WC9-----------------A182 F22
• EN 10213 GX5CrNi19-10----------------1.4308------------------1.4301-----------------ASTM A351 CF8-----------------A182 F304
• EN 10213 GX5CrNi19-11-2-------------1.4408 -----------------1.4401-----------------ASTM A351 CF8M----------------A182 F316

Features:

• Cast steel PN10 ,PN16,PN25,PN40– DN15 to DN300
• Straight-through
• Easy operating handwheel with safe operation at all working temperatures
• Solid plug made of stainless material
• Solid stem make of stainless material
• Stem sealing in graphite Raised, turning stem
• Back sealed stem Welded seat in stellite or Cr-steel
• High-tensile Gland Packing Self adjusted gland
• Flat Disc ,Parabolic & Regulation disc , Soft Seated Disc, Cone Disc, Stop Check Disc, Double Stage Disc & Balance Disc

Mediums:

• Standard: Steam, gases, hot water, thermal fluids, hot oil, process water, etc.
• Stainless Steel: Process water, aggressive media, etc.

Requirements and testing:

• The test are carried out according to DIN EN12266-1
• Shell test : nominal pressure (PN)X1.5
• Tightness of seat :nominal pressure (PN)X1.1
• Certificate of conformity in according to with PN-EN10204
• Design according to PN-EN12516-2
• Valves have been submitted for appraisal of conformity according to the directive pressure equipment directive 97/23/EC.

Installation:

• They can be installed on pipelines in a vertical or horizontal and operation only
• Direction of flow see body mark

Connection:

• Butt-Welded according to DIN EN12627; Flanged according to EN1092-1 or to customer request
• Face to face dimensions according to EN558-1 1 Series (DIN3202 F1 Series)

Operation:

• Handwheel (If required)
• Electric actuator
• Gear box
• Flange ISO5210 (Ready for actuator)
