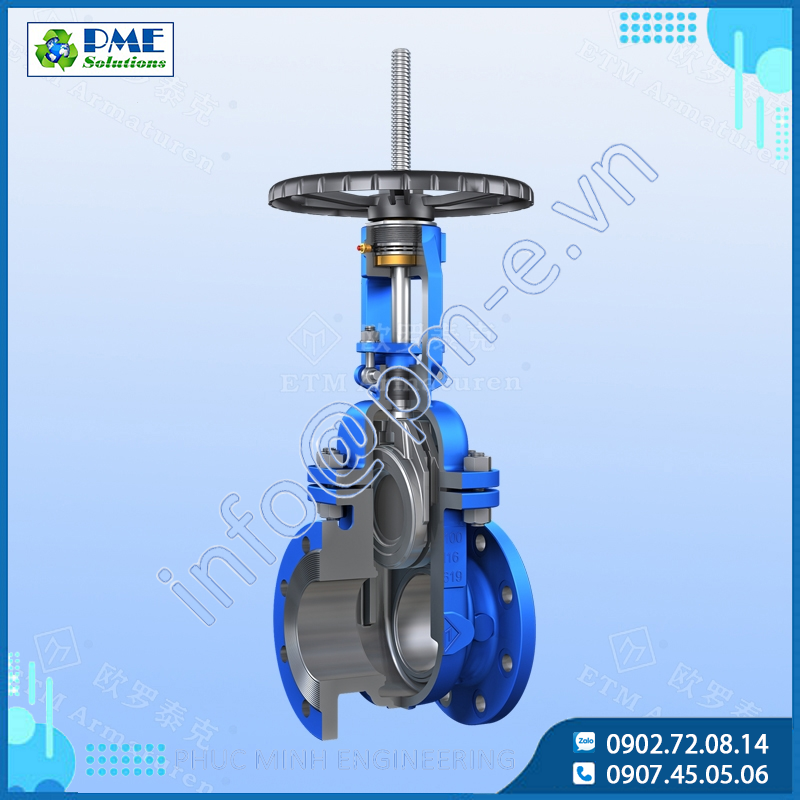

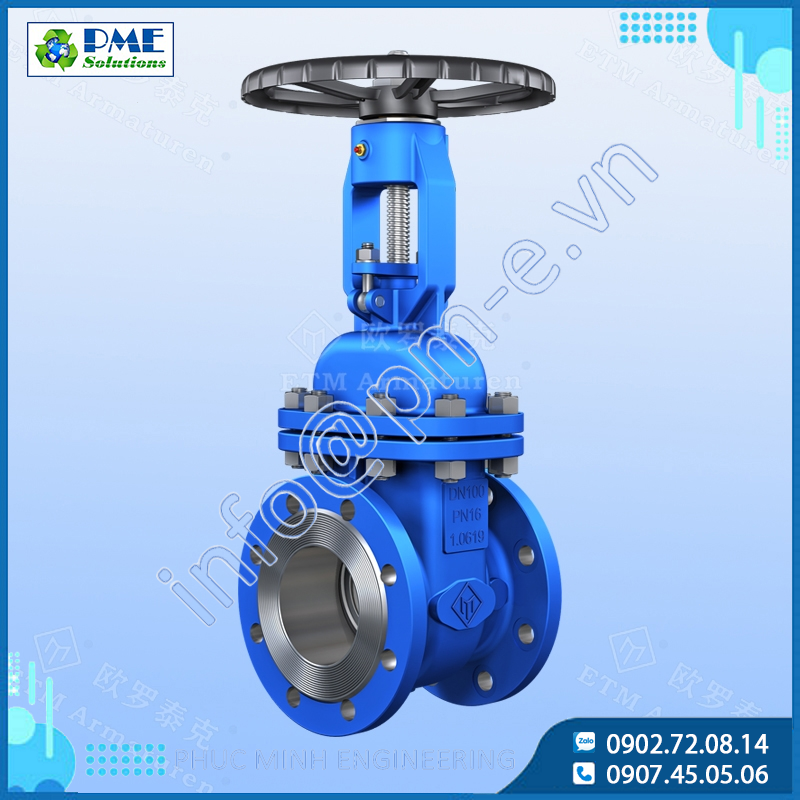

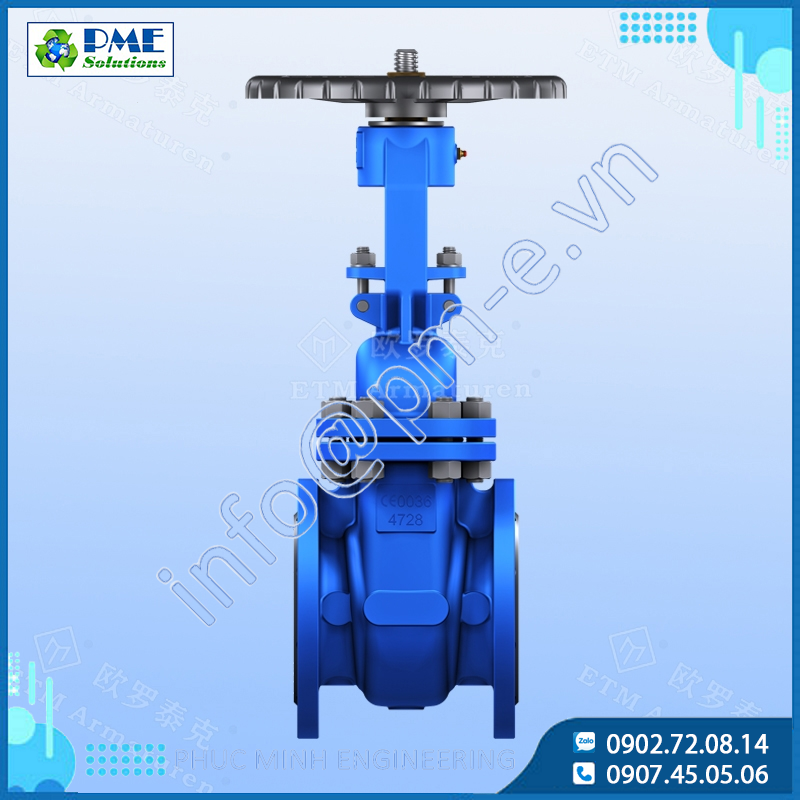

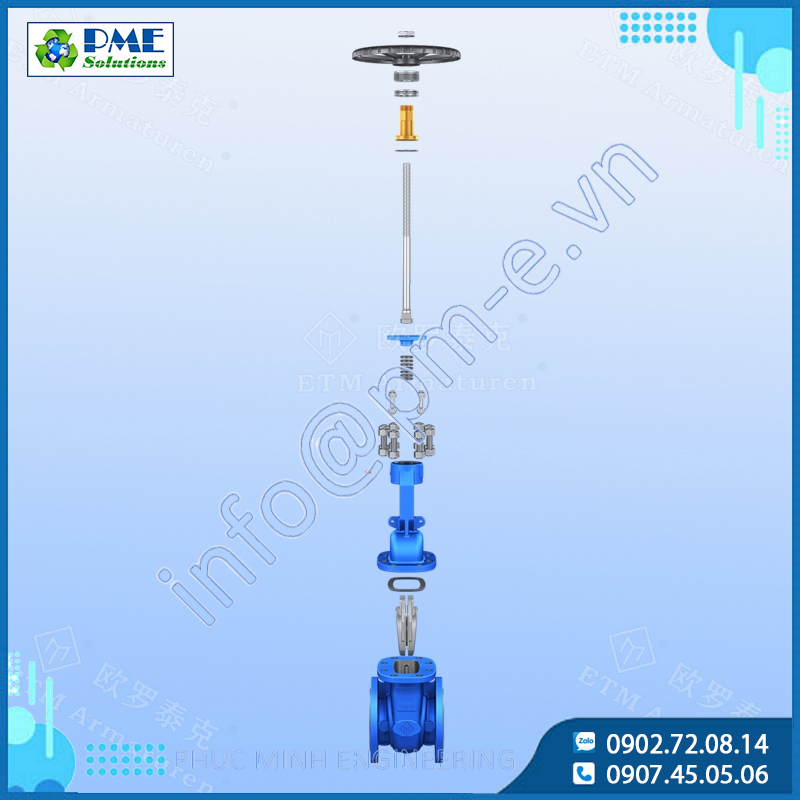

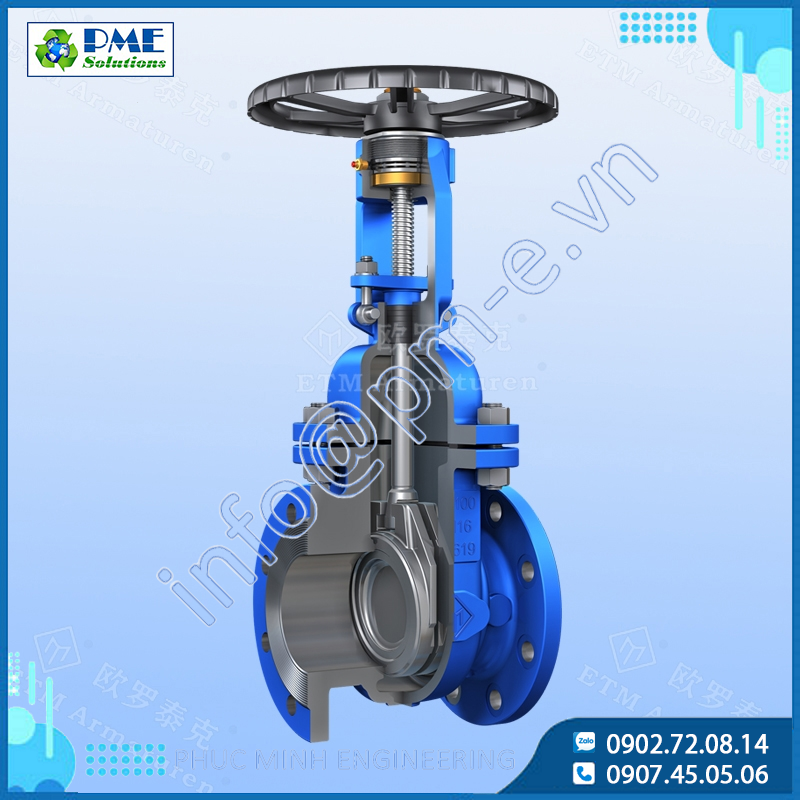

ETM Armaturen Gate Valves (F4 Type)

• ETM Armaturen Low Torque Design Gate Valves (F4 Type)
• ETM Armaturen DIN Standard F4 Gate valves / (Length acc.to DIN EN 558-1,face to face series 14 )
• ETM Armaturen DIN F4 Gate valve
• ETM Armaturen DIN absperrschieber F4
• ETM Armaturen DIN Válvulas de compuerta
• ETM Armaturen DIN F4 šoupátko stavební délka dle DIN EN558-1 serie 14
• ETM Armaturen DIN Standard F4 sluseventil (lengde iht. DIN EN 558-1, bygge lengde serie 14)
• ETM Armaturen DIN Standardında F4 Sürgülü Vana
• ETM Armaturen Van cổng chuẩn DIN kiểu F4

ETM Armaturen Code No. :

• ETM FIG.F.160

This type ETM Armaturen gate valve can be used in Industry, Power stations, Flue gas purification plant, processing technology, gas supply, vapor facilities, thermal oil applications, recycling facilities, vacuum facilities, ammonia, hot water, heating technology, district heating, cooling and freezing systems, general plant manufacturing, steam systems.

All ETM Armaturen valves - is classed leak rate “A” in accordance with EN 12266-1.

Products:

• ETM Armaturen -FIGURE F-BS/EN Standard F4 gate valve PN 10 Bar with Flanges According to DIN EN 1092-1
• ETM Armaturen -FIGURE F-BS/EN Standard F4 gate valve PN 16 Bar with Flanges According to DIN EN 1092-1

Material Equivalence:

• EN Material Name EN Number Forgings ASTM Material Forgings
• EN Material Name-----------------------EN Number ------------Forgings-----------------ASTM Material-------------------Forgings
• EN 10213 GP240GH---------------------1.0619------------------1.0460-----------------ASTM A216 WCB-----------------A105
• EN 10213 G20Mo5-----------------------1.6220------------------1.0437-----------------ASTM A352 LCB------------------A352 LF2
• EN 10213 G17CrMo5-5------------------1.7357------------------1.7335-----------------ASTM A217 WC6-----------------A182 F11
• EN 10213 G17CrMo9-10----------------1.7379------------------1.7380 ----------------ASTM A217 WC9-----------------A182 F22
• EN 10213 GX5CrNi19-10----------------1.4308------------------1.4301-----------------ASTM A351 CF8-----------------A182 F304
• EN 10213 GX5CrNi19-11-2-------------1.4408 -----------------1.4401-----------------ASTM A351 CF8M----------------A182 F316

Features:

• Cast steel PN10 ,PN16, DN40 to DN1000
• Length acc.to DIN EN 558-1,face to face series 14 (DIN3202 series F4)
• Rising, non rotating stem
• Non rising stem
• Welded seat in stellite or Cr-steel
• Solid stem make of stainless material
• Full port design Full length wedge guides
• Stem sealing in graphite Raised, turning stem
• Back sealed stem Welded seat in stellite or Cr-steel
• High-tensile Gland Packing Self adjusted gland
• Top Flange to ISO 5210
• Gear operated
• Electric actuator
• Position indicator
• Locking / interlock
• Stem protection
• Stem extension
• Drain plug
• By pass

Mediums:

• Standard: Steam, gases, hot water, thermal fluids, hot oil, process water, etc.
• Stainless Steel: Process water, aggressive media, etc.

Requirements and testing:

• The test are carried out according to DIN EN12266-1
• Shell test : nominal pressure (PN)X1.5
• Tightness of seat :nominal pressure (PN)X1.1
• Certificate of conformity in according to with PN-EN10204
• Design according to PN-EN12516-2
• Valves have been submitted for appraisal of conformity according to the directive pressure equipment directive 97/23/EC.

Installation:

• They can be installed on pipelines in a vertical or horizontal and operation only when fully open or closed

Connection:

• Flanged according to EN1092-1 or to customer request
• Face to face dimensions according to EN558-1 14 Series (DIN3202 Series F4)

Operation:

• Handwheel (If required)
• Electric actuator
• Gear box
• Flange ISO5210 (Ready for actuator)
