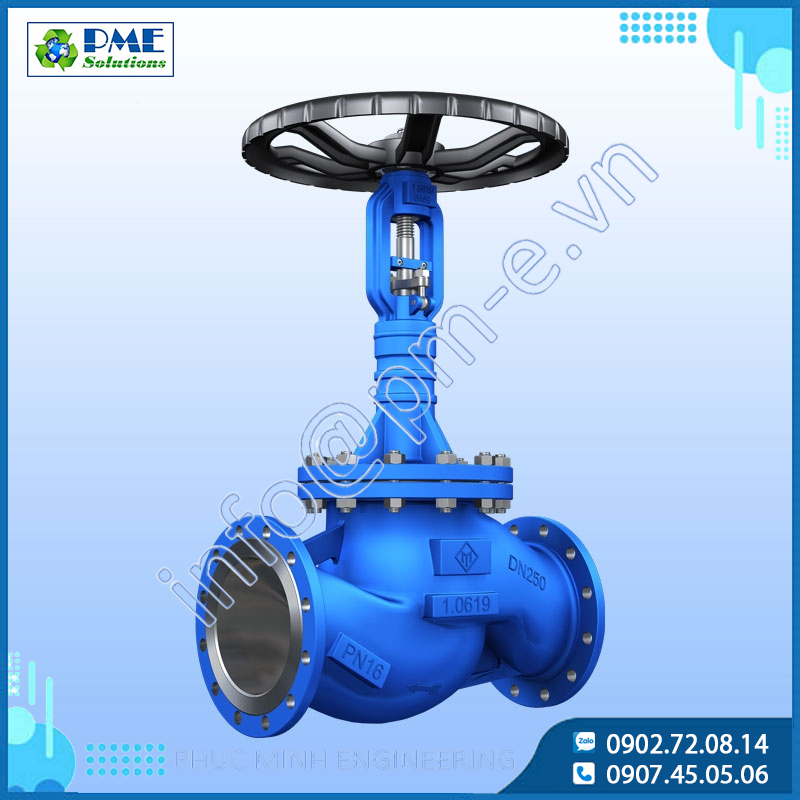

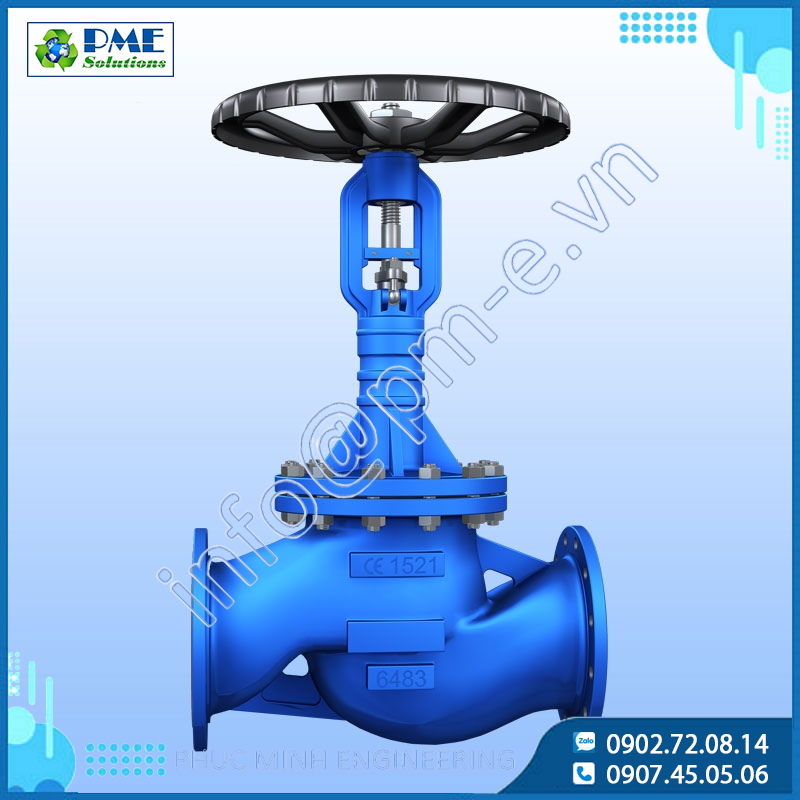

ETM Armaturen Long life Bellows Globe Valve

• ETM Armaturen DIN Standard Long Life-Heavy Duty Bellows Sealed Stop Valves
• ETM Armaturen DIN Long life bellows Seal Stop Valve
• ETM Armaturen DIN Long life bellows globe valve
• ETM Armaturen DIN Long bonnet bellows globe valve
• ETM Armaturen DIN Faltenbalgventil lange Bauform
• ETM Armaturen DIN Válvulas de fuelle de altas prestaciones
• ETM Armaturen DIN ventil uzavírací s prodlouženým vlnovcem
• ETM Armaturen DIN Standard forseglet seteventil med belg og lang levetid
• ETM Armaturen DIN Standardında Uzun Ömürlü Metal Körüklü Vana
• ETM Armaturen Van cầu Siêu Bền dùng cho dầu nóng làm kín bằng bellows chuẩn DIN

ETM Armaturen Code No. :

• ETM FIG.L.061,ETM FIG.L.062,ETM FIG.L.063
• The ETM Armaturen "ALSE" is reliably sealed, even under the most adverse conditions. The long life bellows-type valve is maintenance-free and like all ETM Armaturen valves - is classed leak rate “A” in accordance with EN 12266-1.

Products:

• ETM Armaturen-ALSE-BS/EN Standard long life bellows sealed stop valve PN 16 Bar with Flanges According to DIN EN 1092-1
• ETM Armaturen-ALSE-BS/EN Standard long life bellows sealed stop valve PN 25 Bar with Flanges According to DIN EN 1092-1
• ETM Armaturen-ALSE-BS/EN Standard long life bellows sealed stop valve PN 40 Bar with Flanges According to DIN EN 1092-1
• ETM Armaturen-ALSE-BS/EN Standard long life bellows sealed stop valve PN 16 Bar with Butt Weld Ends According to DIN EN 12627
• ETM Armaturen-ALSE-BS/EN Standard long life bellows sealed stop valve PN 25 Bar with Butt Weld Ends According to DIN EN 12627
• ETM Armaturen-ALSE-BS/EN Standard long life bellows sealed stop valve PN 40 Bar with Butt Weld Ends According to DIN EN 12627

Material Equivalence:

• EN Material Name-----------------------EN Number ------------Forgings-----------------ASTM Material-------------------Forgings
• EN 10213 GP240GH---------------------1.0619------------------1.0460-----------------ASTM A216 WCB-----------------A105
• EN 10213 G20Mo5-----------------------1.6220------------------1.0437-----------------ASTM A352 LCB------------------A352 LF2
• EN 10213 G17CrMo5-5------------------1.7357------------------1.7335-----------------ASTM A217 WC6-----------------A182 F11
• EN 10213 G17CrMo9-10----------------1.7379------------------1.7380 ----------------ASTM A217 WC9-----------------A182 F22
• EN 10213 GX5CrNi19-10----------------1.4308------------------1.4301-----------------ASTM A351 CF8-----------------A182 F304
• EN 10213 GX5CrNi19-11-2-------------1.4408 -----------------1.4401-----------------ASTM A351 CF8M----------------A182 F316

Features:

• Cast steel PN10 ,PN16,PN25,PN40– DN15 to DN400
• Straight-through or angle type

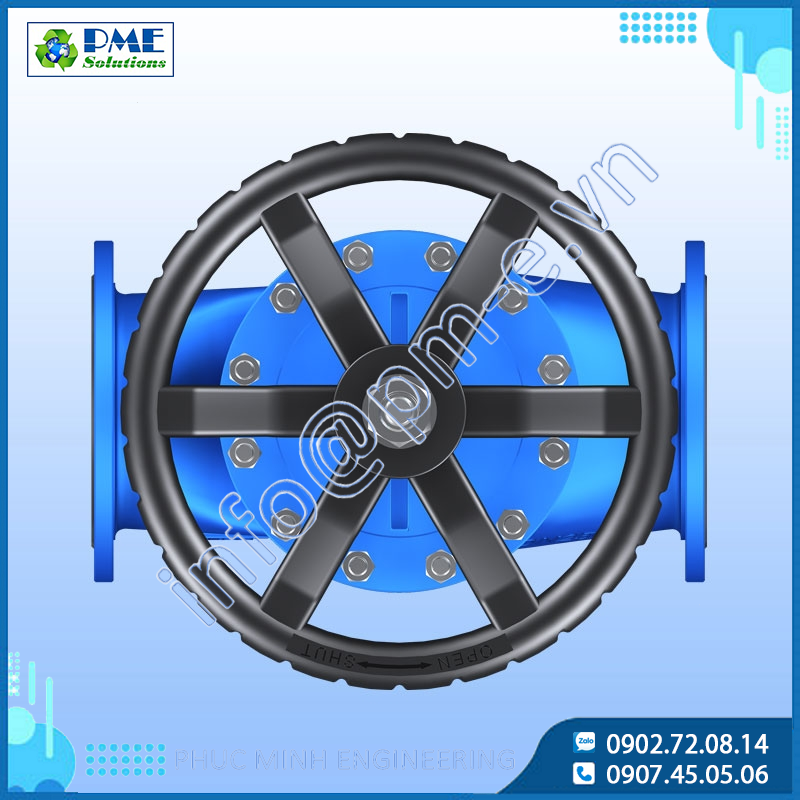

• Easy operating handwheel with safe operation at all working temperatures
• Energy-saving bell of chrome nickel steel with air cushion between bell and housing

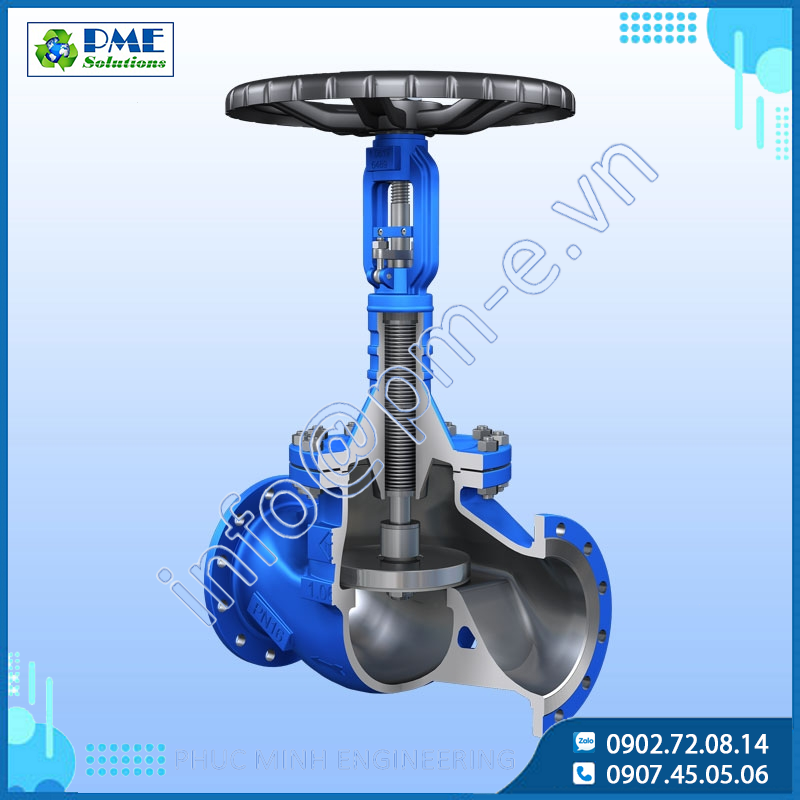

• Bellows of chrome-nickel steel (Long bellows SS316Ldesign)
• Internals (stem, disk and seat of stainless steel)

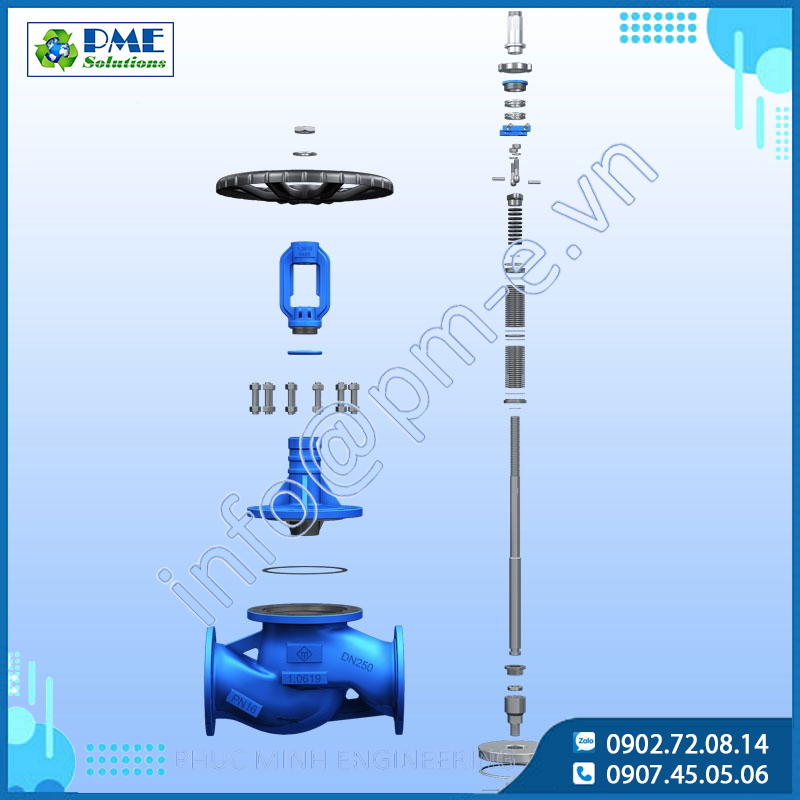

• Disk flexibly attached to stem for easy replacement and to prevent vibration transfer to bellows
• Flat Disc ,Parabolic & Regulation disc , Soft Seated Disc, Cone Disc, Stop Check Disc, Double Stage Disc & Balance Disc
• Storage of oil device
• Position indicator as standard
• Long bonnet design.
• Gland flange design.

Mediums:

• Standard: Steam, gases, hot water, thermal fluids, hot oil, process water, vacuum facilities, ammonia etc.
• Stainless Steel: Process water, aggressive media, etc.

Requirements and testing:

• The test are carried out according to DIN EN12266-1
• Shell test : nominal pressure (PN)X1.5
• Tightness of seat :nominal pressure (PN)X1.1
• Certificate of conformity in according to with PN-EN10204
• Design according to PN-EN12516-2
• Valves have been submitted for appraisal of conformity according to the directive pressure equipment directive 97/23/EC.

Installation:

• They can be installed on pipelines in a vertical or horizontal and operation only
• Direction of flow see body mark

Connection:

• Butt-Welded according to DIN EN12627; Flanged according to EN1092-1 or to customer request
• Face to face dimensions according to EN558-1 1 Series (DIN3202 F1 Series)

Operation:

• Handwheel (If required)
• Electric actuator
• Gear box.
• Flange ISO5210 (Ready for actuator)
