ETM Armaturen Code No. :

• ETM FIG.LB.450,ETM FIG.LB.451,ETM FIG.LB.452

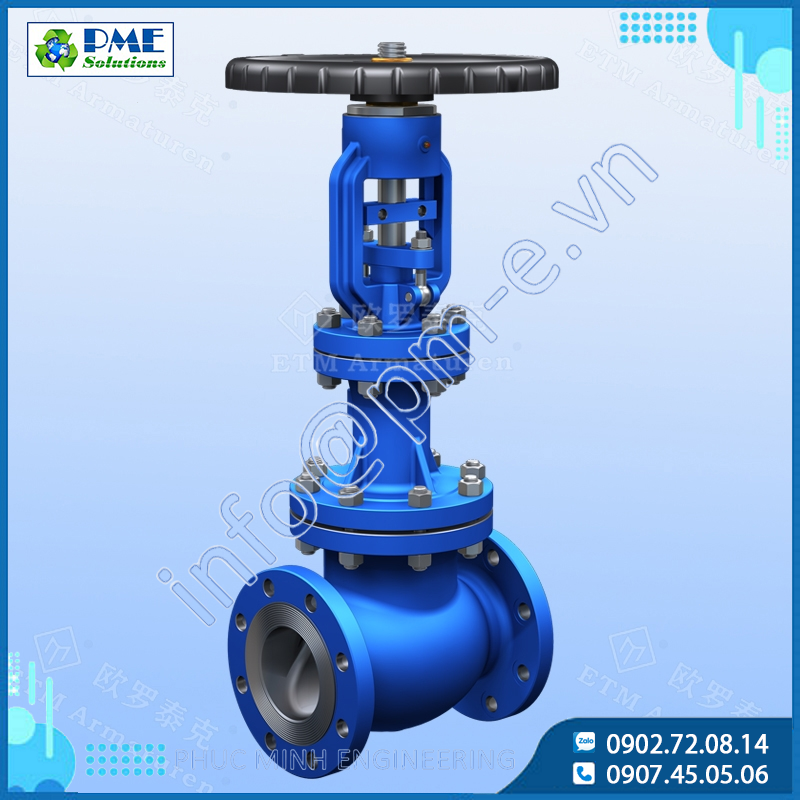

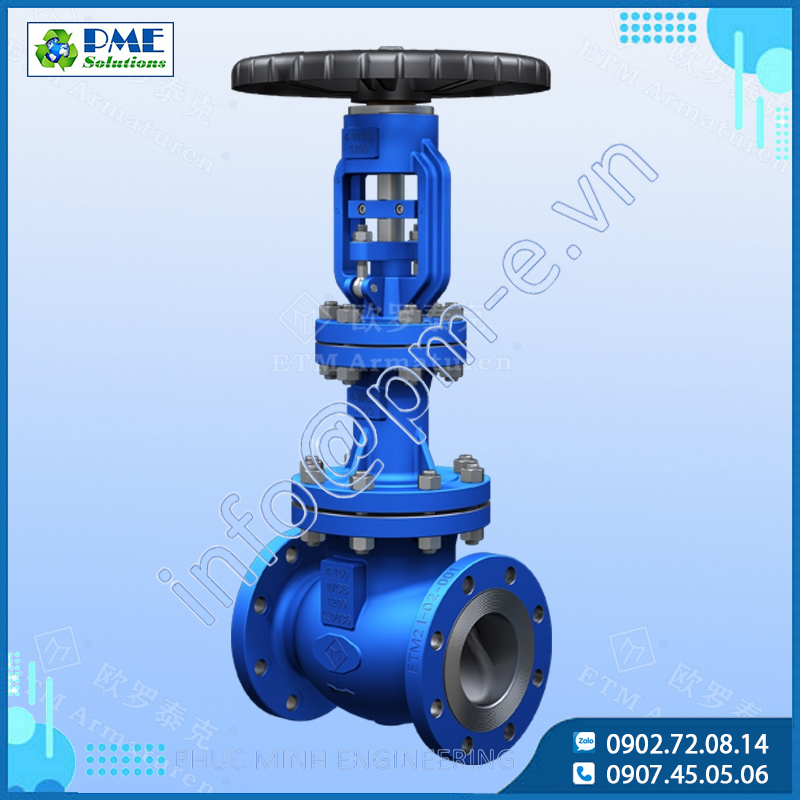

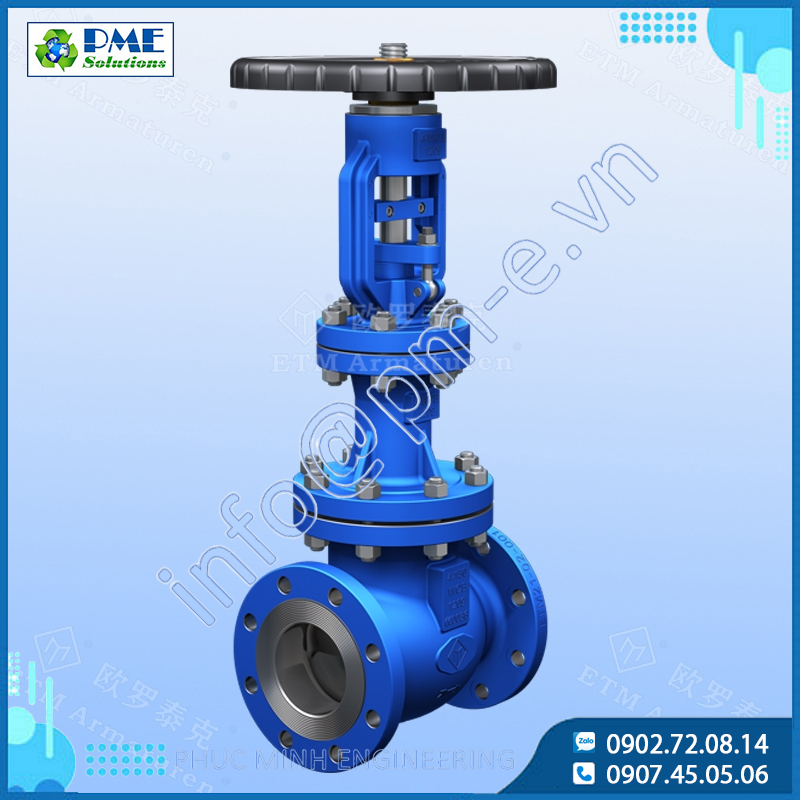

The ETM Armaturen "POWER" is reliably sealed, even under the most adverse conditions. The bellows-type valve is maintenance-free and like all ETM Armaturen valves - is classed leak rate “A” in accordance with API 598.

Products:

• ETM Armaturen-POWER-BS 1873 Standard bellows globe valve Class 150LB with Flanges According to ASME B16.5
• ETM Armaturen-POWER-BS 1873 Standard bellows globe valve Class 300LB with Flanges According to ASME B16.5
• ETM Armaturen-POWER-BS 1873 Standard bellows globe valve Class 600LB with Flanges According to ASME B16.5
• ETM Armaturen-POWER-BS 1873 Standard bellows globe valve Class 150LB with Butt weld end According to ASME B16.25
• ETM Armaturen-POWER-BS 1873 Standard bellows globe valve Class 300LB with Butt weld end According to ASME B16.25
• ETM Armaturen-POWER-BS 1873 Standard bellows globe valve Class 600LB with Butt weld end According to ASME B16.25

Material Equivalence:

• EN Material Name-----------------------EN Number ------------Forgings-----------------ASTM Material-------------------Forgings
• EN 10213 GP240GH---------------------1.0619------------------1.0460-----------------ASTM A216 WCB-----------------A105
• EN 10213 G20Mo5-----------------------1.6220------------------1.0437-----------------ASTM A352 LCB------------------A352 LF2
• EN 10213 G17CrMo5-5------------------1.7357------------------1.7335-----------------ASTM A217 WC6-----------------A182 F11
• EN 10213 G17CrMo9-10----------------1.7379------------------1.7380 ----------------ASTM A217 WC9-----------------A182 F22
• EN 10213 GX5CrNi19-10----------------1.4308------------------1.4301-----------------ASTM A351 CF8-----------------A182 F304
• EN 10213 GX5CrNi19-11-2-------------1.4408 -----------------1.4401-----------------ASTM A351 CF8M----------------A182 F316

Features:

• Cast steel ,Class 150LB,Class 300LB,Class 600LB– Nps 2 Inch to Nps 18 Inch
• Straight-through

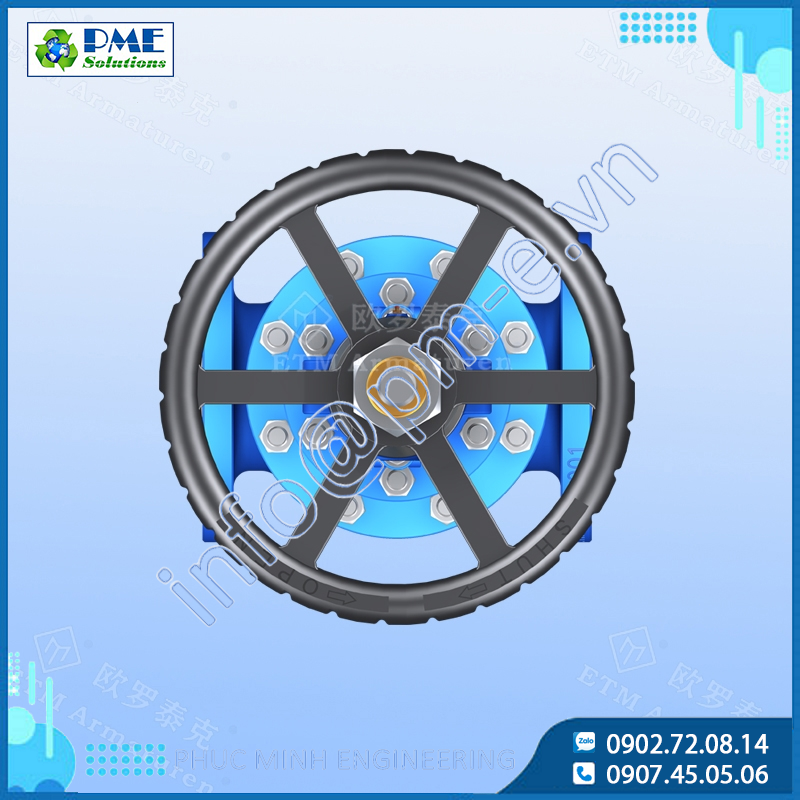

• Easy operating handwheel with safe operation at all working temperatures

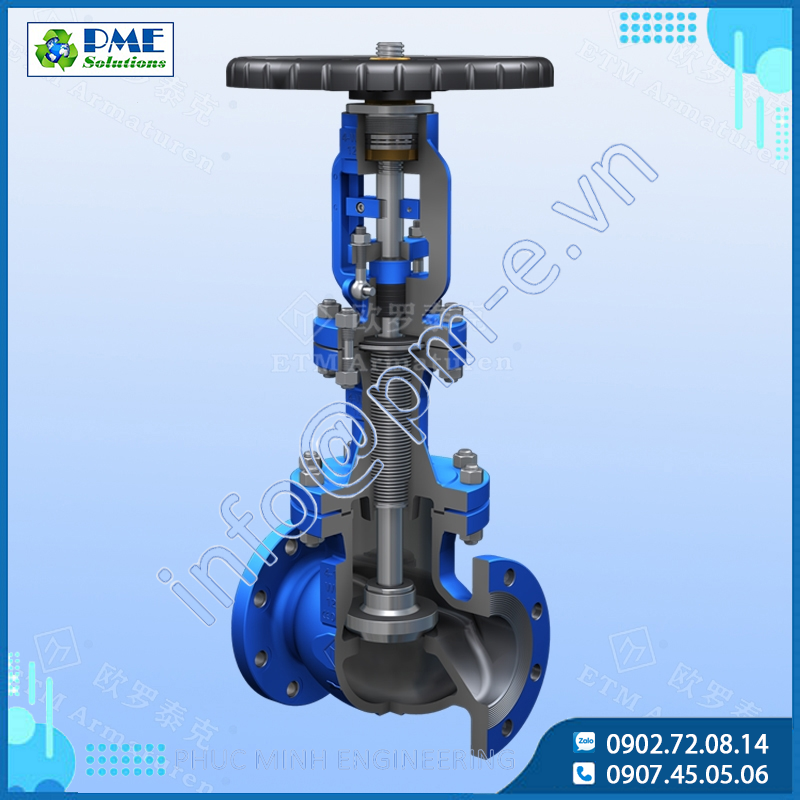

• Energy-saving bell of chrome nickel steel with air cushion between bell and housing
• Bellows of chrome-nickel steel
• Internals (stem, disk and seat of stainless steel)
• Disk flexibly attached to stem for easy replacement and to prevent vibration transfer to bellows
• Flat Disc ,Parabolic & Regulation disc , PTFE Soft Seated Disc, Cone Disc, Stop Check Disc, Double Stage Disc & Balance Disc
• Storage of oil device
• Position indicator as standard
• Heat dissipating bonnet design.
• Locking Device / Stroke Limiter

Mediums:

• Standard: Steam, gases, hot water, thermal fluids, hot oil, process water, vacuum facilities, ammonia etc.
• Stainless Steel: Process water, aggressive media, etc.

Requirements and testing:

• The test are carried out according to API 598
• Shell test : nominal pressure (PN)X1.5
• Tightness of seat :nominal pressure (PN)X1.1
• Certificate of conformity in according to with PN-EN10204
• Design according to PN-EN12516-2
• Valves have been submitted for appraisal of conformity according to the directive pressure equipment directive 2014/68/EU.

Installation:

• They can be installed on pipelines in a vertical or horizontal and operation only
• Direction of flow see body mark

Connection:

• Butt-Welded according to ASME B16.25; Flanged according to ASME B16.5 or to customer request
• Face to face dimensions according to ASME B16.10 (EN 558-2)

Operation:

• Handwheel (If required)
• Electric actuator
• Gear box.
• Flange ISO5210 (Ready for actuator)
