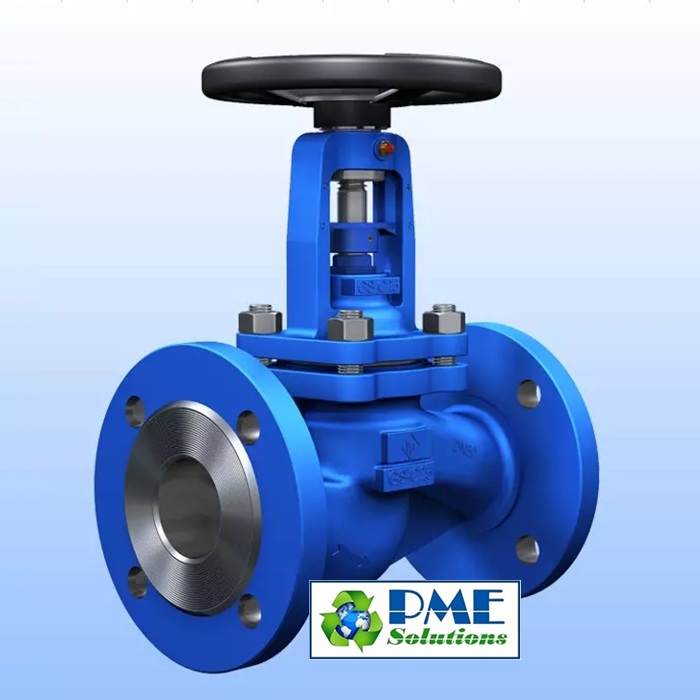

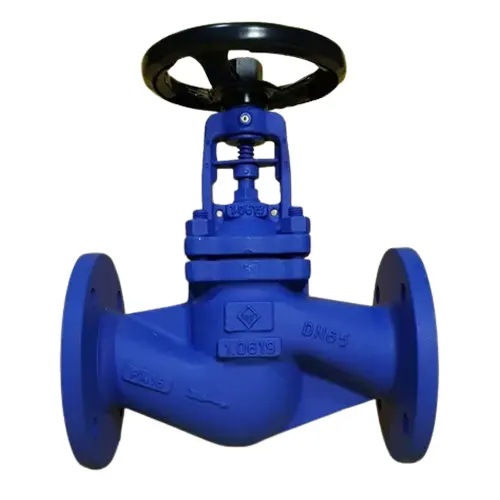

1. Introduction to ETM Steel Globe Valve products

• ETM steel globe valve or ETM steel steam valve is a type of industrial valve belonging to the globe valve line manufactured by ETM Armaturen. This is a famous valve manufacturer founded in 1966 specializing in the production of valve equipment and accessories for gasoline, oil, steam, electricity, chemicals, petrochemicals, pulp, paper systems... ETM globe valves are usually made of GS-C25 steel body material, valve disc is made of A105 Cr13 material, sealed with SS316L bellows, maximum working temperature can be up to 450 degrees C.
• The valve line is divided into two main types: the type used for steam and the type used for hot oil, the valve's working pressure also has many types from PN16, PN25, PN40.
• Currently, the sizes of this valve line are usually from DN15 to DN250 for the available form in the Vietnamese market, larger sizes need to be ordered.
• Connecting the valve to the pipeline is the DIN standard flange connection method.
• Currently, ETM steel globe valve products are exported to many countries in the world such as Germany, Russia, England, France, America, Japan, Italy... In Vietnam, projects using ETM globe valves are all large-scale projects.

2. Advantages and disadvantages of ETM steel globe valve products

Advantages of ETM steel globe valve products

• As we know, ETM steel globe valves are exported to major countries around the world, this product has outstanding advantages in product quality. ETM valves are always highly appreciated for their quality and durability.
• The production line of ETM Armaturen is a modern line with high-precision equipment, so there is no technical error in the product.
• The valve is painted with a thick coating that is highly aesthetic when used.
• High working temperature, high working pressure is also a great advantage of the valve.
• The valve is sealed with Bellows, so it has extremely high tightness during use.

Disadvantages of ETM steel globe valve products

• Beautiful, high quality goods always go hand in hand with high valve prices. Currently, ETM steel globe valves have higher prices than other Chinese globe valve products.

3. ETM steel globe valve product classification

ETM steel steam valve products

• ETM steel globe valves used for hot steam or ETM steel steam valves are a type of hot steam globe valve or high temperature environments. ETM steel steam valves have main models P.061 with working pressure 16bar, connected to BS PN16 or DIN PN16 flange. Model P.062 with working pressure PN15 connected to DIN PN25 or BS PN25 flange. Model P.063 with working pressure PN40 connected to DIN PN40 or BS PN40 flange.

4. ETM steel globe valve products for hot oil

• ETM steel globe valve for hot oil is a type of valve specifically used for high temperature hot oil systems, normal temperature oil systems. This type of valve usually has a slightly higher shaft than ETM steel steam valves.
• The main model of this valve line is L.061 used for 16bar pressure pipeline system, connected to BS PN16 or DIN PN16 flange. L.062 used for 25bar pressure pipeline system, connected to DIN PN25 or BS PN25 flange. L.063 used for 40 bar pressure pipeline system, connected to BS PN40 or DIN PN40 flange.

5. Practical application of ETM steel globe valve products

As we can see above, ETM steel globe valves are often used for two main environments: hot steam and hot oil. In practice, it is also used as a high-end product for water systems. Here are some pipeline systems using the product:

• Petrochemical refining system
• Boiler steam system
• Oil distillation system
• Petroleum pumping system
• Compressed air system
• Clean water system, high temperature water, water with hot steam…

6. ETM steel globe valve product quotation

ETM steel globe valves are a high-end product line that is specialized in exporting to Europe, so the price is quite high compared to other low-quality Chinese valves. Below we would like to provide a valve price list for your reference. Please note that this is a reference price list that can be highly discounted for large orders:

After viewing the product, customers can contact Phuc Minh Technical Company directly to purchase. Our company is a reputable supplier that is always committed to providing customers with genuine industrial valve products, high quality, cheapest price, full certificates, 12-month warranty, delivery support for large orders.

Phuc Minh Engineering Co., Ltd. (PME) is proud to be the official distributor of ETM steam valves in Vietnam. We are committed to providing high-quality products at competitive prices, with readily available stock and dedicated technical support services. Contact us now for expert advice and the best pricing!
