VC Series/VS1C/SA3 - Automatic Air Vents

Price: Contact

  • Model: VC Series/VS1C/SA3
  • Trademark: TLV
  • Origin: Japan
  • Automatic Air Vents

    VC Series/VS1C/SA3

    Continuously discharge air and gas that build up inside water supply pipes

    Automatic air vents feature a relatively small orifice and are suitable for discharging air and other gases during normal operation. By installing them in places where air tends to accumulate, it is possible to prevent issues caused by air trapped in water supply pipes.

    Air vents can also help to prevent a vacuum from forming in pipes. When the main valve is open and pressure inside the pipes falls below the pressure of the surrounding atmosphere, air will enter the valve, preventing vacuum conditions from forming and allowing liquid to be easily passed downstream.

    Due to the relatively smaller discharge capacity of automatic air vents, in cases where it is necessary to discharge large amounts of air/gas rapidly upon startup, it is best to use these products in combination with a dedicated rapid initial air vent.

    Air Vents Pamphlet (1930 KB)

    Benefits and Features

    Automatic Air Vents (all series)
    • Simple construction with no levers or hinges
    • Only one moving part: the Free Float®. This eliminates concentrated wear and provides long service life.
    • Can function as a vacuum breaker by allowing air to flow in when a vacuum forms
    • Provides a tight, reliable seal
    VC Series
    • Precision-ground float, rubber valve seat
    VS1C Series
    • High precision-ground float, 3-point seating
    • Can be used with liquids with specific gravities as low as 0.8
    SA3 Series
    • Light-weight, compact
    • Auxiliary valve seat enables maintenance during operation
    • Provides a tight seal, even at pressures as low as 0.01 MPa

    Application Areas

    Automatic air vents are suitable for:

    • processes which require the continuous discharge of air/gas under normal operation conditions
    • water supply pipes, cooling & heating equipment (SA3, VC)
    • use in small and narrow installation spaces (SA3)
    • fan coils, radiators, and other air conditioning equipment (SA3)
    • suitable for non-water liquid processes (VSC1, non-flammable and non-corrosive liquids only)

      *When rapid discharge of large quantities of air is required upon startup, please use together with a rapid initial air vent.

    Product Details

    Model Photo Connection Body Material Fluid Applicable PMO (MPaG) Min. Operating Pressure (MPaG) TMO (°C) Discharge Capacity
    (ℓ/min)(*1)
    Specifications Manual
    VC2

    Screwed Bronze
    (CAC407)
    Water 0.5 0.05 90 25 Specifications Manual
    VC3 Screwed Cast Iron
    (FC250)
    Water 0.6 0.1 90 90
    VC4 Screwed Cast Iron
    (FC250)
    Water 1.0 0.1 90 380

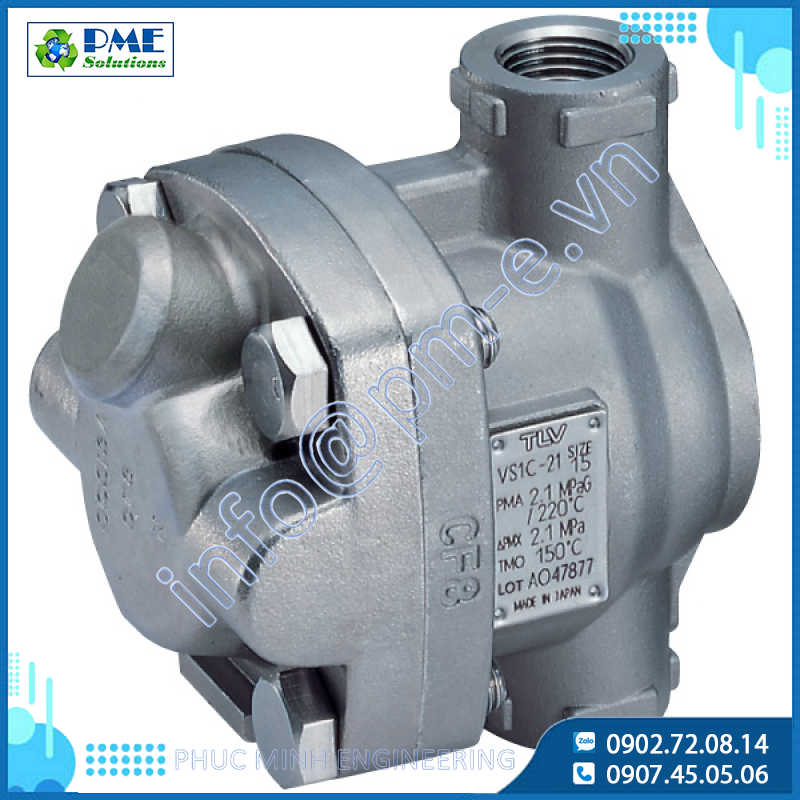

    VS1C

    Screwed Stainless Steel
    (ASTM A351
    Gr.CF8)

    Water

    Other Liquids

    2.1 0.01 150 170 Specifications Manual
    SA3

    Screwed Brass Water 0.3/1.0 0.01/0.1 100 9.2 Enquire Manual
    VS3

    End Clamp Stainless Steel
    (ASTM A351
    Gr.CF8)

    Water

    Other Liquids

    0.6 0.01 150 110 Specifications Manual
    • PMO = Maximum Operating Pressure
    • TMO = Maximum Operating Temperature
    • The latest version of each product's instruction manual can be found on this page.
