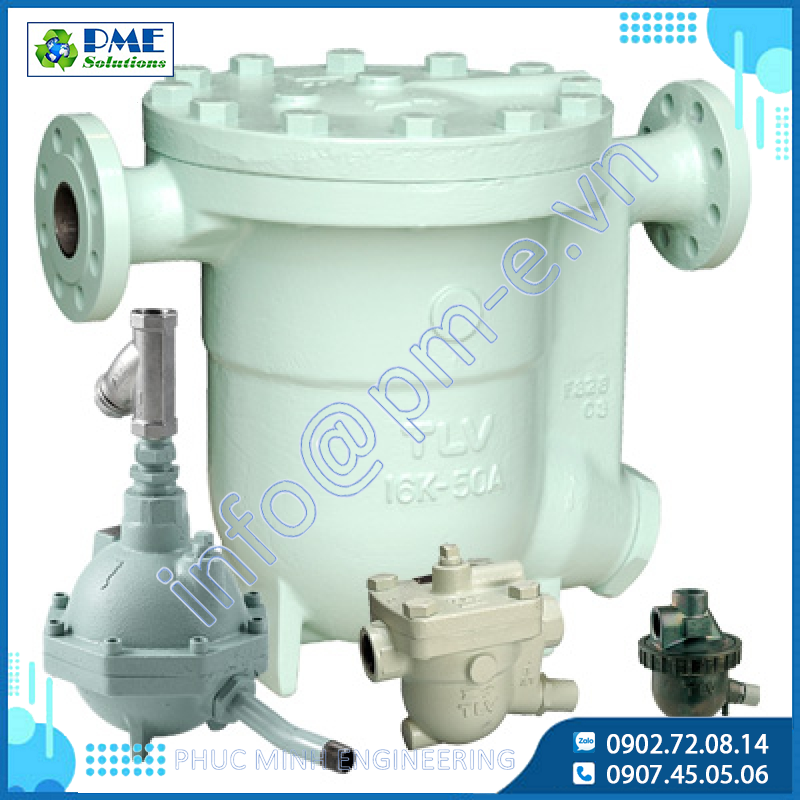

JA Series/JAH Series/G8 - TLV Free Float® Air Traps

Price: Contact

  • Model: JA Series/JAH Series/G8
  • Trademark: TLV
  • Origin: Japan
  • Free Float® Air Traps

    JA Series/JAH Series/G8

    Traps for the removal of condensate from air lines.

    In today's world of automation, compressed air is used in many industries including high-precision machinery and instrumentation. After air is compressed it is cooled by an after-cooler or in a receiver tank, where condensate is formed from water droplets in the air.

    This condensate also occurs in compressed air distribution piping, leading to rust and fluctuation in high-precision machinery, as well as causing a reduction in product quality.

    TLV air traps protect your equipment and products by discharging condensate automatically.

    Air & Drain Traps Pamphlet (1814 KB)

    Benefits and Features

    Long Service Life

    • The high precision spherical float rotates, allowing its entire surface to function as valve sealing surfaces and thus ensuring long service life.

    Continuous Condensate Discharge

    • The float adjusts quickly to changes in condensate flow adjusting the valve seat opening, ensuring continuous rapid discharge without condensate backup.

    Rubber Valve Seat for Tight Sealing

    • The standardized rubber valve seat allows for tight sealing with the precision ground float.

    Valve Seat Cleaning Mechanism

    • Equipped with an external plunger unit, blockage caused by oils and/or scale can be easily eliminated.(JA Series / JAH Series)

    Application Areas

    JA Series
    • Discharge of condensate in air lines (end of piping after receiver tanks, after coolers, etc.)
    • Small compressed air lines (JA3D, JA3, JAF3)
    • Medium compressed air lines (JA5, JAF5)
    • Larger compressed air lines (JA7, JA7.2, JAH7.2R, JA7.5, JAH7.5R, JA8, JAH8R)
    G8
    • Designed to discharge high viscosity condensate, such as when oil is mixed in with the condensate

    Product Details

    Model Photo Connection Piping Orientation Body Material PMO (MPaG) TMO (℃) Condensate Load (kg/h) Specifications Manual
    JA3D

    Screwed Vertical or Horizontal Zinc Alloy
    (ZDC2)
    1.6 100 230 Specifications Manual
    JA3

    Screwed Horizontal Ductile Cast Iron
    (FCD450)
    1.6 100 275 Specifications Manual
    JAF3 Flanged Cast Iron
    (FCV400)
    JA5

    Screwed Horizontal Ductile Cast Iron
    (FCD450)
    1.6 100 455 Specifications Manual
    JAF5 Flanged
    JA7

    Flanged Horizontal Cast Iron
    (FCV400)
    1.6 100 1620 Specifications Manual
    JA7.2

    Flanged Horizontal Cast Iron
    (FCV400)
    1.6 150 9410 Specifications Manual
    JA7.5

    Flanged Horizontal Cast Iron
    (FC250)
    1.6 150 18710 Specifications Manual
    JA8

    Flanged Horizontal Cast Iron
    (FC250)
    1.6 150 25770 Specifications Manual
    JAH7.2R

    Socket Welded Horizontal Carbon Steel
    (ASTM A216
    Gr. WCB)
    4.0 150 9410 Specifications Manual
    Flanged
    JAH7.5R

    Socket Welded Horizontal Carbon Steel
    (ASTM A216
    Gr. WCB)
    4.0 150 18710 Specifications Manual
    Flanged
    JAH8R

    Socket Welded Horizontal Carbon Steel
    (ASTM A216
    Gr. WCB)
    4.0 150 25770 Specifications Manual
    Flanged
    G8

    Screwed Horizontal Cast Iron
    (FC250)
    1.0 100 1340 Enquire Manual
    • PMO = Maximum Operating Pressure
    • TMO = Maximum Operating Temperature

    The latest version of each product's instruction manual can be found on this page.
