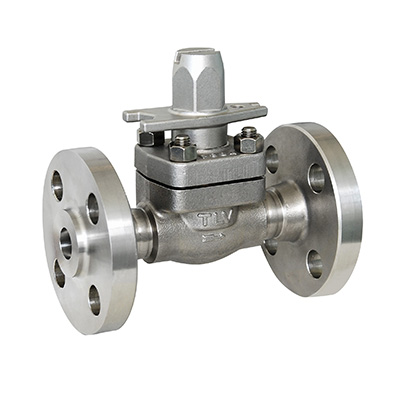

BD800 - Bypass Blow Valves

Price: Contact

  • Model: BD800
  • Trademark: TLV
  • Origin: Japan
  • Bypass Blow Valves

    BD800

    Valves that ensure reliable, high sealing performance after bypass blow.

    Periodic maintenance of steam system is followed by blowdown on bypass lines by supplying high pressure steam at start-up. However, globe valves often installed on bypass lines are commonly susceptible to internal leakage as the build-up of dirt and scale and the erosion of valve trim prevent the valve from closing completely. The BD800 was developed to eliminate these problems.

    Bypass Blow Valve Pamphlet (1481 KB)



    Benefits and Features

    • Prevents Leakage
      • Gland packing proven in high pressure applications prevents external leakage.
    • Scale Removal Function
      • The inline scale removal function allows the removal of scale and dirt by operation of the valve, preventing clogging and reducing wear on the valve seat. See the instruction manual for details.
    • Highly Durable
      • Highly durable materials resistant to erosion and corrosion.
    • Easy Inline Maintenance
      • Gland packing, valve stem, valve seat, and gaskets replaceable inline.

    Application Areas

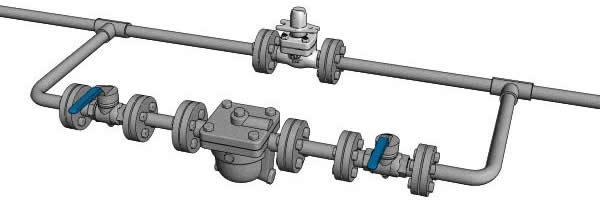

    • High temperature and high pressure applications, such as steam trap bypass lines.
    • Bypass or other lines: for blowdown or elimination of steam locking



    Product Details


    Model Photo Connection Size Body Material Port Operation PMO (MPaG) TMO (°C) Catalogue Manual
    BD800



    Screwed 15
    20
    25
    Stainless Steel (ASTM A182 Gr.F304) Reduced Port By hand 6.5 425 Specifications Contact PME
    Socket Welded
    Flanged
    • PMO = Maximum Operating Pressure
    • TMO = Maximum Operating Temperature
