Air Vents for Steam

LA Series

Continuously discharge air and gas that build up inside steam supply pipes

These air vents are used to discharge air that builds up inside steam supply pipes and in steam-using equipment.

The valve operates based on the difference between the temperatures of air and steam. The built-in X-element is used to detect this temperature difference, enabling the vent to discharge not only initial air upon startup, but also air which enters the vent during normal operation. This makes these air vents the ideal choice for batch processes.

Air Vents Pamphlet (1930 KB)

Product Details

Model	Photo	Connection	Shape	Body Material	PMO (MPaG)	TMO (°C)	Air Venting Capacity (ℓ/min)*	Catalogue	Manual

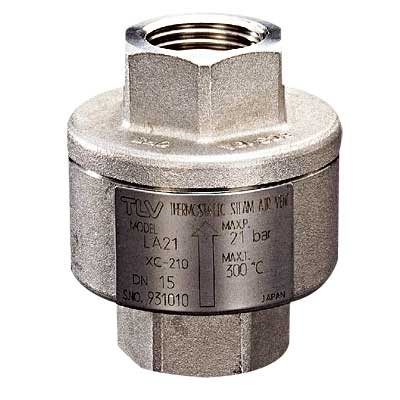

LA21		Screwed	Straight	Stainless (ASTM A351 Gr.CF8)	2.1	235	2000	Specifications	Manual

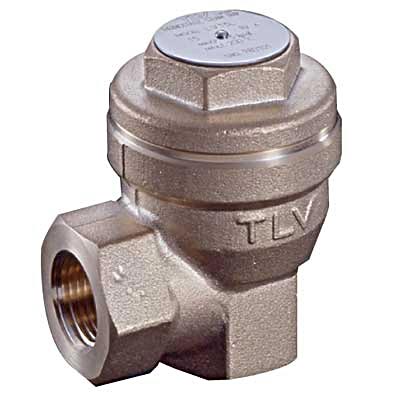

LA13L		Screwed	Angled	Brass (C3771)	1.3	200	1900	Specifications	Manual

• PMO = Maximum Operating Pressure
• TMO = Maximum Operating Temperature

The latest version of each product's instruction manual can be found on this page.
