5 Common Mistakes in Installing Steam Traps That Factories Often Encounter

  • 07/10/2025
  • 5 Common Mistakes in Installing Steam Traps That Factories Often Encounter

    In industrial steam systems, the steam trap is a critical device that removes condensate and air while retaining live steam to maximize operational efficiency. However, many factories still experience steam loss, energy waste, or equipment damage due to improper installation of steam traps.



    Here are the 5 most common mistakes that plant engineers and operators should avoid:


    1. Choosing the Wrong Type of Steam Trap for the Application

    Many factories select steam traps based on habit or by copying other systems, without considering actual factors such as flow rate, pressure, temperature, and the type of equipment using steam (e.g., heating, drying, heat exchangers).

    Example mistake:

    • Using a float trap for a main steam line – not suitable because float traps cannot handle high condensate loads and pressure.

    Recommendation:

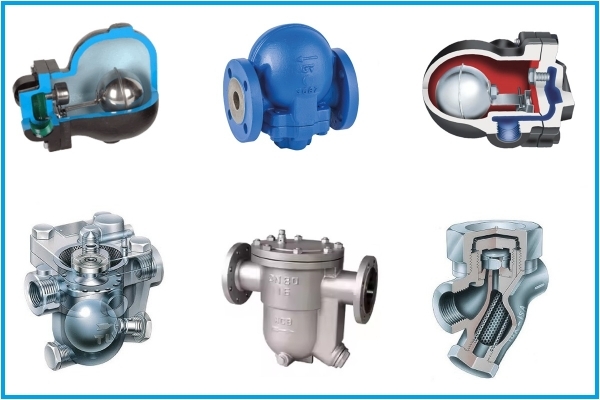

    • Conduct a thorough system survey and select the correct trap: float, thermodynamic, inverted bucket, disc trap, etc., depending on the application.


    2. Incorrect Installation Direction and Location

    Steam traps are designed with a specific flow direction, but in reality, many factories install them backward or in improper positions. This causes the trap to malfunction or fail prematurely.

    Signs of improper installation:

    • Trap does not discharge condensate, water accumulates, and abnormal pressure differences occur.

    Recommendation:

    • Install traps in the correct flow direction and elevation.

    • Position them at the lowest point where condensate naturally collects.


    3. Not Installing Accessories Such as Strainers and Bypass Valves

    Some factories try to cut costs by skipping the installation of strainers, bypass valves, or isolation valves.

    Consequences:

    • Dirt and debris clog the trap, preventing condensate discharge and reducing lifespan.

    • Maintenance becomes difficult, requiring a full system shutdown for replacement.

    Recommendation:

    • Always install a strainer before the trap.

    • Install bypass and isolation valves for easy inspection and maintenance.


    4. Using Too Few Traps or Grouping Multiple Condensate Points Into One Trap

    Some technicians combine multiple condensate discharge points into one trap to save costs, leading to overload and ineffective condensate removal.

    Consequences:

    • Water accumulation inside equipment causes rust, corrosion, and even water hammer risks.

    Recommendation:

    • Install sufficient traps in appropriate locations.

    • Do not group multiple discharge points into a single trap unless carefully engineered.


    5. No Regular Inspection and Replacement of Failed Steam Traps

    Over time, steam traps can wear out, get stuck, or leak. Without inspection, live steam may continuously escape unnoticed.

    Estimated losses:

    • A single failed trap can waste 10–50 kg of steam per hour, costing hundreds of millions VND per year.

    Recommendation:

    • Plan routine inspections every 3–6 months.

    • Use inspection tools such as ultrasonic detectors or thermal sensors.

    • Replace faulty traps immediately to save energy.


    Conclusion

    Although small, steam traps play a major role in the efficiency and safety of a factory’s steam system. Incorrect selection, poor installation, or lack of maintenance can cause serious financial losses and safety risks.
