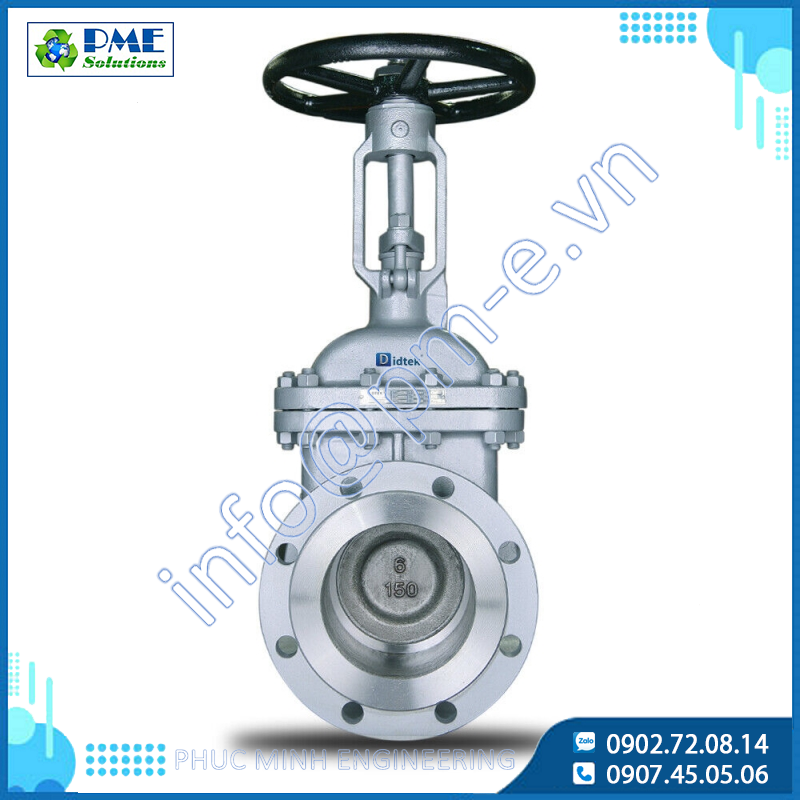

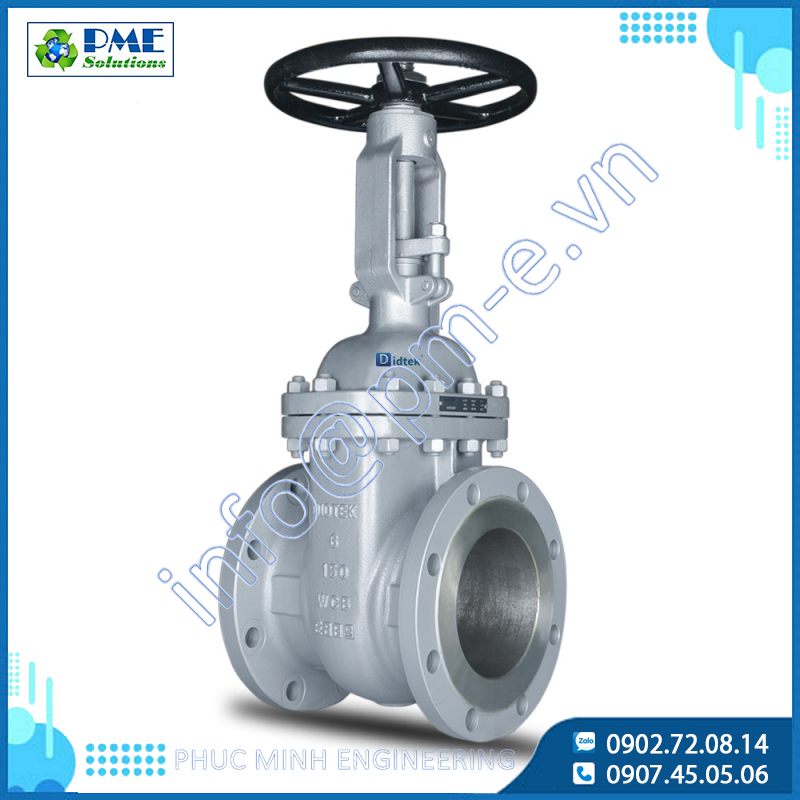

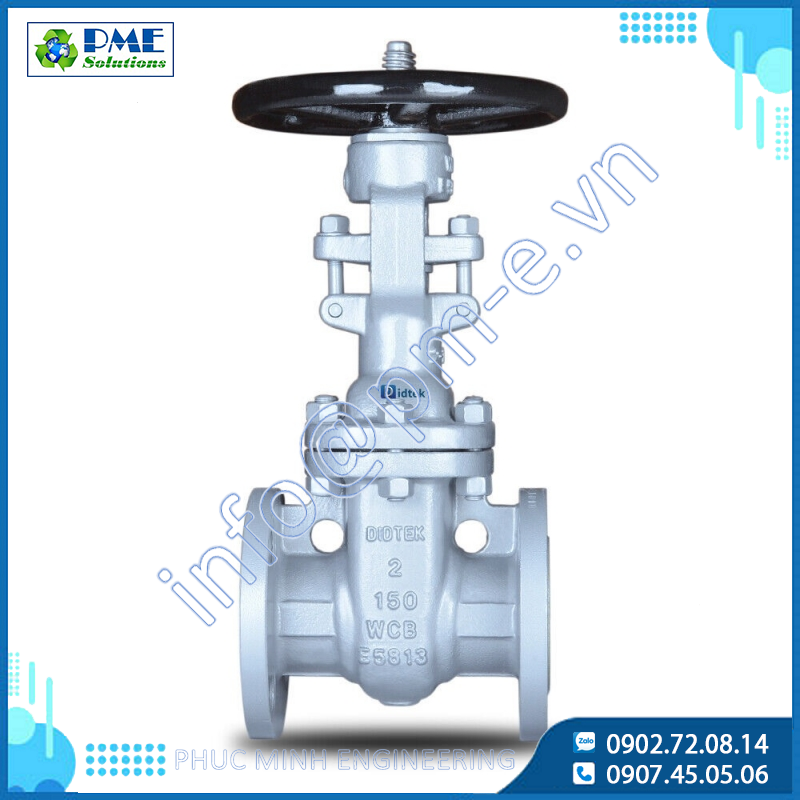

API Wedge Gate Valve

Applicable Standards:

• Gate Valve Design Standard: API600
• Steel Valves Design Standard: ASME B16.34
• Face to face Standard: ASME B16.10
• End Flanges Standard: ASME B16.5/ASME B16.47
• Butt Welding ends Standard: ASME B16.25
• Inspection and test Standard: API 598

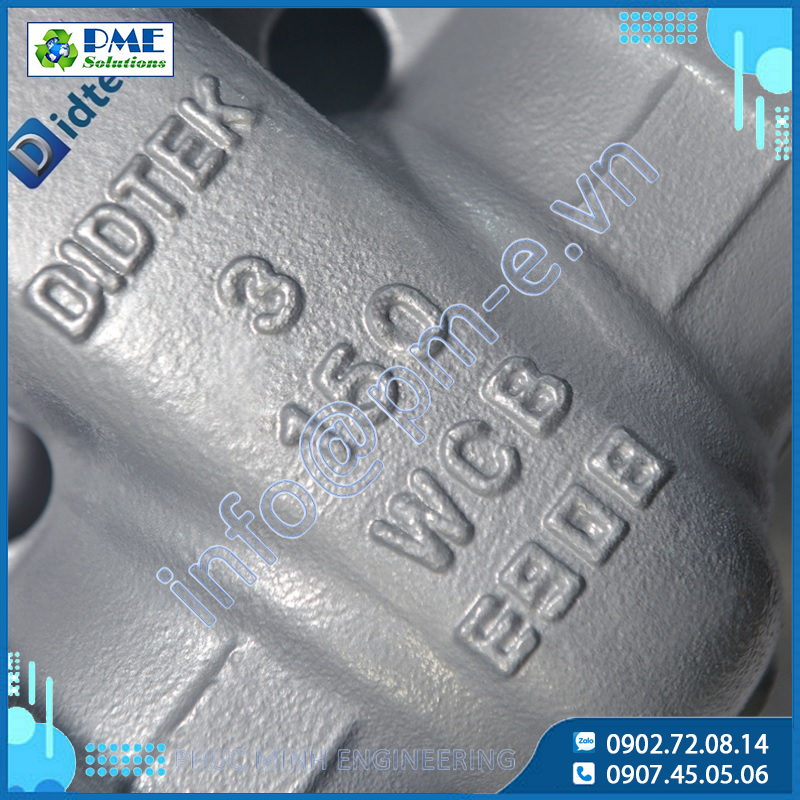

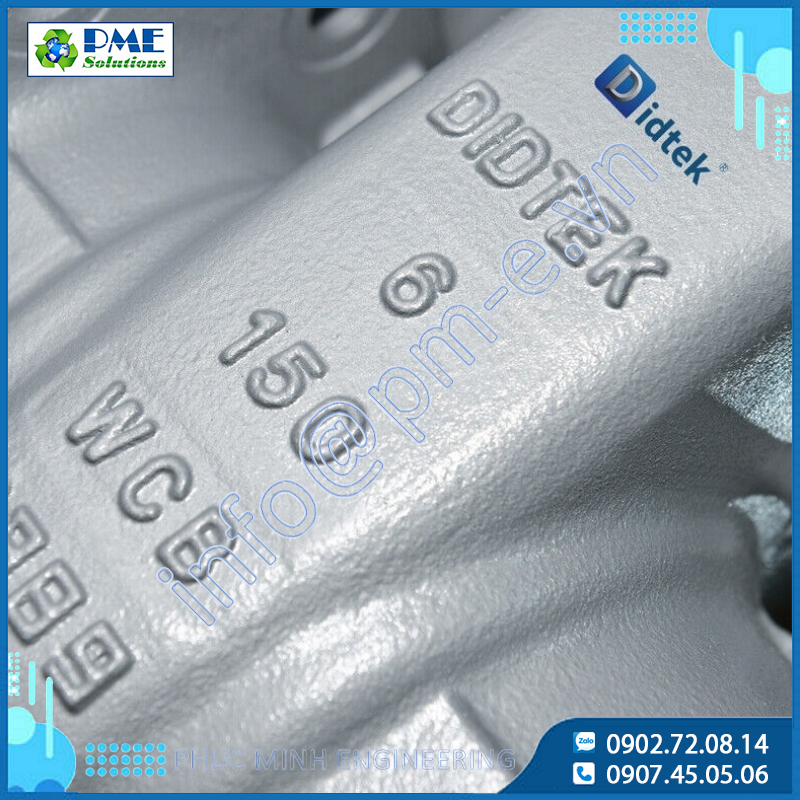

Material: WC9
Size Range: 2"~36"
Pressure Rating: ASME CL, 150, 300, 600, 900, 1500, 2500
Temperature Range: -196℃~650℃

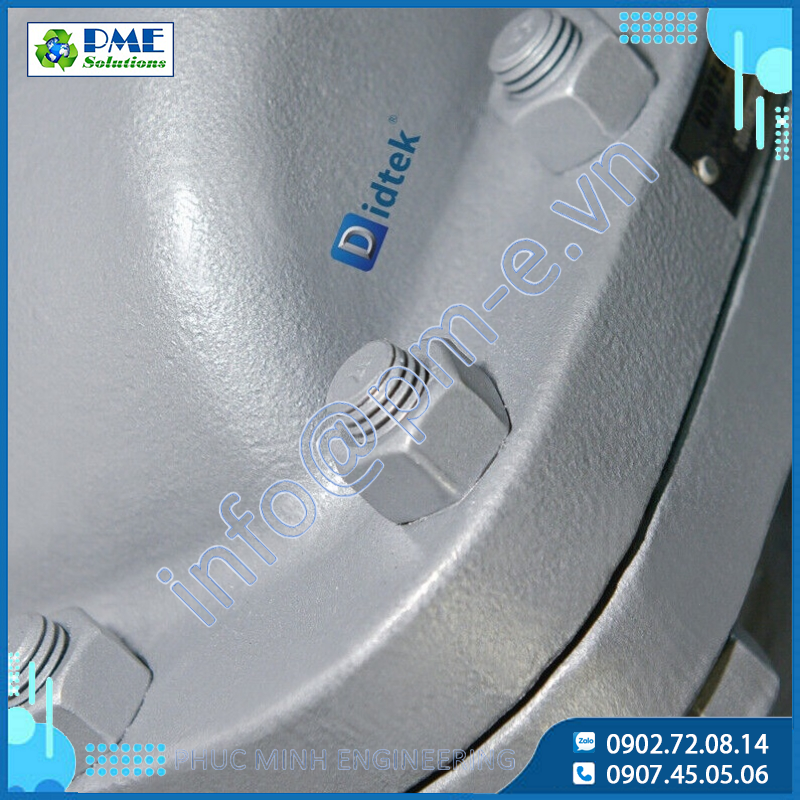

Design Description:

• Outside Screw and Yoke
• Bolted Bonnet and Pressure Seal
• Flexible and solid wedge, fully guided
• Welding seat rings or Renewable seat rings
• Rising stem and non-rising stem
• Available with gear operator
• Flange Ends & Buttwelding Ends

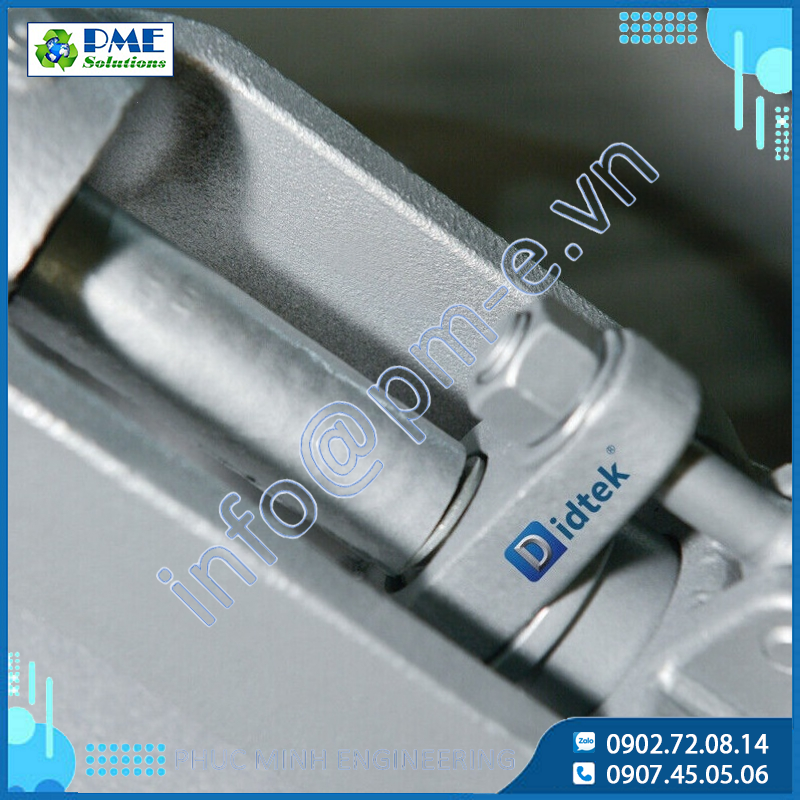

• Low torque design, smooth surface stem.

Application & Function:

• Didtek Cast steel Gate valves are primarily used for stop valves fully opened or fully closed. They are not normally considered for throttling purposes, but more for slurries, viscous fluids, etc. Gate valves are characterized by a traveling wedge, which is moved with the operation of the stem nut. The wedge travels perpendicular to the direction of the flow. Gate valves usually have a minimum pressure drop when fully open, provide tight shut-off when fully closed, and remain relatively free of contamination buildup.

Accessories:

• Accessories such as gear operators, actuators, bypasses, locking devices, chain wheels, extended stems and bonnets for cryogenic service and many others are available to meet the customers’ requirements.
