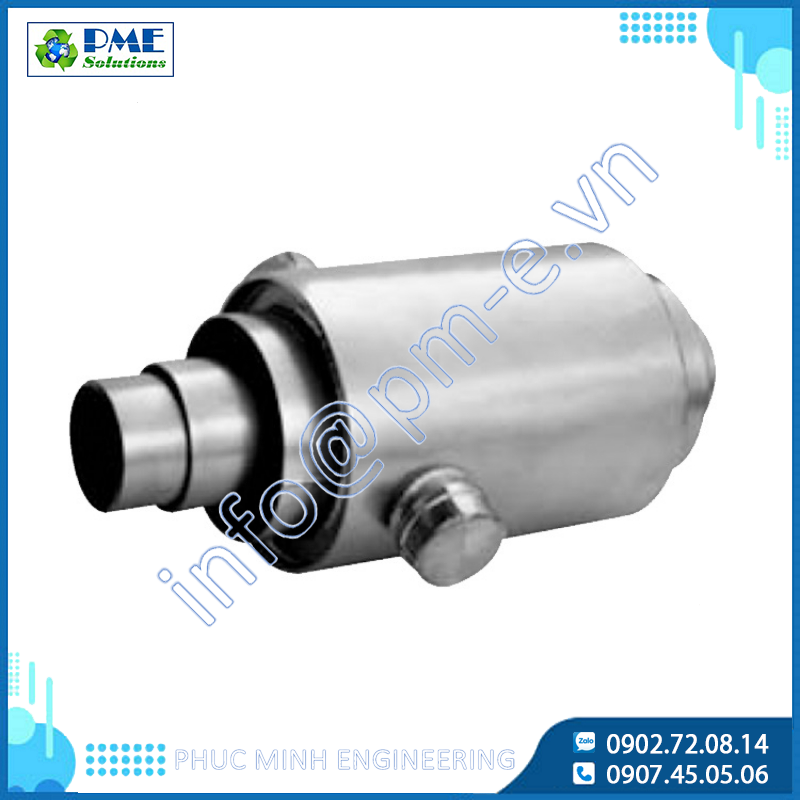

UG-1 - Under Graund Slip Joint

As an injection packing type, this product absorbs displacements and is applied for thermal expansion and contraction. Injection packing has been applied.

Features

• Injection packing type single slip joint.
• Absorb displacements in straight line direction : It can be used for extremely high-temperature fluid.
• Internal & external guide structure has longer life span than other conventional slip joints.
• External guide with outstanding lubrication ensures smooth slip.
• Safe packing injection is available with internal pressure.
• Double-structure product ensures thermal insulation (for underground use)

Specification:

• Applicable fluid: Saturated Steam, Superheat Steam, Oil, Water, Gas
• Maximum running pressure: 1.0, 2.0, 3.0MPa
• Maximum applicable temperature: 250°C (Special orders are available for 250°C)
• Materials
  • Body: STS, SPPS, SCPH2, GCD
  • Sleeve: STS, SC480
  • Packing: Grafoil (SG NO.800)
