Ball, Slip, Multi Joint

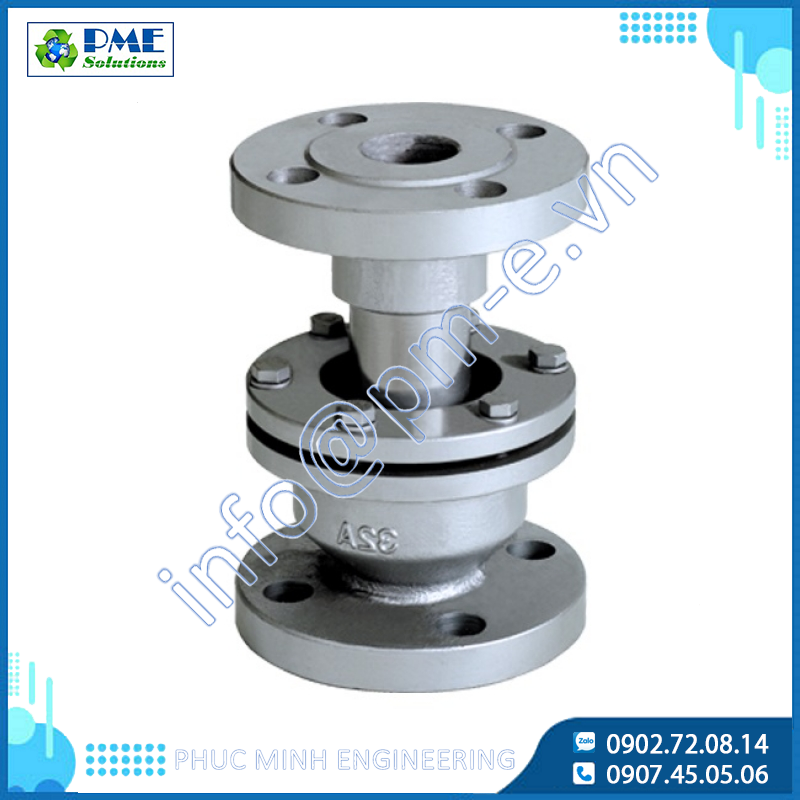

MJ-3 Multi Joint
As a grand packing type, this product absorbs omni-directional displacements, and is suitable for bending, expansion/contraction, rotational movements, and various fluid control facilities. It enables effective measures against external stress, such as ground
subsidence and earthquakes.
Features
- Reduces installation space by combining ball and slip Joint functions.
- Absorb expansion or contraction of pipes by thermal expansion.
- Protects piping, building structures and facilities from damage caused by seismic or other ground movements.
- Absorb the displacement of the pipes caused by ground subsidence or deformation of the large reservoir.
- Use hydraulic equipment, petrochemicals, mines, agricultural sites, cable facilities, and various plants.
Specification:
- Applicable fluid: Saturated Steam, Superheat Steam, Oil, Water, Gas
- Maximum running pressure: 1.0, 2.0, 3.0MPa
- Maximum applicable temperature: 250°C
- Maximum displacement angle: 15-30°
- Materials
- Body: STS, SPPS, SCPH2, GCD
- Sleeve: GB, STS, SC480
- Packing: Teflon + Grafoil (SG NO.100)
▶ The live loading method and dust-cover attachment are available by made-to-orders.
▶ The injection type is available by made-to-orders.
