Cyclone Separators

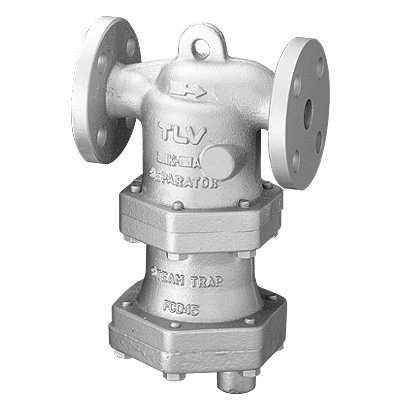

DC Series - Cyclone Separators

Price: Contact

  • Model: DC Series
  • Trademark: TLV
  • Origin: Japan
  •

    Cyclone Separators

    DC Series

    Remove water droplets entrained in steam or air with TLV's DC series steam separators.

    The DC cyclone separators can be installed on steam lines and at the inlet side of equipment to enable removal of virtually all water droplets within the flow. This can significantly improve heat quality, preventing problems such as:

    • Low Heating Efficiency
    • Product Defects or Off-spec
    • Erosion of piping or valve parts, and other related problems

    Cyclone Separators Pamphlet (259 KB)

    Benefits and Features

    • Supplies Dry Steam

      • The built-in Cyclone Separator removes condensate from the flow of steam with a high separation efficiency of 98%. This yields improved productivity and product quality due to the resulting elimination of water hammer and the improved dryness of the steam.

    • Compact and Economical

      • As the separator and the trap are a single unit, the usual need to install a trap after the separator is eliminated, resulting in both cost and space savings.

    Application Areas

    • Equipment that uses live steam, such as steam main lines, steamers, blowers, atomizers and kneaders, and a variety of types of steam heating equipment.

    Product Details

    Model Photo Connection Body Material PMO (MPaG) TMO (°C) Discharge Capacity (kg/h) Specifications Manual
    DC3S



    Screwed Cast Iron
    (FC250)
    2.1 220 940 Specifications Contact us
    Flanged
    DC3S-H
    Socket welded Cast Steel (ASTM A216 Gr.WCB) 4.6 425 940 Specifications Contact us
    Flanged

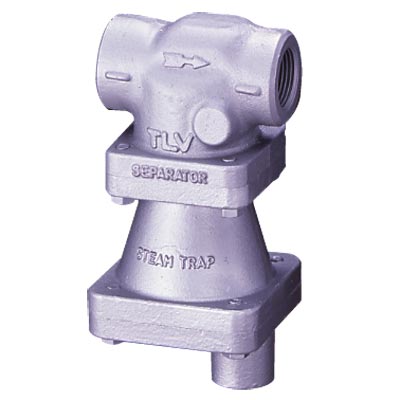

    DC5S



    Screwed Bronze (CAC407) 1.6 220 85 Enquire Contact us
    • PMO = Maximum Operating Pressure
    • TMO = Maximum Operating Temperature



    The latest version of each product's instruction manual can be found on this page.
