Cyclone Separators

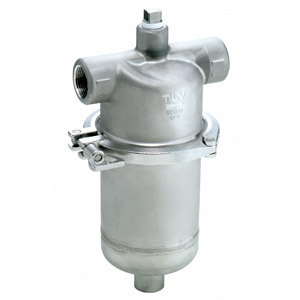

SF1 - Separator Filters

Price: Contact

Model: SF1

Trademark: TLV

Origin: Japan

Order

Project details Download Catalogue Evaluate

Separator Filters

SF1

Cleaner filter for longer utilizing the cyclone effect

In regular piping, steam carries large quantities of entrained material. With TLV's Separator Filter, improve heating efficiency and product quality by removing condensate, dirt and scale. Ideal for bio-related industries and other applications requiring high-quality dry steam.

Separator Filter Pamphlet (400 KB)

Benefits and Features

Extend Filter Maintenance Cycle
- The cyclone separator separates out condensate and dirt, which greatly reduces clogging of the filter and lengthens the time between cleanings and parts' replacement cycles.

Easy Cleaning
- 5-layer sintered wire mesh filter is reusable and easy to clean.

Eliminates Wet Spots
- The cyclone separator separates out and removes the condensate, which allows for the supply of dry steam, so no wet spots occur.

Light-weight, Compact Design
- All stainless steel, with a compact, light-weight design.

Application Areas

Equipment related to production in industries such as the food industry, the medical industry and the chemical industry, in which there is direct contact with live steam, such as in steam cleaning equipment and sterilizers.

Product Details

Model	Connection	Body Material	Applicable Fluids	Nominal Filter Rating (μm)	PMO (MPaG)	TMO (°C)	Internal & External Finishing	Catalogue	Manual
SF1	Screwed	Stainless Steel (ASTM A351 Gr.CF8)	Steam Air	0.5 2 5	1.0	185	Acid Cleaning (lost-wax cast)	Specifications	Contact PME
	Socket Welded			0.5 2 5
	Flanged			0.5 2 5
