Cyclone Separators

DC3A/DC5A - Cyclone Separators for Air (with Built-in Trap)

Price: Contact

  • Model: DC3A/DC5A
  • Trademark: TLV
  • Origin: Japan
  •

    Cyclone Separators for Air (with Built-in Trap)

    DC3A/DC5A

    Cyclone Separators for air with built-in air trap.

    Condensate entrained in steam and air will be removed with 90% efficiency

    Cyclone Separators Pamphlet (259 KB)

    Benefits and Features

    • Supplies Dry Air
      • The built-in Cyclone Separator separates condensate from the flow of air with a high separation efficiency of 98%
      • The Free Float® air trap rapidly discharges the separated condensate.
      • The supply of dry air improves product quality and productivity and prevents malfunction that condensate would cause in equipment that is powered by air.
    • Compact and Economical
      • As the separator and the trap are a single unit, the usual need to install a trap after the separator is eliminated, resulting in both cost and space savings.

    Application Areas

    Processes requiring dry air, such as painting machines.

    Product Details

    Model Photo Connection Body Material PMO (MPaG) TMO (°C) Discharge Capacity
    (kg/h)
    Catalogue Manual

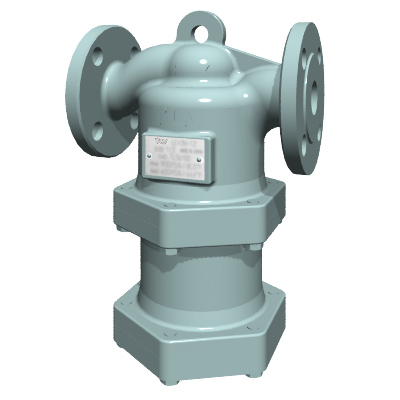

    DC3A



    Screwed Cast Iron (FC250) 1.0 100 385 Specifications Contact us
    Flanged

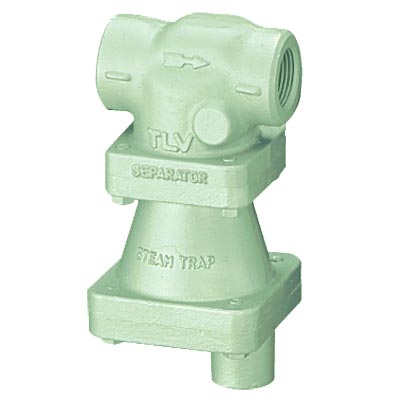

    DC5A



    Screwed Bronze (CAC407) 1.0 100 70 Enquire Contact us
    • PMO = Maximum Operating Pressure
    • TMO = Maximum Operating Temperature

    The latest version of each product's instruction manual can be found on this page.
