Steam trap

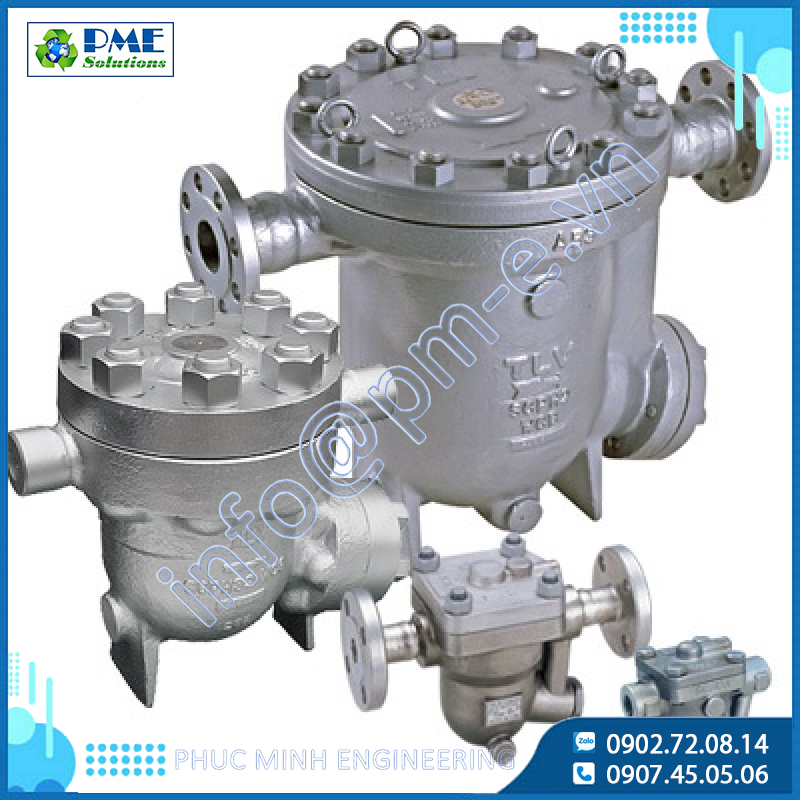

Free Float® Steam Traps (Medium/High Pressure)-JH Series

Price: Contact

Model: JH Series

Trademark: TLV

Origin: Japan

Order

Project details Download Catalogue Evaluate

Free Float® Steam Traps (Medium/High Pressure)

JH Series

Mid to high pressure use, up to 12 MPaG

The JH series offers the three most important features needed in steam traps for steam-using equipment: a large condensate discharge capacity, powerful automatic air venting, and the ability to drain condensate in high pressure / temperature applications.

The use of special construction materials also makes this series perfect for processes requiring cast steel valves, even if pressure isn't of particular concern.

Free Float® Steam Trap Series Pamphlet (1439 KB)

Benefits and Features

Improved Efficiency of Heating Equipment

The Free Float® rises and sinks as the flow of condensate fluctuates, opening the valve to discharge condensate and closing off the valve when steam enters.
The built-in X-element (model names including 'X') functions as an air vent, discharging both cool and hot air. As a result, the steam chamber inside the equipment contains only steam, which allows the equipment to achieve optimized heating performance.
The built-in bimetal (model names including 'B') functions as an air vent, discharging initial cold air for rapid start-up.

Long Service Life, Excellent Durability

The spherical Free Float® rotates during operation, allowing any point on its surface to act as the valve seal and thus ensuring long service life.

Protects Equipment

Fail Open' Design: The X-element is designed to fail open so that the valve remains open even in the event of failure.

Also for Use on Mid/High-Pressure Main Lines

The JH7 series employs the same 3-point seating construction found in products for use on main lines. The float is held tightly against the valve opening even under small condensate loads such as in superheated steam lines, so no steam is allowed to escape.

Application Areas

JH-X type

For steam processes up to 3.2 MPaG that require the discharge of initial air and high temperature air
Particularly for processes with batch operations and where condensate removal is difficult
Employs an automatic air vent (built-in X-element) that rapidly removes both cold and hot air

JH-B type

For steam processes over 3.2 MPaG that require the discharge of initial air
Particularly for high temperature, high pressure steam mains and steam processes
Employs an automatic air venting feature (built-in bimetal)

JH-P type

For steam mains and steam processes over 4.6 MPaG
Particularly for processes with extended, continuous operation and minimal amounts of entrained air
Socket weld or screwed connection available

Product Details

Model	Connection	Body Material	PMO (MPaG)	TMO (°C)	Discharge Capacity (kg/h)	Specification	Size (DN)
JH3S-X	Screwed, Flanged, or Socket Welded	Cast Stainless Steel (ASTM A351 Gr.CF8)	3.2	240	630	Specification	15-25
JH3S-B	Screwed, Flanged, or Socket Welded	Cast Stainless Steel (ASTM A351 Gr.CF8)	3.2	350	450	Specification	15-25
JH5RH-B	Socket Welded	Cast Steel (ASTM A216 Gr.WCB)	8	425	125	Specification	15-50
JH5RH-B	Flanged	Cast Steel (ASTM A216 Gr.WCB)	8	425	125	Specification	15-50
JH5RH-P	Flanged	Cast Steel (ASTM A216 Gr.WCB)	8	425	125	Specification	15-50
JH5RH-P	Socket Welded	Cast Steel (ASTM A216 Gr.WCB)	8	425	125	Specification	15-50
JH5RL-B	Flanged	Cast Steel (ASTM A216 Gr.WCB)	4.6	425	710	Specification	15-50
	Socket Welded
	Screwed
JH5RL-P	Flanged	Cast Steel (ASTM A216 Gr.WCB)	6.5	425	710	Specification	15-50
	Screwed
	Socket Welded
JH5RL-X	Flanged	Cast Steel (ASTM A216 Gr.WCB)	3.2	240	1000	Specification	15-50
	Screwed
	Socket Welded
JH5SL-X	Screwed Flanged or Socket Welded	Cast Stainless Steel (ASTM A351 Gr.CF8)	3.2	240	1000	Specification	15-50
JH5SL-B			4.6	425	700	Specification	15-50
JH5SH-B			6.5	425	170	Specification	15-50
JH7.2R-B	Socket Welded	Cast Steel (ASTM A216 Gr.WCB)	4.6	425	5,700	Specification	40-50
JH7.2R-B	Flanged	Cast Steel (ASTM A216 Gr.WCB)	4.6	425	5,700	Specification	40-50
JH7.2R-X	Socket Welded	Cast Steel (ASTM A216 Gr.WCB)	3.2	240	6,000	Specification	40-50
JH7.2R-X	Flanged	Cast Steel (ASTM A216 Gr.WCB)	3.2	240	6,000	Specification	40-50
JH7.5R-B	Socket Welded	Cast Steel (ASTM A216 Gr.WCB)	4.6	425	13,000	Specification	40-80
JH7.5R-B	Flanged	Cast Steel (ASTM A216 Gr.WCB)	4.6	425	13,000	Specification	40-80
JH7.5R-X	Socket Welded	Cast Steel (ASTM A216 Gr.WCB)	3.2	240	13,800	Specification	40-80
JH7.5R-X	Flanged	Cast Steel (ASTM A216 Gr.WCB)	3.2	240	13,800	Specification	40-80
JH7RH-B	Socket Welded	Low Alloy Cast Steel (ASTM A217 Gr.WC9)	10	425	610	Specification	15-25
JH7RH-B	Flanged	Low Alloy Cast Steel (ASTM A217 Gr.WC9)	10	425	610	Specification	15-25
JH7RH-P	Socket Welded	Low Alloy Cast Steel (ASTM A217 Gr.WC9)	12	530	445	Specification	15-25
JH7RH-P	Flanged	Low Alloy Cast Steel (ASTM A217 Gr.WC9)	12	530	445	Specification	15-25
JH7RL-B	Screwed	Cast Steel (ASTM A216 Gr.WCB)	4.6	425	3,800	Specification	20-50
	Socket Welded
	Flanged
JH7RL-X	Screwed	Cast Steel (ASTM A216 Gr.WCB)	3.2	240	4,080	Specification	20-50
	Socket Welded
	Flanged
JH7RM-B	Socket Welded	Cast Steel (ASTM A216 Gr.WCB)	6.5	425	770	Specification	20-50
JH7RM-B	Flanged	Cast Steel (ASTM A216 Gr.WCB)	6.5	425	770	Specification	20-50
JH8R-B	Socket Welded	Cast Steel (ASTM A216 Gr.WCB)	4.6	425	26,000	Specification	50-100
JH8R-B	Flanged	Cast Steel (ASTM A216 Gr.WCB)	4.6	425	26,000	Specification	50-100
JH8R-X	Socket Welded	Cast Steel (ASTM A216 Gr.WCB)	3.2	240	26,000	Specification	50-100
JH8R-X	Flanged	Cast Steel (ASTM A216 Gr.WCB)	3.2	240	26,000	Specification	50-100
