What Is a Gate Valve? Structure, Working Principle, and Industrial Applications

WHAT IS A GATE VALVE?

A gate valve is an industrial valve used to fully open or fully close flow in a pipeline by lifting or lowering a gate-like disc perpendicular to the flow direction.

Gate valves are not designed for flow regulation, only for on/off service.

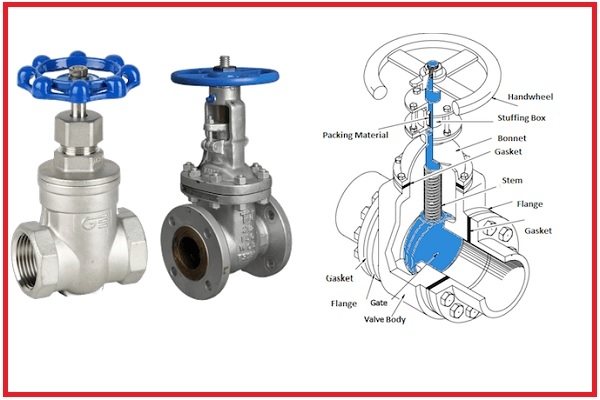

STRUCTURE OF GATE VALVE

Main components:

1. Valve Body

Pressure-containing shell (cast iron, steel, stainless steel)

2. Gate (Disc)

Main closing element

3. Stem

Transfers motion from handwheel to gate

4. Handwheel

Manual operation

5. Seals

Prevent leakage

WORKING PRINCIPLE

• Opening: gate lifts → flow passes
• Closing: gate lowers → flow blocked

Vertical linear motion mechanism.

ADVANTAGES

✔ Low pressure drop when fully open
✔ Good sealing
✔ Suitable for large pipelines
✔ High pressure resistance

DISADVANTAGES

❌ Not suitable for throttling
❌ Slow operation
❌ Wear if misused

APPLICATIONS

• Water systems
• Oil & gas pipelines
• Fire protection systems
• Industrial plants
• Large pipeline systems
