Ball valves

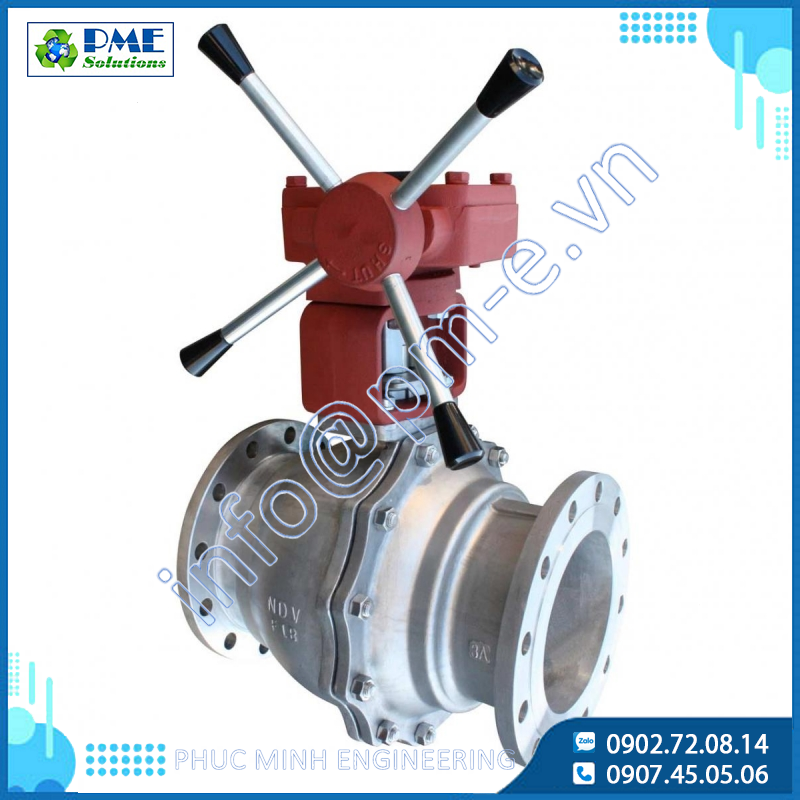

Ductile Iron Ball Valves NDV Japan Model FG104NB / Manually operated 2way ball valve

Price: Contact

  • Model: FG104NB

    • Ductile Iron Ball Valves NDV Japan Model FG104NB / Manually operated 2way ball valve

    Download Catalog

  • Trademark: NDV
  • Origin: Japan
    • Project details Download Catalogue Evaluate

    Ductile Iron Ball Valves NDV Japan Model FG104NB / Manually operated 2way ball valve

    *The pictures and drawings in this website are only for references.Please contact our sales department for the details.

    Product Code FG104NB
    Operation Manual operated(Gear type)
    Body Material Ductile iron(FCD)
    Lining Material -
    Balldisk Material SCS13A,14A,16A
    Diaphragm/Seat Material PTFE, Reinforced PTFE
    Range Of Nominal Diameter 15〜200
    End Connection Flange(JIS 10K)
    Remarks -

    Drawing Data Download

    Nominal Diameter Actuator Code Download
    B A
    4 100 - CAD Drawing
    5 125 - CAD Drawing
    6 150 - CAD Drawing
    8 200 - CAD Drawing





    Product
    Code    		 Nominal
    Diameter    		 Model Operation Ancillary
    Device    		 Body
    Material    		 Lining
    Material    		 Diaphragm/
    Seat Material    		 End
    Connection
    FG104NB 100〜200 2way Manual O.P.(Gear) × Ductile iron(FCD) × PTFE Flange(10K) Detail
    FG104NB 100〜200 2way Manual O.P.(Gear) × Ductile iron(FCD) × PTFE + metal ring Flange(10K) Detail
    FG104NB 100〜200 2way Manual O.P.(Gear) × Ductile iron(FCD) × Carbon + metal ring Flange(10K) Detail
    FG104NB 100〜200 2way Manual O.P.(Gear) × Ductile iron(FCD) × Metal Flange(10K) Detail
