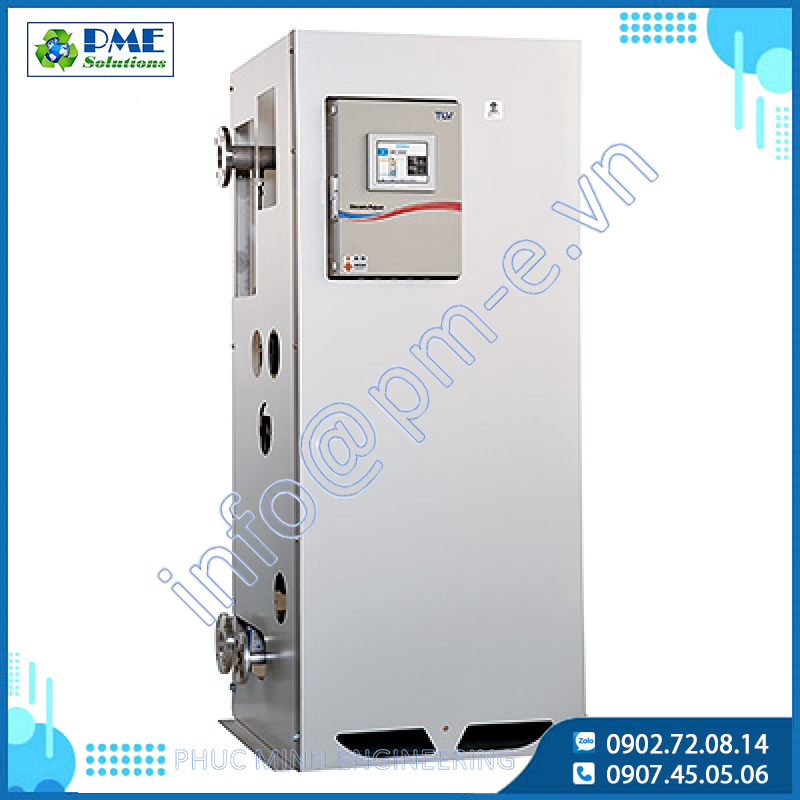

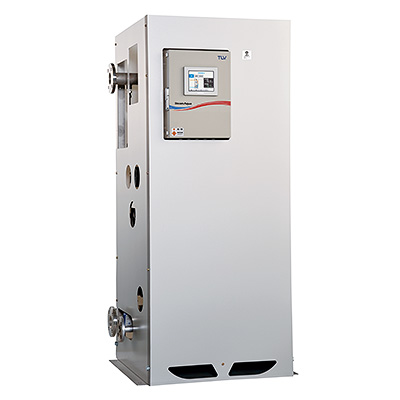

SQ2/SQ4/SQ6 - Steam-Fired Instantaneous Water Heater

Price: Contact

  • Model: SQ2/SQ4/SQ6
  • Trademark: TLV
  • Origin: Japan
  •

    Steam-Fired Instantaneous Water Heater

    SQ2/SQ4/SQ6

    Plentiful hot water ready in moments

    With a short warm-up period, flip a switch and hot water at the desired temperature will be supplied in just 30 to 40 seconds. The hot water temperature will be maintained even if there are fluctuations in load during operation.

    Current operation details are shown on the touch panel. The panel features a full range of functions including set temperature adjustment, abnormal temperature alarms, and alarm history review.

    Thanks to the indirect heating method, steam and water never mix, and since stainless steel is used for the cover, frame, base, and all wetted parts, the hot water supply remains free of rust and foreign material. Clean potable water can be heated and supplied as is, without contamination. SteamAqua is certified to conform to the Water Supply Law in Japan.

    SteamAqua® Pamphlet





    Benefits and Features

    • Hot water at the desired temperature will be supplied in just 30 to 40 seconds1)
    • Thanks to the spiral tube heat exchanger the entire system can be packaged into a space-saving footprint of only 0.6m2
    • Features Integrated control panel and built-in PowerTrap for condensate drainage
    • All-in-one package simplifies installation
    • Indirect heating with steam allows clean potable water to be heated and supplied as is, without contamination
    • Simple and reliable operation with touch panel for temperature setting and system control
    • Buffer water recirculation and shutoff functions prevent overheating
    • Outside of pressure vessel regulations2), so no paperwork or periodic inspections.
    • Operation start-up/shutdown time can be set with the schedule function (daily and weekly timers) to reduce excess power consumption
    • Wetted portions of hot water and steam supply piping are of all stainless steel construction (optional)
    1) May vary depending on actual operating conditions
    2) Based on Japanese regulations, classification may differ depending on local regulations

    Applications

    • Hot water production
    • Air conditioning for buildings and factories
    • Heating, cleaning and sterilization of food and other products
    • Sterilization with high-temperature water
    • Chemical and pharmaceutical manufacturing
    • Cleaning and handwashing

    Product Details

    Model Photo Thermal Capability Class Temperature setting system Base, Frame & Cover Material Catalogue Manual
    SQ2



    200kW Touch panel Stainless Steel Specifications Manual
    SQ4 400kW Touch panel Stainless Steel
    SQ6 600kW Touch panel Stainless Steel
    • The latest version of each product's instruction manual can be found on this page.
    • When single pass method is used, if used for baths, handwashing or anywhere people may come in contact with hot water, install a thermostat-equipped hot/cold water mixing device. Additionally, when used in applications that may fall below the minimum required flow rate, a hot water recirculation system is required. Contact PME for more information.
