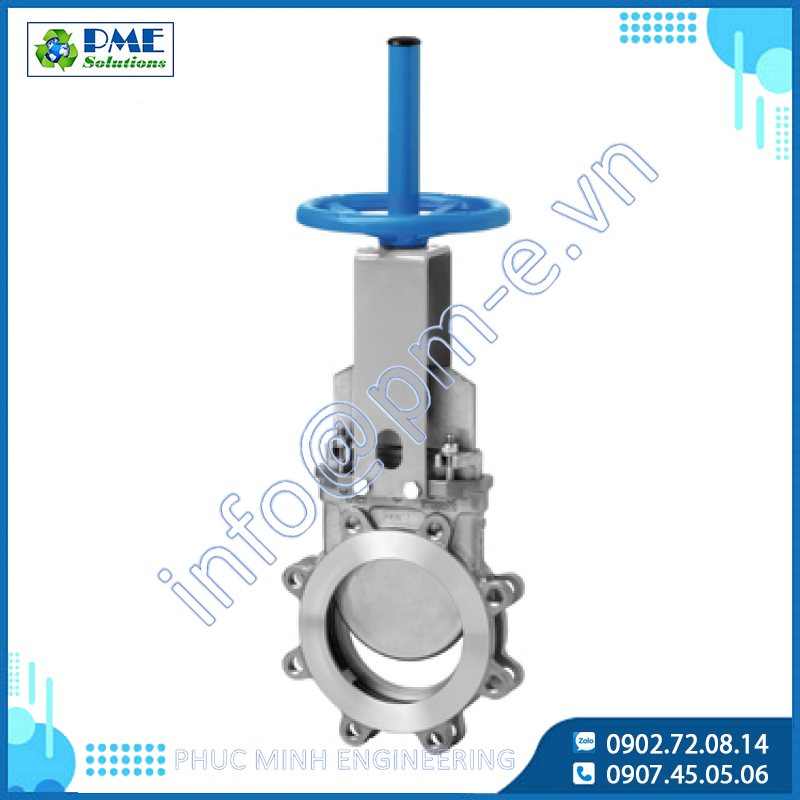

ET (SER.20) MODEL

Uni-directional MSS SP-81 lug type knife gate valve for general industrial applications

The ET model knife gate is a uni-directional lug type valve designed according to MSS-SP-81 and TAPPI-TIS 405 for industrial service applications.
The design of the body and seat assures non-clogging shutoff on suspended solids in industries such as:

• Pulp and Paper
• Power plants
• Mining
• Chemical plants
• Wastewater
• Food and Beverage
• etc.

SIZES

DN 2"/50 to DN 36"/900 (larger diameters on request)

WORKING PRESSURE

DN 2"/50 to 24"/600: 150 psi (10 bar)
DN 30"/750: 100 psi (7 bar)
DN 36"/900: 100 psi (7 bar)

STANDARD FLANGE CONNECTION

EN1092 PN10
NSI B16.5 (class 150)

OTHER FLANGE CONNECTION (ON REQUEST)

DIRECTIVES

For EU Directives and other Certificates please see the document: Directives & Certificates Compliance - Knife Gate Valves – Catalogues and Datasheets
