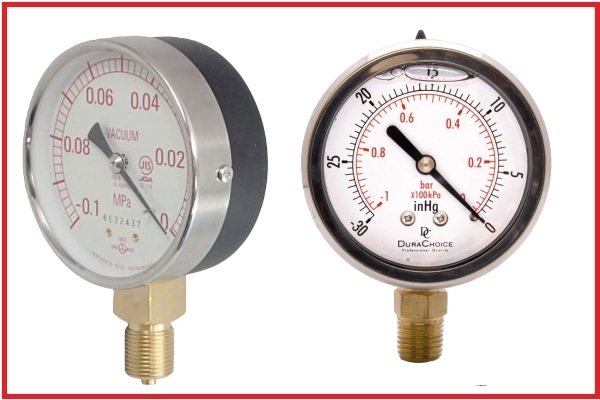

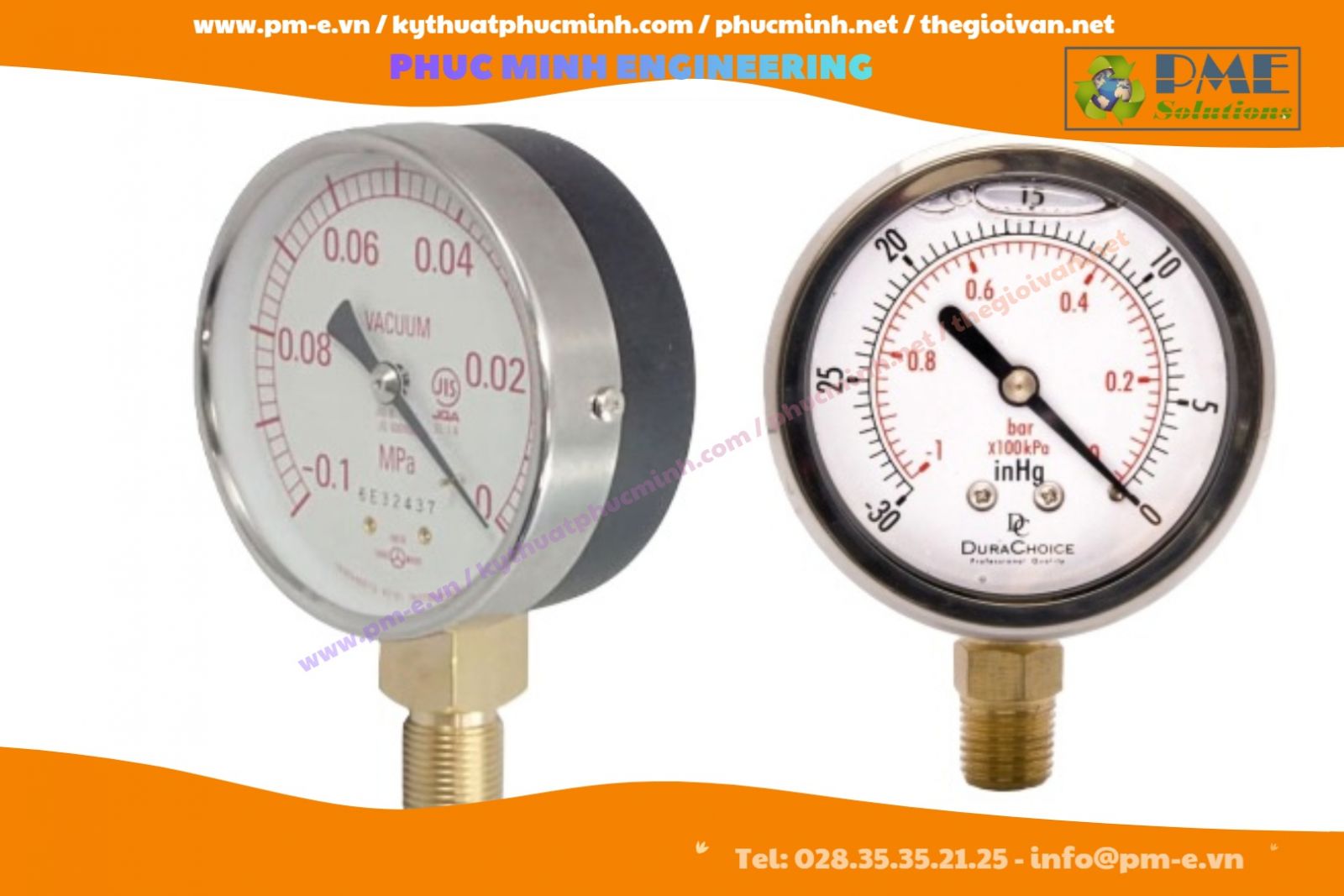

What Is a Vacuum Pressure Gauge?

A vacuum pressure gauge is a device used to measure negative pressure in vacuum systems or environments where the pressure is lower than atmospheric pressure.

This device is also known as a negative pressure gauge and is commonly used to monitor vacuum conditions in industrial systems, laboratories, and production lines.

Typical measurement ranges include:

0 bar to -1 bar
Depending on technical requirements, gauges can be designed with various pressure ranges and connection types.

---

Key Features of Vacuum Pressure Gauges

Vacuum pressure gauges are widely used due to the following advantages:

• Accurate measurement of negative pressure in systems
• Durable and robust design
• Stable operation in industrial environments
• Easy installation and maintenance
• Wide range of sizes and pressure scales
• Corrosion-resistant stainless steel construction
• Suitable for various gas and liquid environments

These devices help operators easily monitor vacuum conditions and continuously track system performance.

---

Technical Specifications (Reference)

• Body material: Stainless steel 304
• Connection: Stainless steel or brass
• Thread type: BSP / NPT
• Mounting types:
  • Bottom connection
  • Back connection
  • Back flange mounting
  • Eccentric back connection
• Dial sizes:
  • 63 mm
  • 100 mm
  • 150 mm
  • 200 mm
• Pressure range:
  • 0 to -1 bar
  • Or custom design upon request
• Media compatibility:
  • Gas
  • Steam
  • Industrial liquids

---

Types of Vacuum Pressure Gauges

Mechanical Vacuum Pressure Gauge

This is the most commonly used type due to:

• Affordable cost
• Easy operation
• No power supply required
• Simple replacement and maintenance

Typical accuracy:

• ±1% for 100 mm dial and above
• ±1.6% for 63 mm dial

Common connection types:

• BSP thread
• NPT thread

Connection materials:

• Stainless steel
• Brass

Installation types:

• Bottom mount
• Back mount

Common thread sizes:

• 1/4”
• 3/8”
• 1/2”

---

Digital Vacuum Pressure Gauge

Digital vacuum gauges are used in systems requiring high precision.

Key advantages:

• Clear LED display
• High accuracy
• Robust design
• Easy readability
• Supports pressure unit conversion

Common supported units:

• Bar
• PSI
• MPa
• kPa

These devices are suitable for laboratories, automation systems, and applications requiring precise pressure control.

---

Operating Principle

When system pressure drops below atmospheric pressure, the internal sensing element responds to pressure changes.

For mechanical gauges, the Bourdon tube deforms and transmits motion to the pointer.

For digital gauges, the pressure sensor converts the signal into electronic data displayed on an LED screen.

---

Industrial Applications

Vacuum pressure gauges are used in many fields, including:

• Vacuum pump systems
• Vacuum packaging machines
• Laboratory equipment
• Food industry
• Pharmaceutical industry
• HVAC systems
• Electronics manufacturing
• Industrial production lines
• Gas treatment systems

These devices play a crucial role in monitoring and maintaining stable vacuum conditions in operating systems.

---

PM-E.VN – Authorized Pressure Gauge Supplier

PM-E.VN – Phuc Minh Engineering specializes in supplying pressure gauges, industrial valves, and measurement equipment for industrial systems in Vietnam.

Products distributed by PME are directly imported from Japan, Korea, and Europe, meeting modern industrial technical standards.

We are currently partners of many reputable brands such as:

• YAMAMOTO KEIKI
• WIKA
• WISE

---

Why Choose PM-E.VN?

• Genuine imported products
• Full CO-CQ certification
• Competitive pricing for projects and distributors
• Professional technical support
• Wide range of pressure ranges and connections
• Fast nationwide delivery

The PME technical team is always ready to assist customers in selecting the most suitable equipment for vacuum systems and real industrial applications.

---
