VINVAL Valves

Ball Float Steam Trap FT44

Price: Contact

Model: FT44

BALL FLOAT STEAM TRAP, DOUBLE SEAT, FLANGE END FT44

The FT44 is a ball float steam trap with integral air venting facility.

It is available with horizontal flange connections.

Phone : +84907450506
Email : info@pm-e.vn

Trademark: VINVAL

Origin: China

Order

Project details Download Catalogue Evaluate

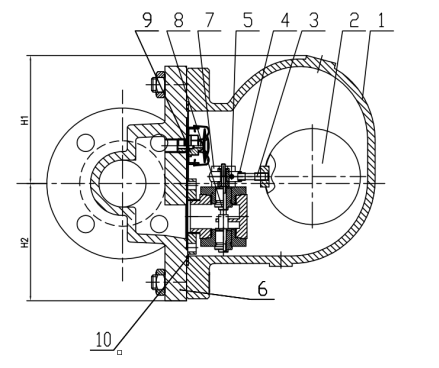

Structure characteristics

1 .This type d steam trap is applied with balanced double seat or single seat with reliable closedown and long life circle.1. This type of steam trap is applied with balanced single seat with reliable closedown and long service life.
2. There has always been high temperatue condensation with water upstream, which will form reliable water seal without any leakge of steam
3. Its operation will not cause any noise. Thus, it is preferable to the environment.
4. The valve is completely open when the steam firstly comes. The low temperature condensation water and air can be discharged repadily, which largely shortens the startup time of equipment.
5. All the internal parts are made of stainless steel, which is resistant to corrosion and caviation erosion.

Standards

1. Basic Design: GB/T22654-2008

2. Face to Face Dimensions: GB/T12250-2005

3. Test Std: GB/T12251-2005

4. End Dimensions: Flange DIN 2545 / Flange ASME B 16.5

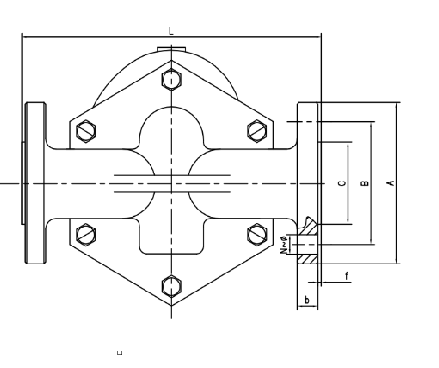

Dimensions & Weights

Size	NPS	CLASS	L	H1	H2	A	B	C	b	f	N-Φ	Net. Weight
DN32	1 1/4''	PN16	230	130	125	140	100	78	18	2	4-Φ18	26 KGS
DN40	1 1/2''	PN16	230	130	125	150	110	88	18	3	4-Φ18	27 KGS
DN50	2''	PN16	230	130	125	165	125	102	18	3	4-Φ18	28 KGS

Size	NPS	CLASS	L	H1	H2	A	B	C	b	f	N-Φ	Net. Weight
DN32	1 1/4''	PN40	230	130	125	140	100	78	18	2	4-Φ18	26 KGS
DN40	1 1/2''	PN40	230	130	125	150	110	88	18	3	4-Φ18	27 KGS
DN50	2''	PN40	230	130	125	165	125	102	20	3	4-Φ18	28 KGS

Size	NPS	CLASS	L	H1	H2	A	B	C	b	f	N-Φ	Net. Weight
DN32	1 1/4''	150LB	230	130	125	115	88.9	63.5	14.3	2	4-Φ16	26 KGS
DN40	1 1/2''	150LB	230	130	125	125	98.4	73	15.9	2	4-Φ16	27 KGS
DN50	2''	150LB	230	130	125	150	120.7	92.1	17.5	2	4-Φ19	28 KGS

Size	NPS	CLASS	L	H1	H2	A	B	C	b	f	N-Φ	Net. Weight
DN32	1 1/4''	300LB	230	130	125	135	98.4	63.5	17.5	2	4-Φ19	26 KGS
DN40	1 1/2''	300LB	230	130	125	155	114.3	73	19.1	2	4-Φ22	27 KGS
DN50	2''	300LB	230	130	125	165	127	92.1	20.7	2	8-Φ19	28 KGS
