Why Are Forged Steel Valves Used for High-Pressure Applications? Advantages Explained

15/04/2026

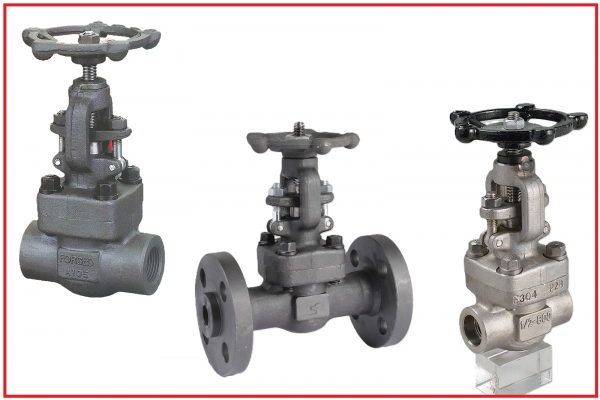

🔷 What is a forged steel valve?

A forged steel valve is a type of industrial valve manufactured using the forging process, where metal is compressed under high pressure to form a dense and uniform structure.

Compared to cast steel valves, forged valves have a more compact and homogeneous grain structure, making them stronger and more reliable.

👉 This is the main reason why forged steel valves are widely used in high-pressure systems.

⚙️ Why can forged steel valves withstand high pressure?

✔️ 1. Dense structure with no porosity

The forging process:

Eliminates internal voids and porosity
Increases material density
Reduces risk of cracks and failure

👉 Ensures safe operation under high pressure without leakage or rupture.

✔️ 2. Superior mechanical strength

Forged steel valves offer:

High tensile strength
Good ductility
Excellent impact resistance

👉 Ideal for high-pressure and fluctuating conditions.

✔️ 3. High pressure and temperature resistance

Forged steel valves typically handle:

Class 150 to Class 2500 pressure ratings
Temperatures up to 400°C or higher

👉 Commonly used in:

Steam systems
Oil & gas applications
Power plants

✔️ 4. Excellent sealing performance

Due to precise structure:

Better sealing surfaces
Reduced dimensional deviations

👉 Minimizes leakage risk in critical systems.

✔️ 5. Compact size with high strength

Compared to cast valves:

Smaller and more compact
Higher strength-to-size ratio

👉 Suitable for installations with limited space.

📊 Comparison: Forged steel vs cast steel valves

Criteria	Forged Steel Valve	Cast Steel Valve
Structure	Dense, uniform	May contain porosity
Pressure capacity	Very high	Medium
Size	Compact	Larger
Strength	High	Lower
Cost	Higher	Lower

🏭 Applications of forged steel valves

Forged steel valves are widely used in:

Oil & gas industry
Thermal power plants
Chemical processing
High-pressure steam systems
Industrial pipelines

⚠️ When should you NOT use forged steel valves?

Low-pressure systems → unnecessary cost
Large diameter pipelines (DN > 50) → expensive
Non-critical applications

🔥 Common mistakes

Using cast valves in high-pressure systems → risk of failure
Using forged valves in low-demand systems → cost inefficiency
Ignoring pressure class requirements

🏁 Conclusion

Forged steel valves are the best choice for high-pressure systems due to:

👉 Key takeaways:

Dense structure → high pressure resistance
High strength → long service life
Excellent sealing → improved safety

👉 That’s why forged steel valves are widely used in critical industrial applications.
