🔷 Overview of VINVAL Bellows Seal Gate Valve

The VINVAL bellows seal gate valve is a high-performance industrial valve designed for zero leakage applications.

👉 The key feature of this valve is the use of a metal bellows seal, which replaces the traditional packing system to eliminate stem leakage.

This valve is widely used in:

• Oil & gas industry
• Chemical plants
• Steam systems
• Applications requiring zero leakage safety

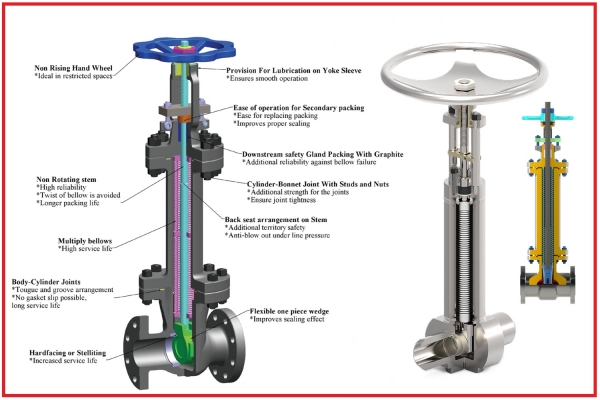

⚙️ Structure of VINVAL Bellows Seal Gate Valve

The valve consists of the following main components:

1. Body

• Material: ASTM A105, F304, F316
• Forged steel construction
• High pressure resistance

2. Bellows Seal

👉 The most critical component

• Made of stainless steel or special alloys
• Prevents any leakage at the stem area
• Eliminates the need for traditional packing

3. Gate

• Opens and closes the flow path
• Provides tight shut-off

4. Stem

• Connects to handwheel or actuator
• Designed for high-pressure operation

5. Bonnet

• Strong connection design
• Ensures overall system sealing integrity

🔧 Working principle

The bellows gate valve operates as follows:

• The gate moves up and down to control flow
• Bellows expand and contract with stem movement
• Completely seals the stem area
• Prevents any external leakage

👉 Key advantage: zero leakage at stem sealing system

🌟 Advantages of VINVAL Bellows Seal Gate Valve

✔️ Zero leakage performance

• Bellows replace traditional packing
• Eliminates stem leakage risk

✔️ High safety level

• Ideal for toxic and hazardous media

✔️ Long service life

• Reduced wear on stem sealing area

✔️ Low maintenance

• No frequent packing replacement required

✔️ Stable performance

• Works well under high temperature and pressure

📊 Industrial applications

🔹 Oil & gas industry

• Toxic gas pipelines
• High-pressure transport systems

🔹 Chemical plants

• Acids, alkalis, solvents
• High-safety process systems

🔹 Steam systems

• High-pressure steam lines
• Boiler systems

🔹 Power plants

• Critical auxiliary systems

⚠️ Selection notes

• Choose correct material (A105, F304, F316)
• Verify pressure class rating
• Consider working media and temperature
• Prefer API/ASME certified valves

🏁 Conclusion

The VINVAL bellows seal gate valve is an ideal solution for:

• Zero leakage requirements
• Hazardous and high-pressure environments
• Heavy industrial applications

👉 Proper selection helps:

• Improve operational safety
• Reduce leakage risks
• Extend system lifespan
