What Is a Globe Valve? Structure, Working Principle and Applications

📝 Introduction

A globe valve is one of the most important industrial valves, widely used in systems such as steam, water, gas, oil, and chemical pipelines.

Its key advantage is the ability to precisely regulate flow, making it ideal for systems that require stable and accurate flow control.

👉 It is a preferred valve for flow and pressure control applications.

---

What Is a Globe Valve?

A globe valve is a type of valve that operates based on:
👉 The vertical movement of a disc to open, close, and regulate flow

The name “globe valve” comes from:

• Its traditionally spherical body shape

---

Other names:

• Globe Valve
• Control Valve
• Steam Valve
• Z-type / Y-type Globe Valve

---

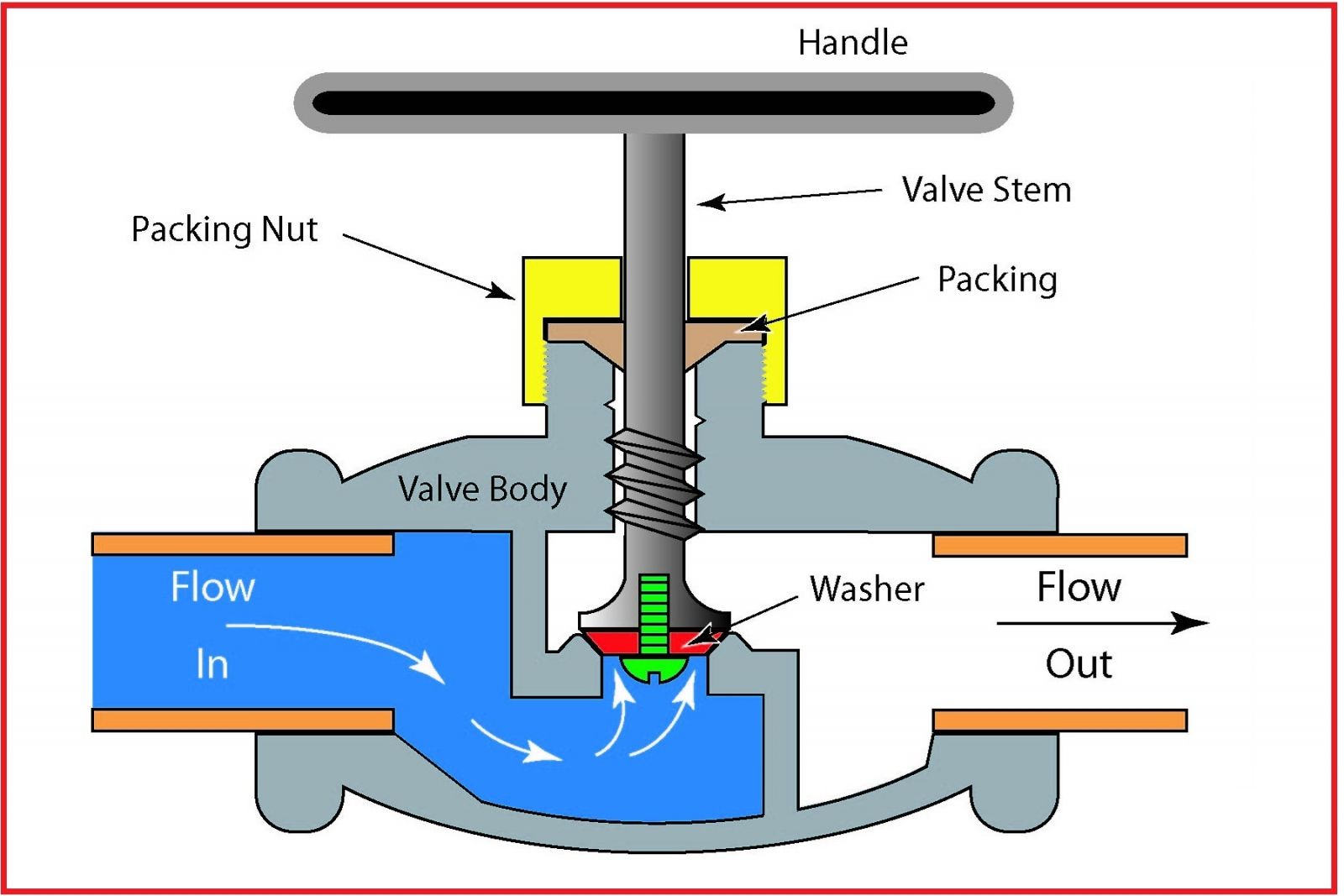

Globe Valve Structure

A typical globe valve consists of the following main components:

---

1. Valve Body

• Main housing where fluid flows
• Typically globe-shaped

Materials:

• Cast iron (water systems)
• Steel (steam applications)
• Stainless steel (chemical systems)

---

2. Disc

• The component that directly controls flow
• Usually conical or plug-shaped

👉 Determines flow regulation performance

---

3. Seat

• Sealing surface where the disc rests when closed

👉 Ensures tight shut-off

---

4. Stem

• Connects the actuator/handwheel to the disc
• Transmits motion

---

5. Bonnet

• Covers the upper part of the valve
• Holds the stem in place

---

6. Actuator

• Manual (handwheel)
• Electric actuator
• Pneumatic actuator

---

Globe Valve Working Principle

A globe valve works based on:

👉 Adjusting the distance between the disc and the seat to control flow rate

---

🔄 Opening Process

• Turn the handwheel counterclockwise
• The disc moves upward

👉 Fluid flows through the valve

---

🔒 Closing Process

• Turn the handwheel clockwise
• The disc presses down onto the seat

👉 Flow is completely shut off

---

⚙️ Throttling (Flow Control)

• The disc is partially open

👉 Allows precise adjustment of flow rate

---

Flow Characteristics Inside a Globe Valve

• Flow changes direction (Z-shaped or S-shaped path)
• Creates resistance

👉 Result:

• Excellent flow control
• Higher pressure drop

---

Types of Globe Valves

By Design:

1. Z-Type Globe Valve

• Most common
• Best for flow control

---

2. Y-Type Globe Valve

• Reduced flow resistance

---

3. Angle Globe Valve

• Used for changing flow direction

---

By Material:

• Cast iron globe valve
• Steel globe valve
• Stainless steel globe valve

---

By Operation:

• Manual
• Electric
• Pneumatic

---

Advantages of Globe Valves

✅ Precise flow control
✅ High sealing performance
✅ Stable operation
✅ Ideal for steam systems

---

Disadvantages

❌ High pressure drop
❌ Flow resistance inside valve
❌ Not suitable for high flow capacity systems

---

Applications

Globe valves are widely used in:

• Steam systems (boilers)
• Thermal power plants
• Compressed air systems
• Oil & gas industry
• Chemical processing
• Food industry

---

When Should You Use a Globe Valve?

👉 Recommended when:

• Accurate flow control is required
• Pressure regulation is needed
• Steam systems

👉 Not recommended when:

• High flow rate with low pressure loss is required

---

Quick Comparison with Other Valves

---

Conclusion

A globe valve is an ideal solution for systems that require:

👉 Accurate and stable flow regulation

Although it has higher pressure loss, it remains the top choice for:

• Steam systems
• Flow control applications
• High-pressure systems
