VINVAL Bellows Seal Globe Valve – Zero Leakage Solution for Industrial Applications

16/04/2026

🔷 Overview of VINVAL Bellows Seal Globe Valve

The VINVAL bellows seal globe valve is a high-performance industrial valve designed for zero leakage applications.

👉 The key feature of this valve is the metal bellows seal, which replaces traditional packing to completely eliminate stem leakage.

This valve is widely used in:

Oil & gas industry
Chemical plants
Steam systems
Power plants and heavy industries

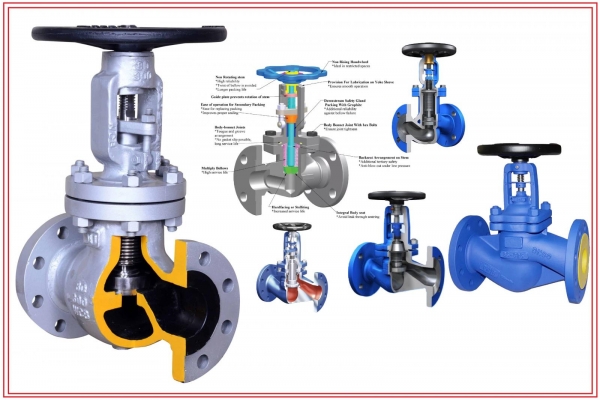

⚙️ Structure of VINVAL Bellows Seal Globe Valve

1. Body

Material: ASTM A105, F304, F316
Forged steel construction
High strength and pressure resistance

2. Bellows Seal

👉 The most critical component

Made of stainless steel or special alloy
Prevents leakage at the stem area
Eliminates traditional packing system

3. Disc

Controls flow regulation
Designed for precise throttling

4. Stem

Connects to handwheel or actuator
Stable operation under high pressure

5. Bonnet

Strong structural design
Ensures overall sealing integrity

🔧 Working principle

The bellows seal globe valve operates as follows:

The disc moves up and down to regulate flow
Bellows expand and contract with stem movement
Prevents any fluid leakage to the outside

👉 Key advantage: zero leakage at the stem sealing area

🌟 Advantages of VINVAL Bellows Seal Globe Valve

✔️ Zero leakage performance

Bellows replace traditional packing
Eliminates stem leakage risk

✔️ High safety level

Suitable for toxic and hazardous media

✔️ Precise flow control

Better throttling performance than gate valves

✔️ Long service life

Reduced wear on sealing components

✔️ Low maintenance

No frequent packing replacement required

📊 Industrial applications

🔹 Oil & gas industry

Toxic gas pipelines
High-pressure processing systems

🔹 Chemical plants

Acids, alkalis, solvents
Chemical reaction systems

🔹 Steam systems

High-pressure steam lines
Boiler systems

🔹 Power plants

Critical auxiliary systems

⚠️ Selection notes

Choose correct material (A105, F304, F316)
Verify pressure class rating
Consider working medium and temperature
Prefer API/ASME certified products

🏁 Conclusion

The VINVAL bellows seal globe valve is an ideal solution for:

Zero leakage requirements
Hazardous and high-pressure environments
Industrial flow control applications

👉 Proper selection helps:

Improve operational safety
Reduce leakage risks
Extend system lifespan

📞 Contact Information

Phuc Minh Engineering Co., Ltd (PM-E) specializes in supplying VINVAL bellows seal valves, industrial valves, and piping components that meet international standards.

🌐 Website: pm-e.vn
📧 Email: info@pm-e.vn
📱 Hotline: +84 907 450 506 – +84 902 720 814 – +84 979 737 351
