BUTTERFLY VALVES

KLINGER is your partner for the development, manufacture and worldwide distribution of industrial butterfly valves

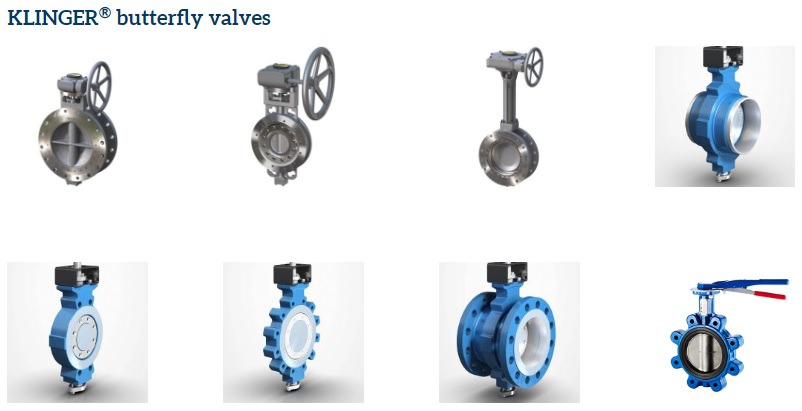

KLINGER Australia valve specialists can supply a full range of high performance butterfly valves to meet client specifications.  We can provide concentric, double offset, triple offset and cryogenic valves in wafer, lug and double flanged types. In addition to the KLINGER range, additional types of butterfly valves can be sourced in a wide range of materials such as cast iron, ductile iron, stainless steel, PVC and FIP thermoplastics.

Our valve specialists can supply butterfly valve accessories and ancillary products such as riser extensions, gearboxes and automated valves with either electric or pneumatic actuators to suit the application.  Our valve team can provide technical support to source quality, resilient butterfly valves with a lower total cost of ownership in fast turnarounds.  For more information about our valve packaged service offering visit our project management page.

Butterfly valves regulate or isolate the flow of a liquid medium by means of a rotatable disk. Similar to ball valves, butterfly valves are also characterized by their quick operation. As a quarter-turn valve, fully opening or closing the valve is achieved by rotating the disk a quarter of a turn. Butterfly valves can be used in various industries and applications including LNG, oil and gas, chemical, water systems, utilities and power generation.

The KLINGER Conaxe, a double-offset high-performance butterfly valve, is one of the more recent additions to KLINGER’s specialized fluid control portfolio. Developed to master demanding media or pressure challenges not suitable for ball valves, the Conaxe is ideal for applications within the energy and district heating sector, the oil and the chemical industry as well in the paper and the steel industry. Its one-piece housing is available in lug, wafer, welding ends and flange design in the dimensions DN 50 to 1300. The KLINGER Conaxe comes equipped with an RTFE sealing element. Metal sealing elements for special applications can optionally be fitted prior to shipping.

FACTS BUTTERFLY VALVES

• Soft seated (bidirectional flow) and metal seated butterfly valve designs
• Maintenance-free, dimensions DN 50 to 1300
• Serviceable without removal from line
• Butterfly valve split shaft-design ensures lowest pressure losses
• Butterfly valve body available in a wide range of materials, including carbon, steel, titanium, bronze
