Safety Valve Model 51

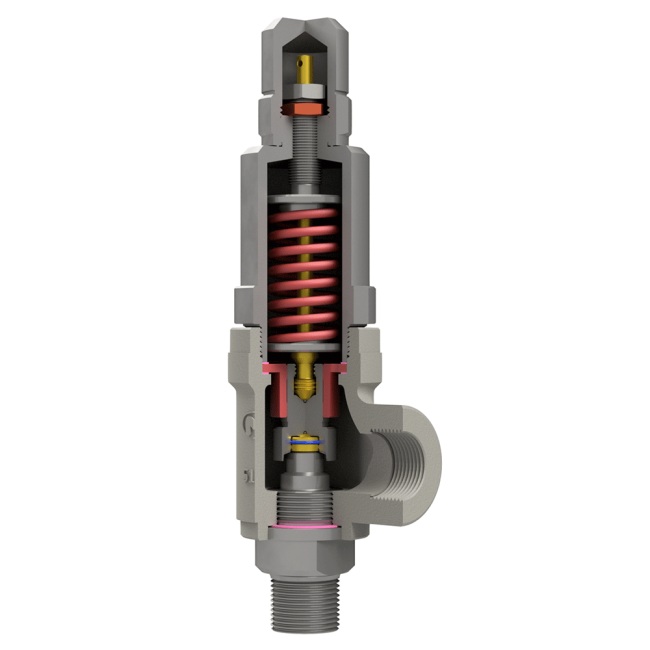

Safety valve at 90º between the inlet and the outlet connections, full nozzle and direct action and spring loaded, with pop action and full lift.

Sizes:

ANSI: From 1/2" x 3/4" up 1" x 1"

DIN: From DN15x25 up to DN25x25

Thread & Flanged connections:

NPT Threaded according to ASME B1.20.1

BSPP Threaded according to ISO 228-1

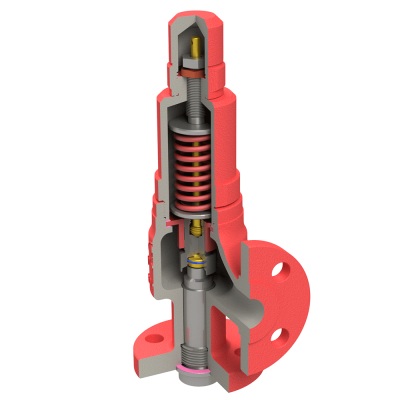

ASME Flanged according to ASME B16.5

Flanges rating:

ANSI

Inlet 150 ÷ 1500#

Outlet 150 ÷ 300#, ASME 16,5

DIN

PN10 up to PN320

Materials:

Carbon steel, stainless steel, and special alloys (A352 LCB, A351 CF10MC etc.)

Certification:

ASME UV
