Steam Trap/Air Trap

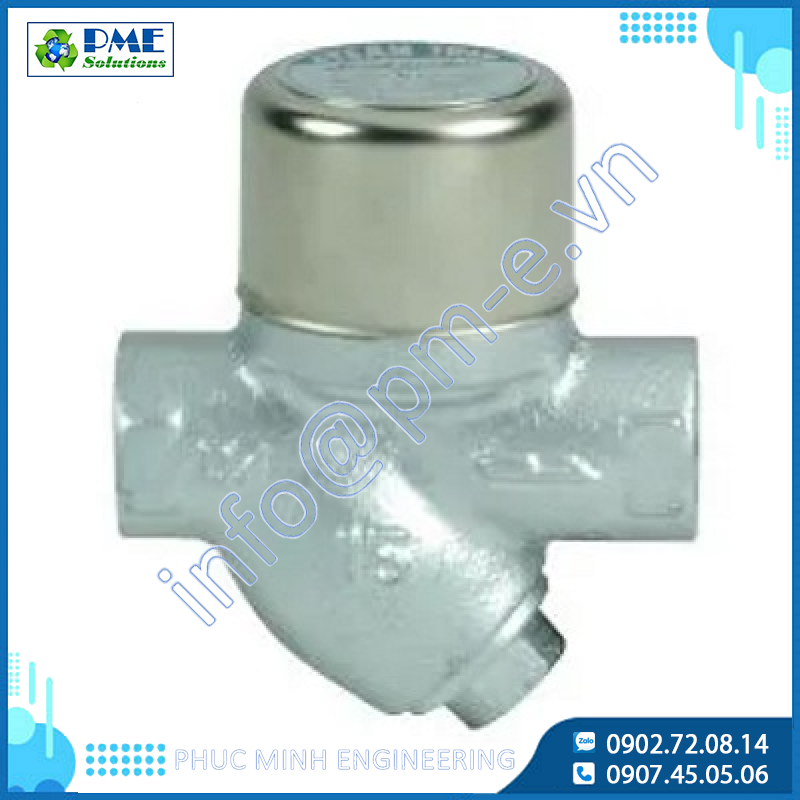

TD-10NA - Steam Trap

Price: Contact

Model: TD-10NA

Trademark: YOSHITAKE

Origin: Japan

Order

Project details Download Catalogue Evaluate

Steam Trap

TD-10NA

* Bi-metal ring eliminates air binding.
* Stable performance and superior durability
* Ductile cast iron body and up to 2.0 MPa
* Built-in strainer
* Insulation cover avoiding no-load actuation

Specifications

Features		Disc, screwed, 2.0MPa
Type		Disc type steam trap
Specifications	Product type	Steam Trap_Disc
	Nominal size	15A (1/2") - 25A (1")
	Application	Steam condensate
	End connection	JIS Rc or NPT Screwed
	Max. pressure	2 MPa
	Working pressure	0.035 - 2.0 MPa
	Allowable back pressure	50% of inlet pressure
	Working temperature	Max. 220 degree(C)
Material	Body	Ductile cast iron
	Valve disc	Stainless steel
	Valve seat	Stainless steel
	Strainer	Stainless steel
