Forged Steel Gate Valve vs Cast Iron Gate Valve: What’s the Difference and Which One Should You Choose?

15/04/2026

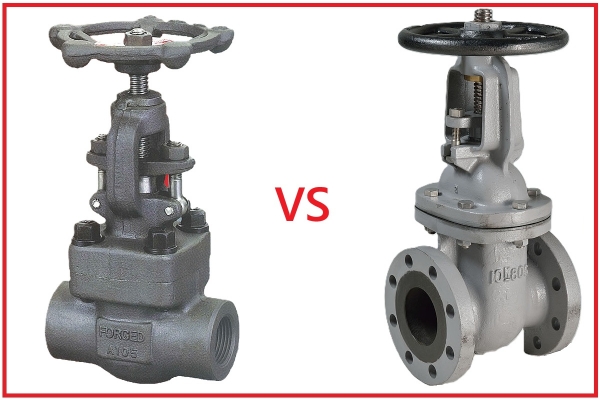

🔷 Overview of forged steel and cast iron gate valves

In industrial valve systems, gate valves are used for full open/close (on/off control). The two most common types are:

Forged Steel Gate Valve
Cast Iron Gate Valve

👉 Each type is designed for different working conditions such as pressure, temperature, and application environment.

⚙️ What is a forged steel gate valve?

A forged steel gate valve is manufactured using the forging process, creating a dense and highly durable metal structure.

📌 Key features:

Withstands very high pressure (Class 800 – Class 2500)
Suitable for high temperatures
Excellent sealing performance
Typically smaller sizes (DN15 – DN50)

👉 Ideal for high-pressure and harsh environments

⚙️ What is a cast iron gate valve?

A cast iron gate valve is manufactured using the casting process with cast iron material.

📌 Key features:

Low cost
Large size range (DN50 – DN1000+)
Suitable for medium pressure (PN10 – PN16)
Limited resistance to high pressure and temperature

👉 Ideal for water systems and low-pressure applications

📊 Comparison: Forged Steel vs Cast Iron Gate Valve

Criteria	Forged Steel Gate Valve	Cast Iron Gate Valve
Manufacturing	Forged	Cast
Structure	Dense, solid	May have porosity
Pressure rating	Very high	Medium
Temperature resistance	High	Low
Size range	Small	Large
Cost	Higher	Lower

🏭 When should you use a forged steel gate valve?

Choose a forged steel gate valve when:

✔️ High-pressure systems

Oil & gas
Steam systems

✔️ High-temperature conditions

Power plants

✔️ Critical systems requiring tight sealing

🏭 When should you use a cast iron gate valve?

Choose a cast iron gate valve when:

✔️ Water supply systems

✔️ Low to medium pressure applications

✔️ Large diameter pipelines

✔️ Cost-saving requirements

⚠️ Common mistakes

Using cast iron valves in high-pressure systems → risk of cracking or failure
Using forged steel valves in low-demand systems → unnecessary cost
Ignoring temperature and operating conditions

🔥 Quick selection tips

👉 High pressure → choose Forged Steel Gate Valve
👉 Water systems & low cost → choose Cast Iron Gate Valve

🏁 Conclusion

Forged steel gate valves and cast iron gate valves have clear differences:

Forged steel = high strength, high pressure, high safety
Cast iron = cost-effective, suitable for water systems

👉 Choosing the right valve helps:

Improve system lifespan
Reduce operating costs
Ensure safety and efficiency
