Forged Steel Ball Valve vs Cast Stainless Steel Ball Valve: Which One Should You Choose?

15/04/2026

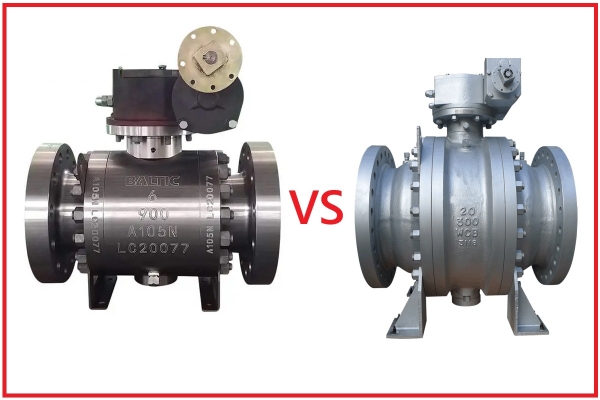

🔷 Overview of forged steel and cast stainless steel ball valves

In the industrial valve industry, ball valves are manufactured using different materials and processes. The two most common types are:

Forged Steel Ball Valve
Cast Stainless Steel Ball Valve

👉 Each type has its own advantages and is suitable for different working conditions.

⚙️ What is a forged steel ball valve?

A forged steel ball valve is manufactured using the forging process, resulting in a dense and highly durable structure.

📌 Key features:

High mechanical strength
Excellent pressure and temperature resistance (Class 800 – Class 2500)
Typically small sizes (DN15 – DN50)
High sealing performance

👉 Ideal for high-pressure and harsh environments

⚙️ What is a cast stainless steel ball valve?

A cast stainless steel ball valve is produced by the casting process, using stainless steel materials such as F304 and F316.

📌 Key features:

Excellent corrosion resistance
Suitable for chemical and marine environments
Wide size range (DN15 – DN300+)
Cost-effective

👉 Ideal for corrosive environments and large systems

📊 Comparison: Forged Steel vs Cast Stainless Steel Ball Valve

Criteria	Forged Steel Ball Valve	Cast Stainless Steel Ball Valve
Manufacturing	Forged	Cast
Structure	Dense, solid	May have minor porosity
Pressure rating	Very high	Medium – high
Corrosion resistance	Low	Excellent
Size range	Small	Wide range
Cost	Higher	Moderate

🏭 When should you use a forged steel ball valve?

Choose a forged steel ball valve when:

✔️ High-pressure systems

Oil & gas
Steam systems

✔️ High-temperature conditions

Power plants

✔️ Limited installation space

Compact systems

🏭 When should you use a cast stainless steel ball valve?

Choose a cast stainless steel ball valve when:

✔️ Corrosive environments

Chemical processing
Seawater systems

✔️ Large pipeline systems

Water treatment plants
Industrial pipelines

✔️ Hygiene and clean applications

Food industry
Pharmaceutical industry

⚠️ Common mistakes

Using forged steel valves in corrosive environments → leads to damage
Using cast stainless valves in extremely high-pressure systems → not optimal
Ignoring both pressure and corrosion factors during selection

🔥 Quick selection tips

👉 High pressure → choose Forged Steel Ball Valve
👉 High corrosion → choose Cast Stainless Steel Ball Valve

🏁 Conclusion

Forged steel ball valves and cast stainless steel ball valves differ significantly:

Forged steel = high strength and pressure resistance
Cast stainless steel = excellent corrosion resistance and flexibility

👉 Choosing the right valve helps:

Improve system durability
Reduce operating costs
Ensure safety and efficiency
