Gate vs Globe vs Ball vs Butterfly Valve – Key Differences and Selection Guide

01/05/2026

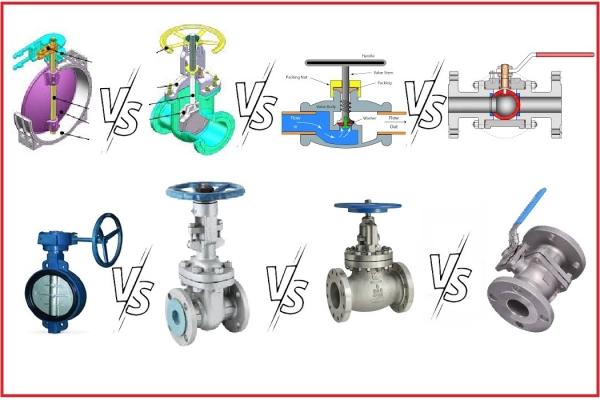

Gate vs Globe vs Ball vs Butterfly Valve Comparison – What’s the Difference and Which One Should You Choose?

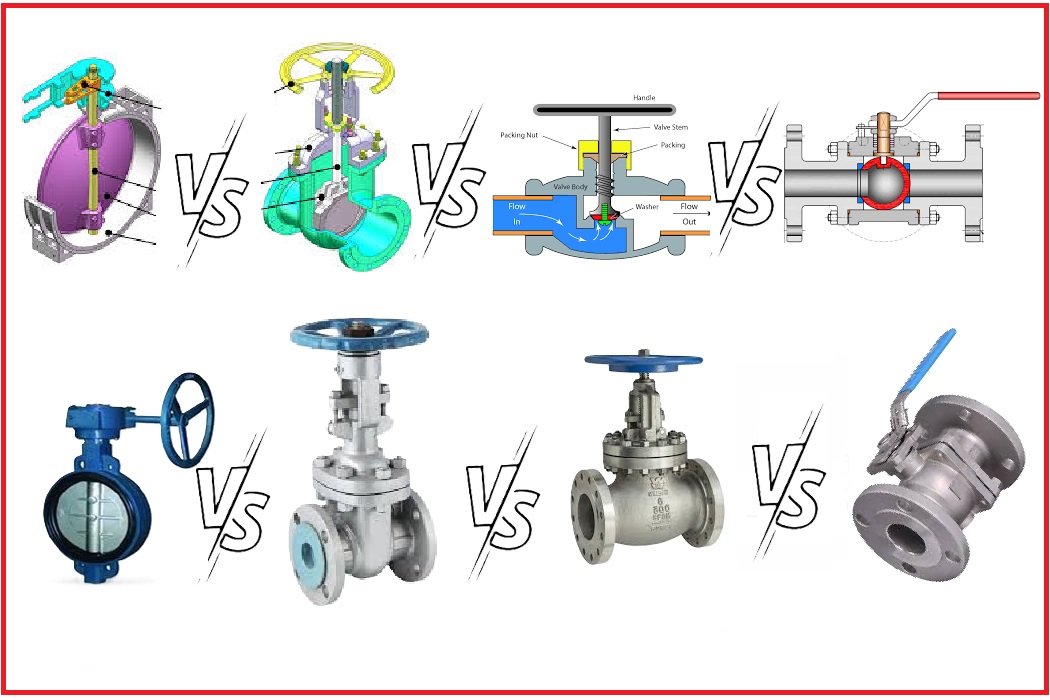

Gate vs Globe vs Ball vs Butterfly Valve – Key Differences and Selection Guide

📝 Introduction

In industrial piping systems, the four most commonly used valve types are:

Gate Valve
Globe Valve
Ball Valve
Butterfly Valve

Although all of them are used to control, start, or stop fluid flow, each type has completely different structures, working principles, and applications.

👉 Choosing the wrong valve can lead to:

Pressure loss
Leakage
System damage
Increased operating costs

Overview of the Four Valve Types

1. Gate Valve

Operates by raising or lowering a gate (disc)
Straight-through flow → minimal pressure loss

👉 Best used for:

Full open or full close (ON/OFF)

2. Globe Valve

Flow changes direction inside the valve
Excellent flow regulation capability

👉 Best used for:

Flow control applications

3. Ball Valve

Uses a rotating hollow ball (90° turn)

👉 Key advantages:

Fast operation
Tight shut-off

4. Butterfly Valve

Uses a rotating disc inside the body (90° turn)

👉 Key advantages:

Lightweight and cost-effective
Ideal for large diameter pipelines

Detailed Comparison: Gate vs Globe vs Ball vs Butterfly

🔥 General Comparison Table

Criteria	Gate Valve	Globe Valve	Ball Valve	Butterfly Valve
Working principle	Rising/falling gate	Disc + directional flow	Rotating ball (90°)	Rotating disc (90°)
Operation type	Multi-turn	Multi-turn	Quarter-turn	Quarter-turn
Main function	ON/OFF	Control + ON/OFF	ON/OFF	ON/OFF + control
Pressure drop	Very low	High	Low	Low
Sealing	Good	Very good	Excellent	Moderate
Flow control	❌ Not suitable	✅ Excellent	⚠️ Limited	✅ Moderate
Operation speed	Slow	Slow	Very fast	Fast
Size	Large	Large	Medium	Compact
Cost	Medium	High	Medium	Low

Detailed Comparison by Key Factors

1. Flow Control Capability

Best: Globe Valve
Good: Butterfly Valve
Limited: Ball Valve
Not suitable: Gate Valve

👉 Gate valves should not be used for throttling because it may damage the seat.

2. Sealing Performance

Best: Ball Valve
Very good: Globe Valve
Good: Gate Valve
Moderate: Butterfly Valve

👉 Ball valves can achieve “bubble-tight” sealing.

3. Pressure Loss

Lowest: Gate Valve
Low: Ball / Butterfly
Highest: Globe Valve

4. Operation Speed

Fastest: Ball Valve, Butterfly Valve
Slow: Gate Valve, Globe Valve

👉 Quarter-turn valves require only a 90° rotation.

5. Size and Cost

Most economical: Butterfly Valve
Medium: Gate / Ball
Most expensive: Globe Valve

👉 Butterfly valves are ideal for large-diameter systems.

When to Use Each Valve Type?

🔥 Steam Systems

Recommended:

Globe Valve
Gate Valve
Steel Ball Valve

Not recommended:

Butterfly Valve (limited temperature resistance)

💧 Water Systems

Recommended:

Gate Valve (large pipelines)
Butterfly Valve (cost-effective)
Ball Valve (small pipelines)

🛢 Oil & Fuel

Recommended:

Ball Valve (tight shut-off)
Globe Valve (if flow control is required)

💨 Compressed Air

Recommended:

Ball Valve
Butterfly Valve

🧪 Chemical Applications

Recommended:

Stainless steel or PTFE Ball Valve
PTFE-lined Butterfly Valve

Advantages and Disadvantages Summary

Gate Valve

✔ Low pressure drop
✔ Suitable for large pipelines
❌ Not for flow control

Globe Valve

✔ Excellent flow control
✔ High sealing performance
❌ High pressure loss

Ball Valve

✔ Tight shut-off
✔ Fast operation
❌ Not ideal for throttling

Butterfly Valve

✔ Lightweight and cost-effective
✔ Suitable for large diameters
❌ Lower sealing performance compared to ball valves

Conclusion – Which Valve Should You Choose?

👉 Choose based on your application:

Full open/close, minimal resistance → Gate Valve
Precise flow control → Globe Valve
Fast operation, tight shut-off → Ball Valve
Low cost, large diameter systems → Butterfly Valve

👉 There is no “best” valve—only the most suitable valve for your application.
