Ball Valves

Series S10 - Flanged ball valves

Price: Contact

  • Model: Series S10
  •

  • Trademark: SIRCA
  • Origin: Italy
  • Series S10 - Flanged ball valves

    Size range 1/2” ÷ 8” (DN15 ÷ DN200) full bore
    Type Wafer
    Design ASME B16.34, EN 12516-2, ISO 14313
    Face to face dimension EN 558 series 100
    Top flange ISO 5211
    Max working pressure 40 bar bidirectional
    Flange drilling PN6, PN10, PN16, PN25, PN 40,
      ANSI class 150, class 300
    Operating temperature -20 °C ÷ +200 °C (-4 °F ÷ +392 °F)
    Standard materials Body: Carbon Steel, Stainless Steel
      Ball: AISI 304, CF8M
      Stem: AISI 304, AISI 316
      Seat: PTFE+fiber glass, PTFE+carbographite
    Leakage class Rate “A” – No leakage – according to EN 12266-1
    Applications Air, gas, liquids free from impurities for industrial environments, plants, waters treatment, other applications with compatible materials to working conditions
    Certifications 2014/68/UE PED,2014/34/UE ATEX,
      Fire Safe API 607, ISO 10497,
      API 6FA SIL – IEC 61508, IEC 61511,
      GOST-R, CU TR 10 – CU TR 32

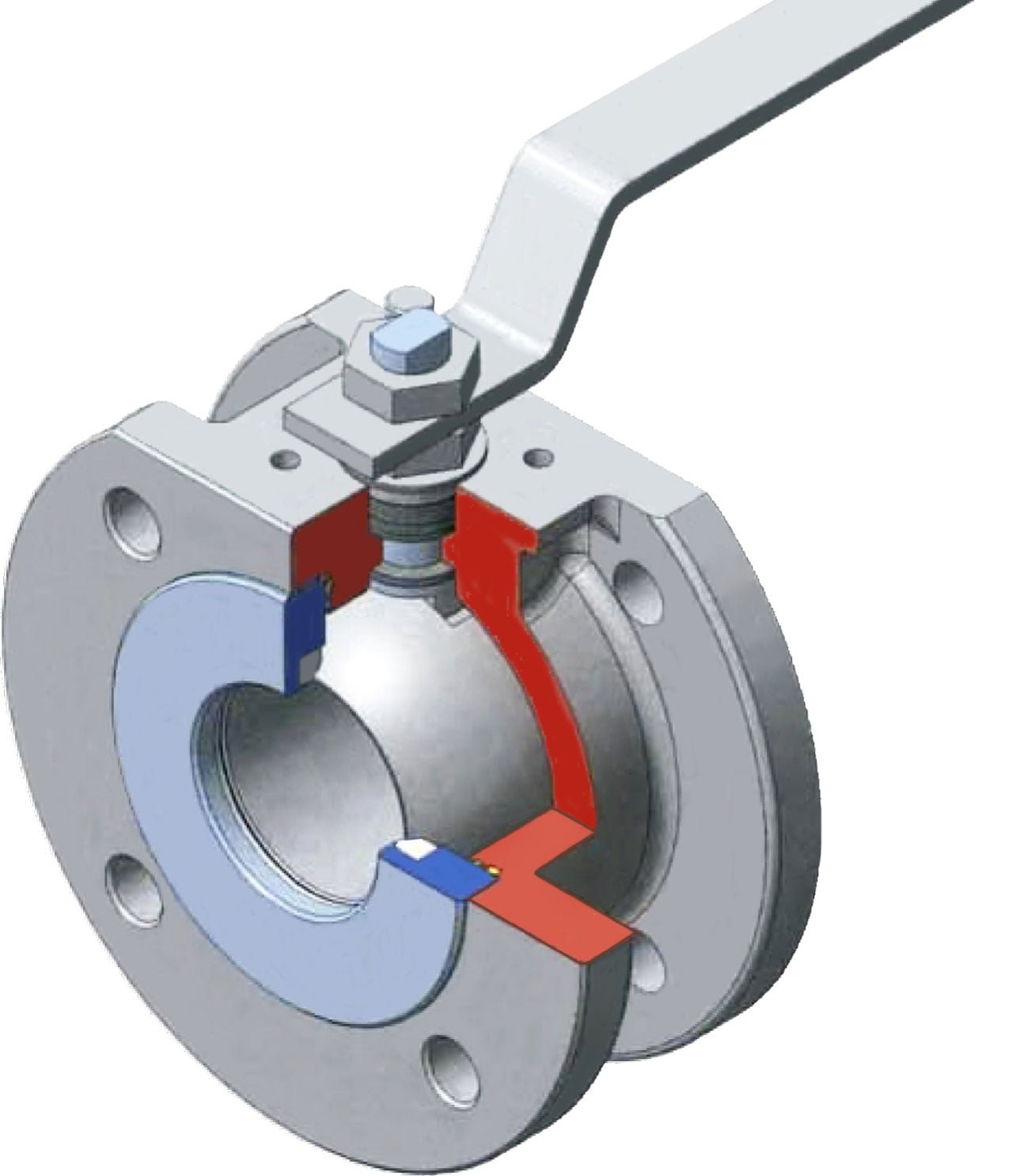

    The stem is anti blow-out and it has an antistatic device.

    Body The one-piece valve body obtained from precision casting (inox) or from cutout (carb. steel) has a little face to face (flat body) that allows the easy installation of the valve.
    Stem packing adjustable with Chevron rings in P.T.F.E. + carbographite.

    The ball has a plus diameter that reduces the pressure drop.

    The seat consists of two rings in P.T.F.E. mounted inside the internal slots of the valve to guarantee the perfect tightening.
    The threaded metal ring where is inserted the main and the secondary seat, is screwed on the body

    Main features

    Full bore ball valve - Anti blow out stem - Anti-static device - Stem packing with - hevron rings - Working pressure 40 bar max - Rotary angle 90° - PN10-PN16-PN25-PN40 flanges according to UNI EN1092-1 - The valve can be mounted in both direction’s flow - Top flange in accordance with DIN-ISO 5211 - Construction according to EN12516.2 and ASMEB16.34 - Hand lever, pneumatic or electric actuator



    Size range 1/2” ÷ 8” (DN15 ÷ DN200) full bore
    Type Wafer
    Design ASME B16.34, EN 12516-2, ISO 14313
    Face to face dimension EN 558 series 100
    Top flange ISO 5211
    Max working pressure 40 bar bidirectional
    Flange drilling PN6, PN10, PN16, PN25, PN 40,
      ANSI class 150, class 300
    Operating temperature -20 ?C ? +200 ?C (-4 ?F ? +392 ?F)
    Standard materials Body: Carbon Steel, Stainless Steel
      Ball: AISI 304, CF8M
      Stem: AISI 304, AISI 316
      Seat: PTFE+fiber glass, PTFE+carbographite
    Leakage class Rate “A” - No leakage - according to EN 12266-1
    Applications Air, gas, liquids free from impurities for industrial environments, plants, waters treatment, other applications with compatible materials to working conditions
    Certifications 2014/68/UE PED,2014/34/UE ATEX,
      Fire Safe API 607, ISO 10497,
      API 6FA SIL - IEC 61508, IEC 61511,
      GOST-R, CU TR 10 – CU TR 32
