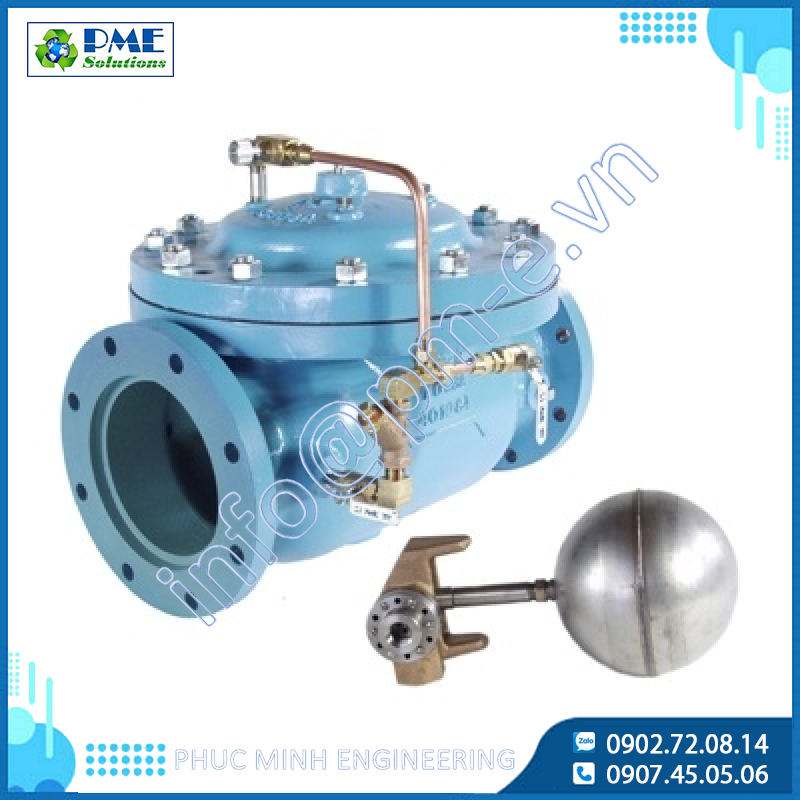

Series 8100 - Modulating Float Control Valves

• While similar to the Series 8000 On/Off Float Valves through the use of a rotary disc float control, the 8100 series provides modulating rather than on/off type action. In this way, level in the vessel can be continuously maintained within extremely narrow limits.

• Model 8101 Modulating Float Valve
• Model 8102 Modulating Float Valve
• Model 8104 Modulating Float Valve
• Model 8105 Modulating Float Valve

Features

• Operates automatically off line pressure.
• Heavy-duty, nylon-reinforced diaphragm.
• Rectangular-shaped, soft seat seal provides drip-tight Class VI closure.
• Diaphragm assembly Guided top and bottom.
• Throttling seat retainer for flow and pressure stability.
• Easily maintained without removal from the line.
• Replaceable seat ring.
• Alignment pins assure proper reassembly after maintenance.
• Valves are factory tested.
• Valves are serial numbered and registered to facilitate replacement parts and factory support.

TANK FILL VALVE

Opens on falling level and closes on rising level. (shown with 813 pilot) Mounting of valve and pilot provides an air gap between pilot and liquid level.

TANK DISCHARGE VALVE

Opens on rising level and closes on falling level. (shown with 812 pilot)

TANK FILL VALVE

Opens on falling level and closes on rising level. (shown with chamber mounted 815 pilot) Typical for fuel service, floating pan tanks.
