Temperature Regulator Valves

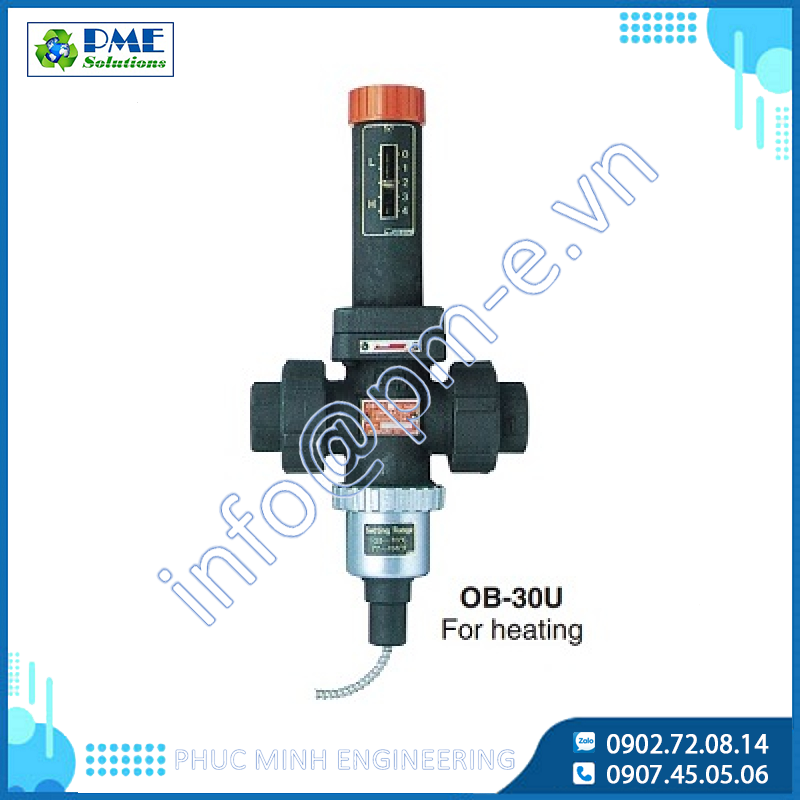

OB-30U - Temperature Regulator Valves

Price: Contact

  • Model: OB-30U

    • DOWNLOAD CATALOG

  • Trademark: YOSHITAKE
  • Origin: Japan
    • Project details Download Catalogue Evaluate

    Temperature Regulator

    OB-30U

    * Small and compact, but accurate control
    * PTFE/Stainless valve & seat enables long durability.

    Specifications

    Features For heating, union joint
    Type External pressure bellows type
    Specifications Product type For heating
    Nominal size 15A (1/2") - 25A (1")
    Application Steam, hot water
    End connection JIS Rc screwed (union joint)
    Max. pressure 1.7 MPa (1.0MPa for steam)
    Working temperature Max. 185 degree(C)
    Temperature regulating range 0-35 degree(C), 25-70 degree(C), 40-100 degree(C), 60-130 degree(C), 70-150 degree(C)
    Capillary length 2m
    Material Body Bronze
    Valve disc PTFE
    Thermal bulb Copper (Nickel chrome plated)

    Remarks

    * Max. pressure is 1.0 MPa for steam service
    * Standard capacity length is 2m. 3m or 5m options are available.

    Dimensions and Weights
    Size L (mm) H (mm) Weight (kg)
    15A(1/2) 75 318.5 2.7
    20A(3/4) 80 318.5 2.8
    25A(1) 90 318.5 3
