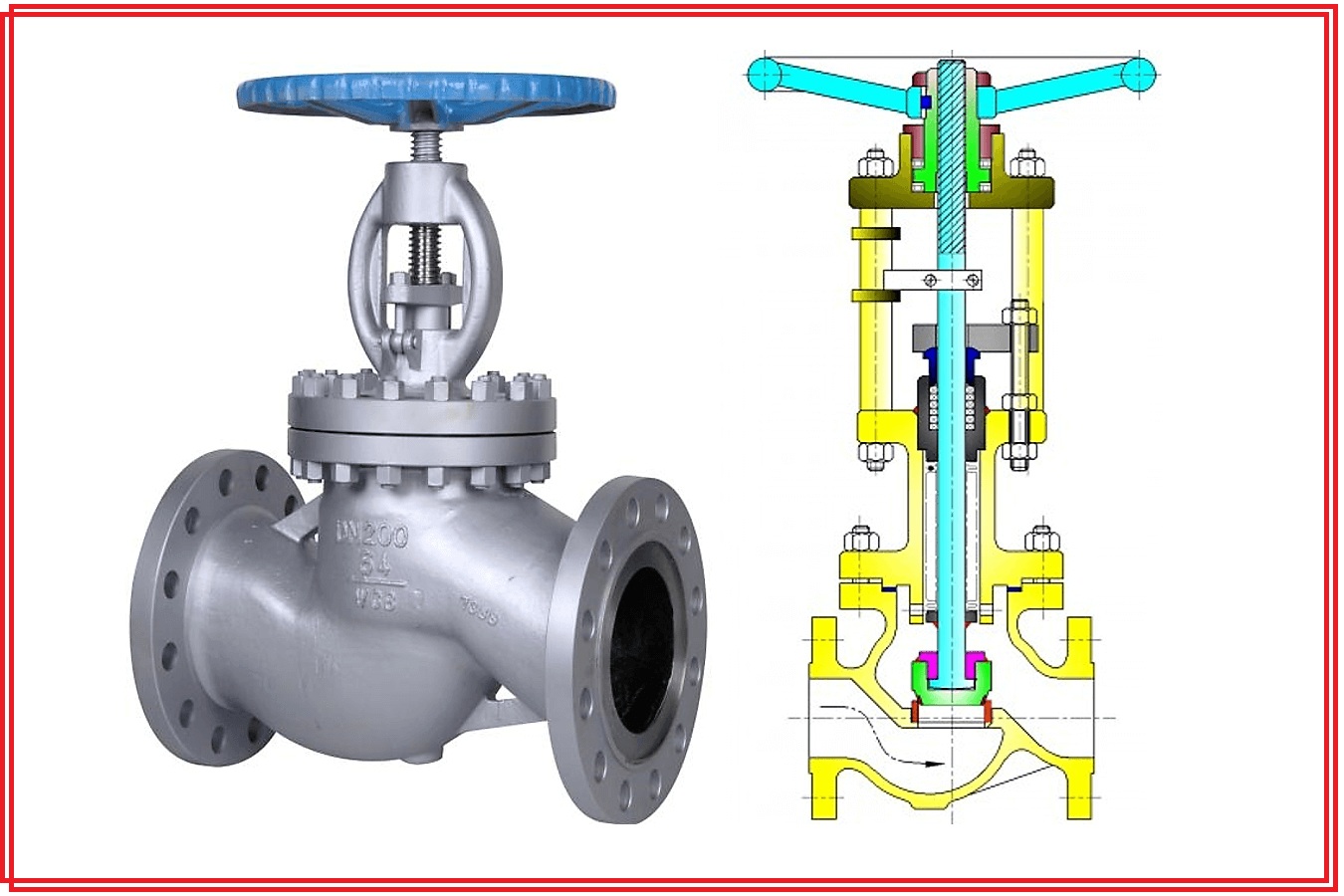

Globe Valve Working Principle – Precise Flow Control Mechanism

📝 Introduction

A globe valve is a widely used industrial valve in systems such as steam, gas, water, oil, and chemical pipelines, thanks to its ability to accurately regulate flow and provide high sealing performance.

Unlike gate or ball valves, a globe valve operates based on vertical movement of the disc to control flow rate, making it highly effective for throttling applications.

---

What Is a Globe Valve?

A globe valve is designed to:

• Start or stop flow
• Regulate flow rate
• Control pressure

👉 It is one of the most commonly used control valves in industrial systems.

---

Globe Valve Working Principle

🔧 Basic Operating Mechanism

The globe valve operates based on:
👉 Linear up-and-down movement of the disc driven by the valve stem

• Rotating the handwheel → moves the stem
• The stem raises or lowers the disc

👉 The disc moves closer or farther from the seat, changing the flow area

---

🔄 Opening Process

• Turn the handwheel counterclockwise
• The stem rises
• The disc lifts away from the seat

👉 Fluid begins to pass through the gap between disc and seat

📌 Flow rate increases gradually with opening level
👉 This allows precise flow control

---

🔒 Closing Process

• Turn the handwheel clockwise
• The stem moves downward
• The disc presses tightly against the seat

👉 Flow is completely blocked
👉 Ensures high sealing performance

---

⚙️ Flow Control Mechanism

👉 Key feature of globe valves:

• Disc does not open abruptly
• Instead, it moves gradually

👉 As the disc approaches the seat:

• Flow area decreases
• Flow rate reduces

👉 As the disc lifts:

• Flow area increases
• Flow rate increases

📌 Enables precise throttling from 0–100% flow control

---

Internal Flow Principle of a Globe Valve

👉 Unlike gate valves:

• Flow inside a globe valve changes direction (typically Z-shaped or S-shaped path)
• This creates resistance and pressure drop

📌 Characteristics:

• Excellent throttling ability
• Higher pressure loss

---

Operating Stages

1. Fully Closed

• Disc tightly seated
• No flow

2. Partially Open (Optimal Control Range)

• Flow is regulated
• Precise control achieved

3. Fully Open

• Maximum flow
• But still with pressure loss

---

Working Principle by Globe Valve Types

1. Y-Type Globe Valve

• More streamlined flow path

👉 Principle:

• Reduced pressure loss
• Higher efficiency

---

2. Z-Type (Standard Globe Valve)

• Flow changes direction significantly

👉 Principle:

• Best flow control
• Higher pressure drop

---

3. Control Globe Valve

• Equipped with actuator

👉 Principle:

• Automatic flow adjustment based on signals

---

Advantages of Globe Valve Principle

✅ Excellent flow regulation
✅ High sealing performance
✅ Stable operation
✅ Suitable for steam systems

---

Disadvantages

❌ High pressure drop
❌ Flow restriction inside valve body
❌ Not suitable for high-flow pipelines

---

Applications

Globe valves are widely used in:

• Steam systems (boilers)
• Power plants
• Compressed air systems
• Oil & gas industry
• Chemical plants
• Industrial processing systems

---

When Should You Use a Globe Valve?

👉 Recommended when:

• Precise flow control is required
• Pressure regulation is needed
• Steam applications

👉 Not recommended when:

• High flow capacity and low pressure loss are required

---

Comparison with Other Valve Principles

---

Conclusion

The working principle of a globe valve is based on:

👉 Vertical movement of the disc to regulate fluid flow

This makes it one of the best choices for:

• Steam systems
• Flow control applications
• Pressure regulation systems
