Butterfly Valve Working Principle – Fast Operation and Efficient Flow Control Mechanism

📝 Introduction

A butterfly valve is one of the most widely used industrial valves, commonly applied in water systems, HVAC, fire protection (PCCC), water treatment plants, chemical processing, and light industrial applications.

Its key advantages include:
👉 Compact design, fast operation, low cost, and easy automation

---

What Is a Butterfly Valve?

A butterfly valve is a type of valve that uses:
👉 A circular disc that rotates around a central shaft to control flow

• When the disc is parallel to the flow → valve is open
• When the disc is perpendicular to the flow → valve is closed

---

Other Names:

• Butterfly Valve
• Wafer Valve
• Flow Control Butterfly Valve

---

Butterfly Valve Structure

A butterfly valve consists of the following main components:

---

1. Valve Body

• Main housing of the valve
• Connects to the pipeline

Materials:

• Cast iron
• Stainless steel
• Carbon steel
• Plastic

---

2. Disc

• Main flow control element
• Circular disc shaped like a butterfly wing

👉 Determines flow capacity

---

3. Stem

• Transfers rotational movement
• Connects actuator to disc

---

4. Seat (Sealing Ring)

• Ensures tight sealing between disc and body

Materials:

• EPDM
• NBR
• PTFE
• Viton

---

5. Actuator

• Manual lever
• Gear operator
• Electric actuator
• Pneumatic actuator

---

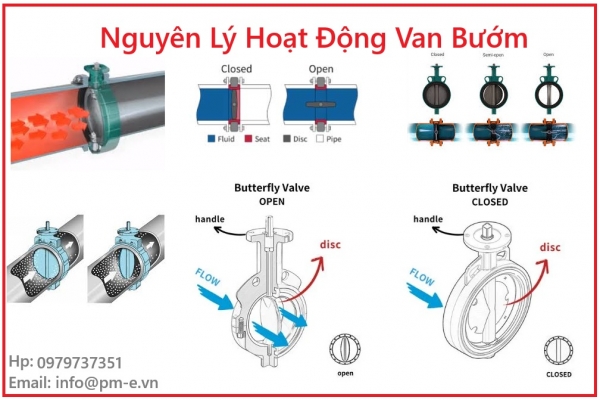

Butterfly Valve Working Principle

🔧 Basic Operating Mechanism

A butterfly valve operates based on:
👉 90-degree rotation of the disc around the shaft

• The stem rotates → the disc rotates accordingly

---

🔄 Open Position

• The disc is parallel to the flow direction
• Fluid passes through freely

👉 Flow is minimally restricted

📌 Characteristics:

• Low pressure drop
• High flow capacity

---

🔒 Closed Position

• The disc rotates perpendicular to the flow
• Presses against the seat

👉 Flow is completely blocked

📌 Characteristics:

• Good sealing performance
• Quick shut-off

---

⚙️ Throttling Operation

• Disc is partially open (0°–90°)

👉 Controls flow rate

📌 Note:

• Suitable for regulation but less precise than globe valves

---

Flow Characteristics

👉 When open:

• Disc remains inside the flow path
• Causes partial obstruction

📌 Result:

• Slight pressure loss
• Still efficient for large pipelines

---

Types of Butterfly Valves and Working Principles

1. Wafer Type Butterfly Valve

• Installed between two flanges

👉 Principle:

• Disc rotates within a compact body

---

2. Lug Type Butterfly Valve

• Has threaded lugs for bolting

👉 Principle:

• Allows one-side pipeline removal

---

3. Flanged Butterfly Valve

• Flanged connection

👉 Principle:

• Suitable for high-pressure systems

---

4. Actuated Butterfly Valve (Electric/Pneumatic)

• Automated operation

👉 Principle:

• Motor or air pressure rotates the shaft

---

Advantages of Butterfly Valves

✅ Fast 90° operation
✅ Compact design
✅ Cost-effective
✅ Easy automation
✅ Suitable for large pipe sizes

---

Disadvantages

❌ Flow obstruction exists
❌ Not fully tight like ball valves
❌ Not suitable for very high pressure applications

---

Applications

Butterfly valves are widely used in:

• Water supply systems
• HVAC / Chiller systems
• Fire protection systems
• Water treatment plants
• Food processing industry
• Light chemical industry

---

When Should You Use a Butterfly Valve?

👉 Recommended when:

• Fast opening/closing is required
• Large diameter pipelines are used
• Cost efficiency is important

👉 Not recommended when:

• Absolute tight sealing is required
• Very high pressure systems are involved

---

Comparison with Other Valve Principles

---

Conclusion

The working principle of a butterfly valve is simple:

👉 Rotate the disc 90° to open or close flow

Thanks to this simple mechanism, butterfly valves are ideal for:

• Water systems
• HVAC systems
• Large-scale industrial pipelines
